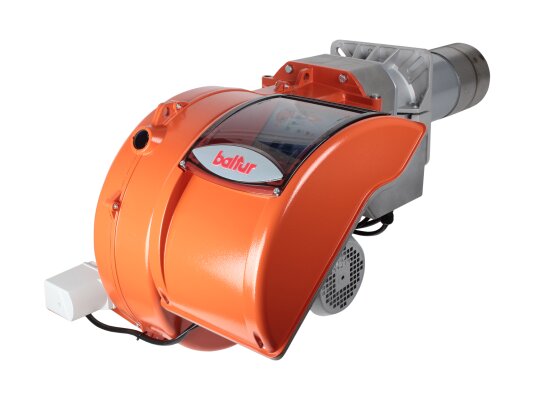

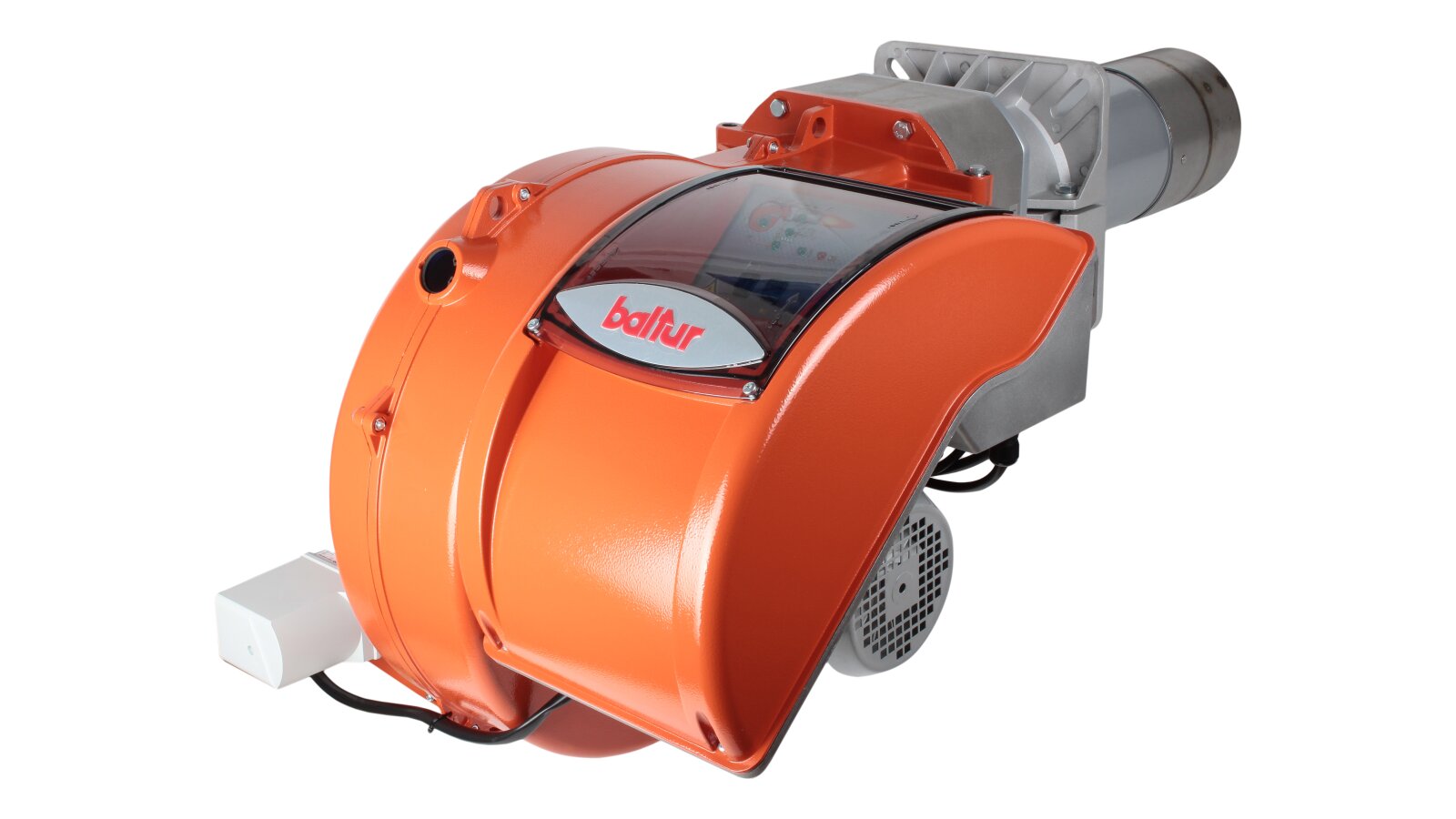

Baltur TBG 85 P BM415A20C-R6/4 gas burner

Baltur17480010-19990513

Alternative Part Number

Baltur 18480010-19990513

Baltur TBG 85 P BM415A20C-R6/4 gas burner, art: 17480010-19990513

About product

Fuel type gasolineBurner type two-stageFlame pipe diameter 180 mmRamp gas pressure from 2.5 to 31 mbarCounterpressure from 0 to 10 mbarThe length of the flame pipe 400 mm

Burners for heating boilers

Characteristics

Manufacturer Part Number: 17480010-19990513Fuel type: gasolineBurner type: two-stageFlame pipe diameter: 180 mmRamp gas pressure: from 2.5 to 31 mbarCounterpressure: from 0 to 10 mbarThe length of the flame pipe: 400 mmNoise level: 73 dBElectrical power consumption: 1,200 WElectric motor: 1,100 WGas consumption: from 17.1 to 85 nm³/hBurner power: from 170 to 850 kWDegree of protection: IP44Included accessories: with a combustion head and with a gas rampVoltage: 380 VConnection type: Rp 1 1/2"Flame pipe type: standard

Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication

This product is from the collections

Burners for heating boilers

Baltur

Brand

Italy — home of the brand

Packaging information

Weight, kg:: 57
Width, cm:: 64.5
Height, cm:: 52
Length, cm:: 123
