Description

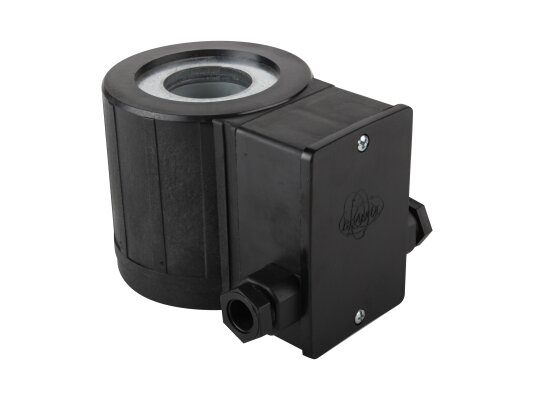

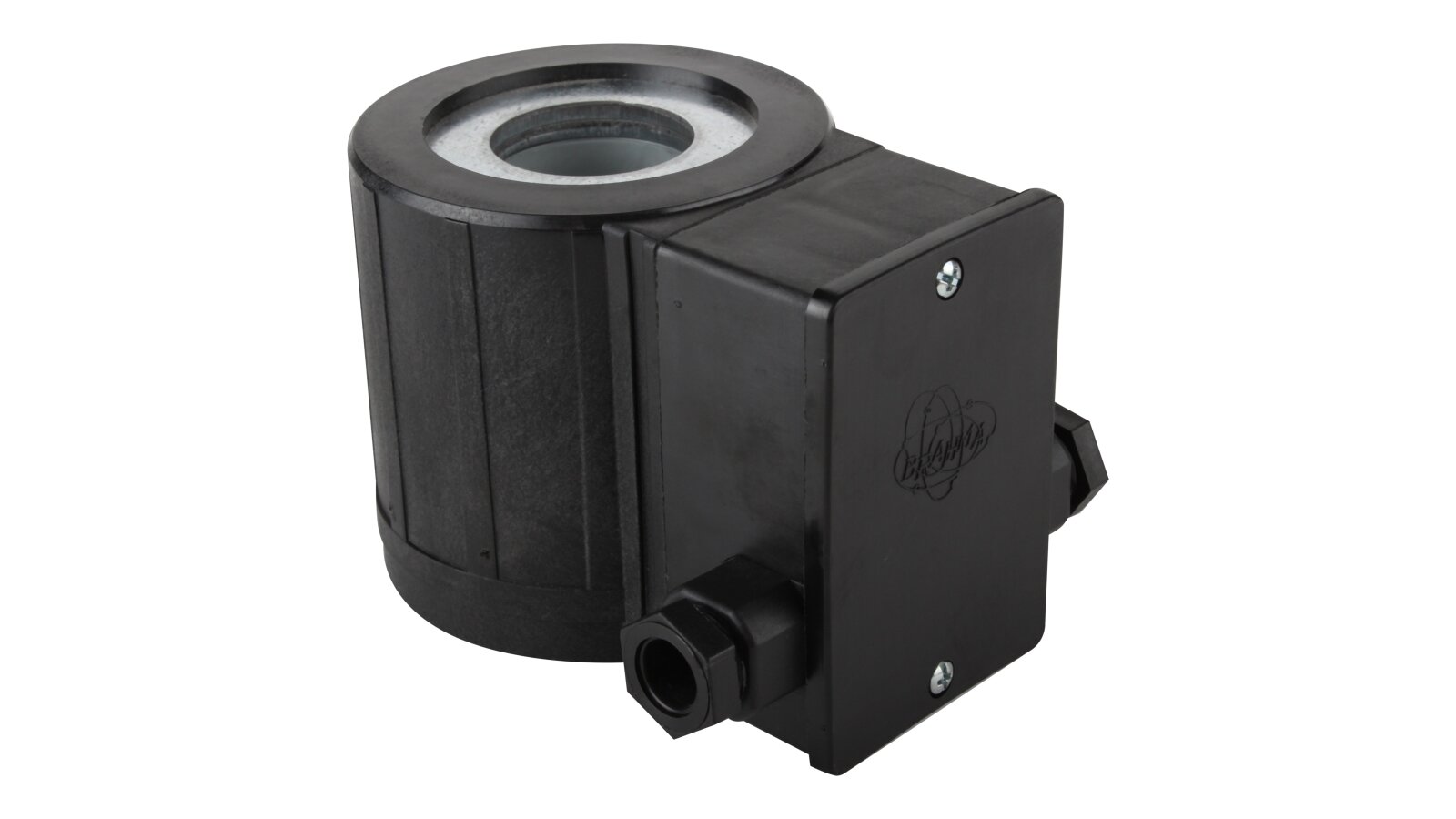

The Brahma BE8*GMO 18813014 solenoid is installed in a gas solenoid valve to create an automated gas supply control system for combustion and safe, efficient operation of the boiler / heater. In terms of protection against dust and moisture, the device meets the IP54 standard. It is powered by alternating current, but thanks to the built-in rectifier circuit, the coil operates on direct current.
Main parameters and features:
- power supply from 230 V network, frequency 50-60 Hz;
- built-in rectifier for DC operation;
- power consumption – 33 W;
- protection against dust, splashes from any side, IP54 class;
- connection to the terminal block;
- reliability, durability of the design;
- operation in external temperatures -10...+60 °C;
- simple installation and connection.
Installation location
The control coil is used to complete gas solenoid valves of the EG25 size.
Brahma ВЕ.. series models
We offer for sale gas valve coils of the Brahma ВЕ.. series with AC / DC power supply, a built-in rectifier, for completing various models of gas valves. Coils of this series differ in size, power consumption, dust and moisture protection level, and type of electrical connection.
