Description

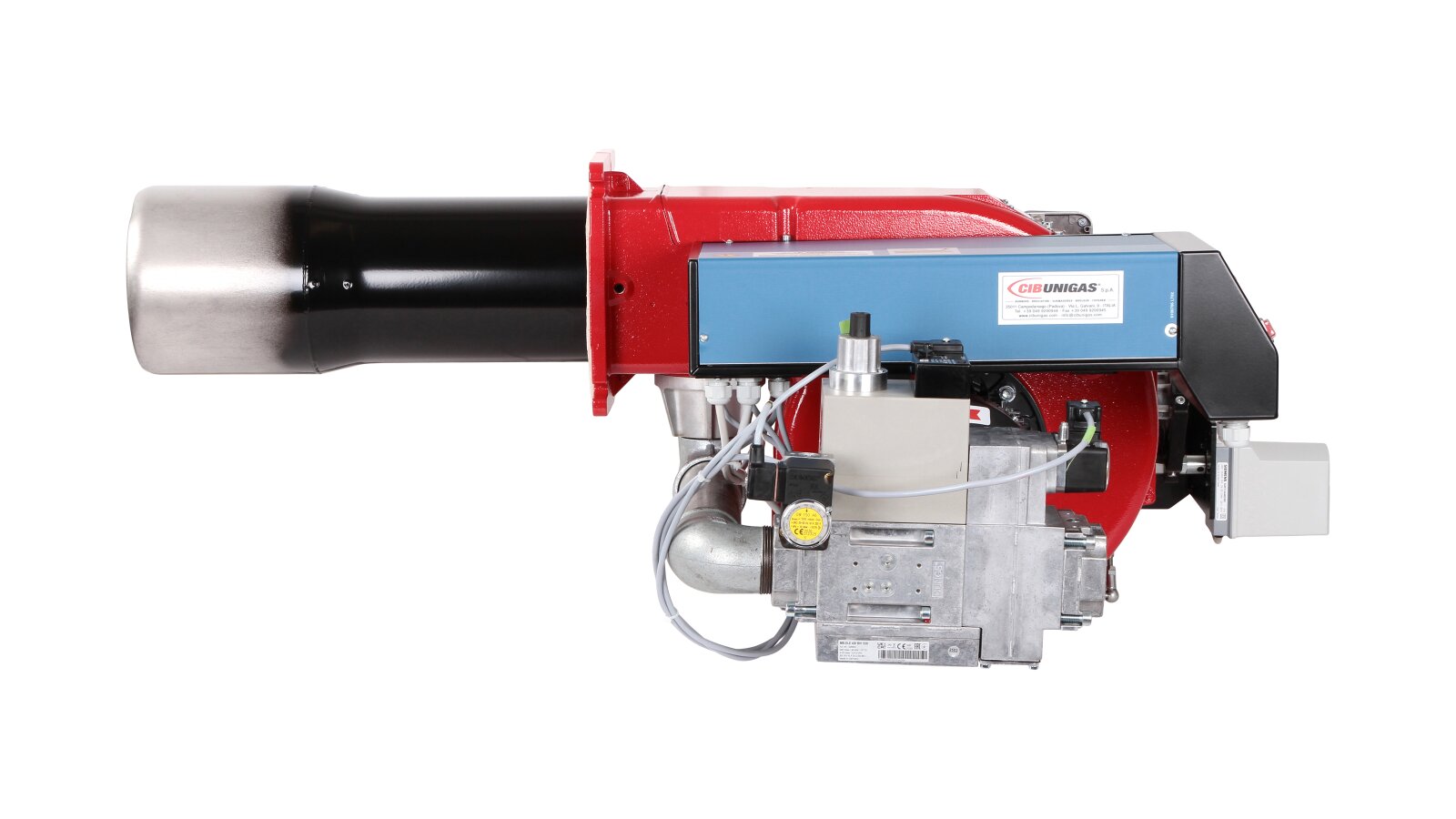

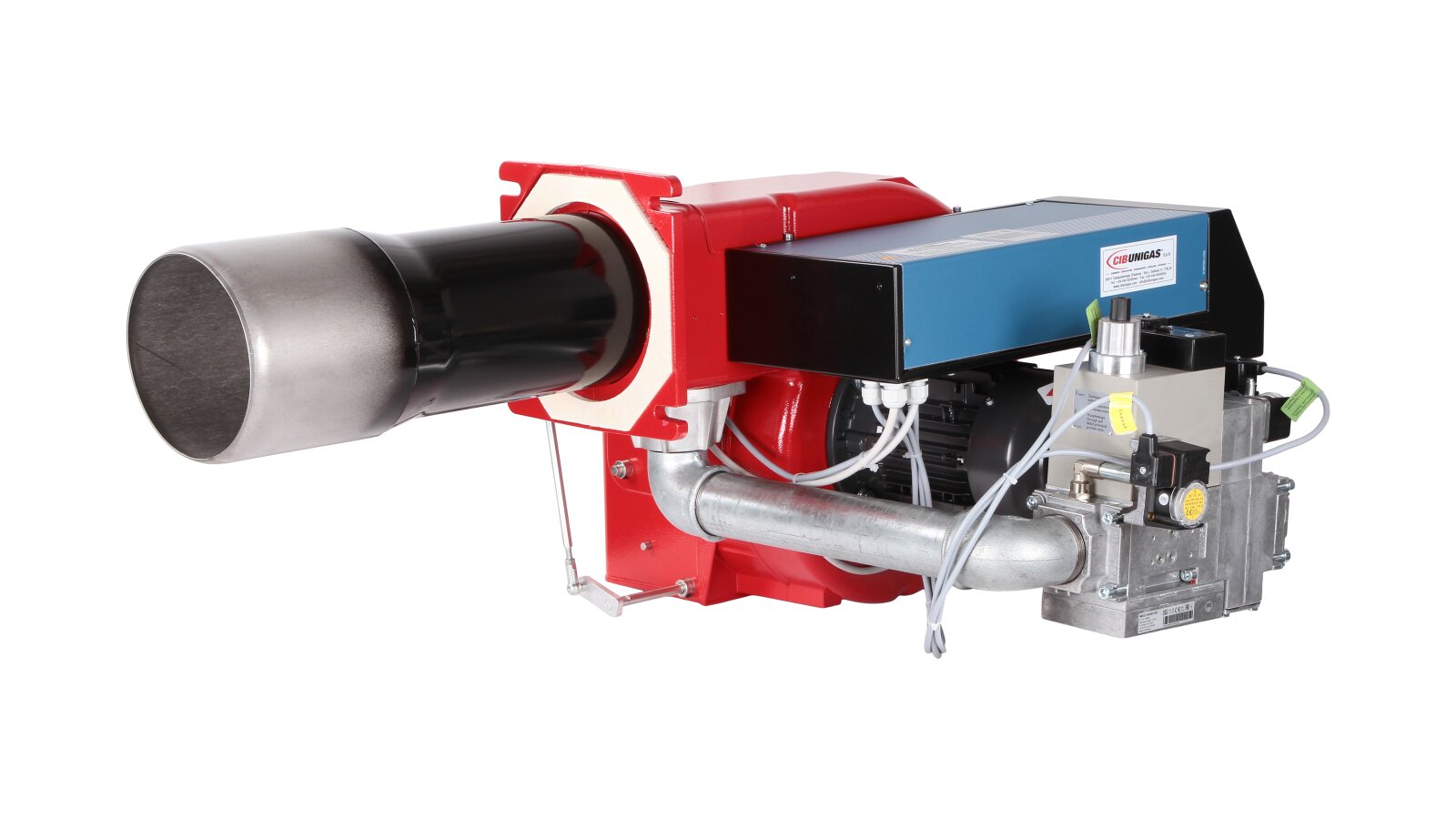

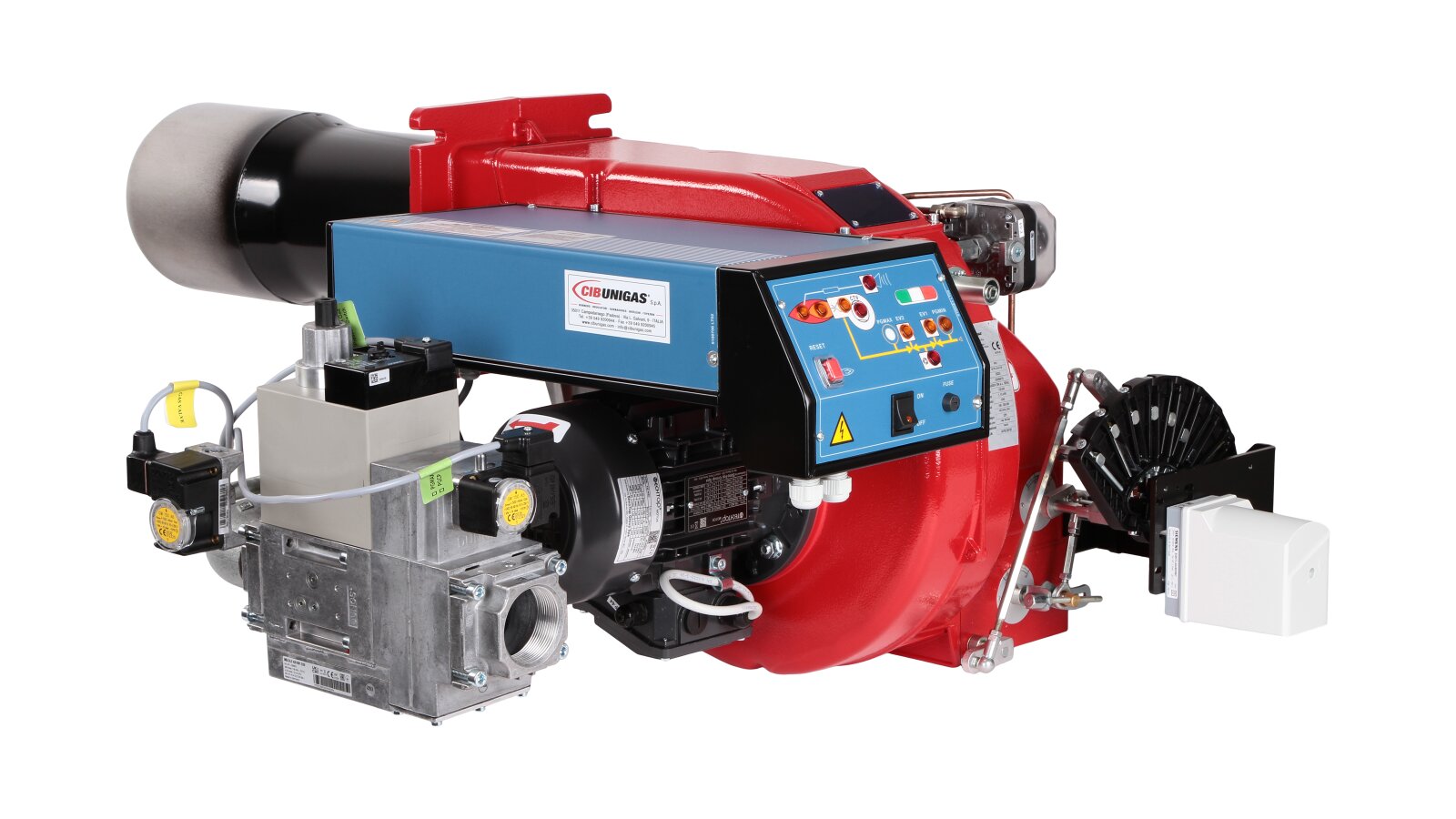

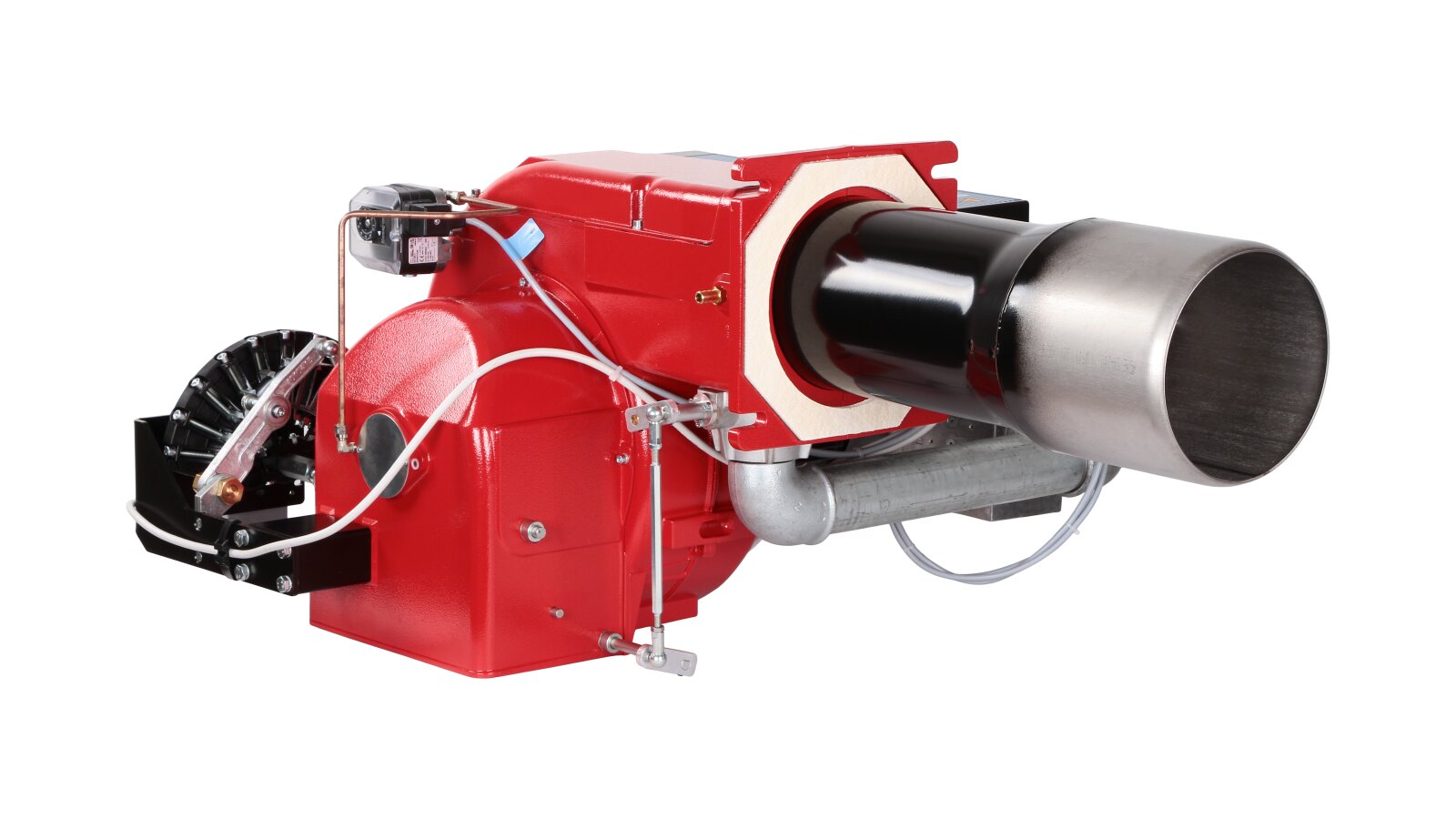

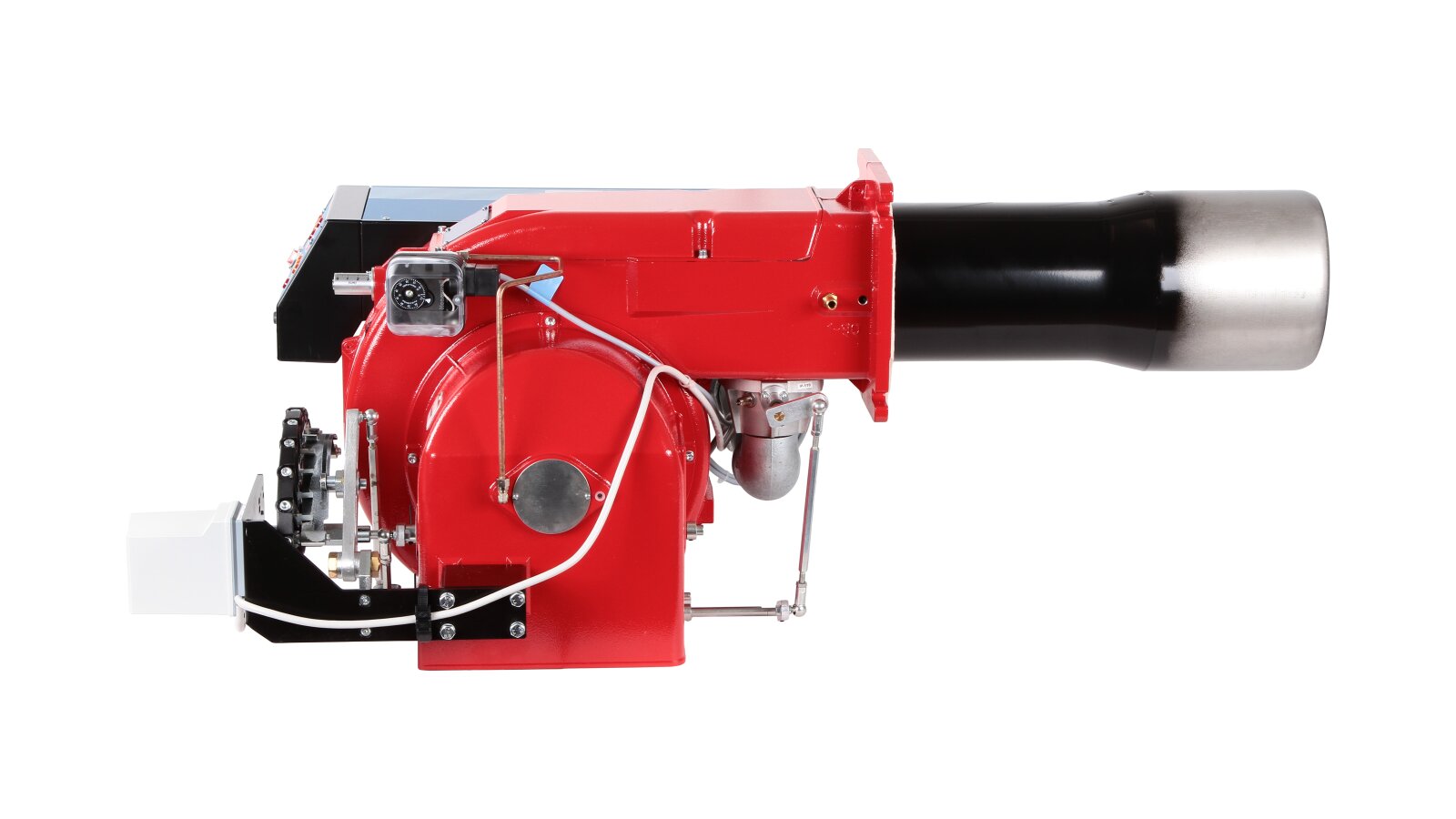

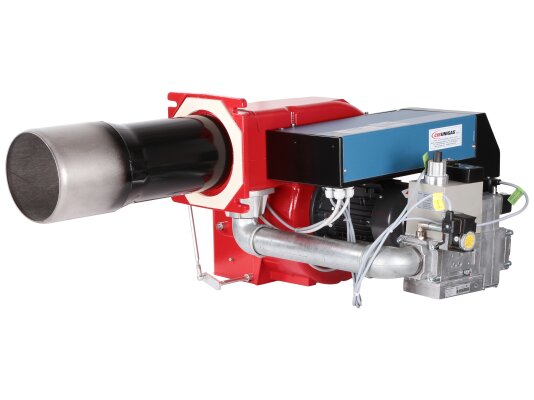

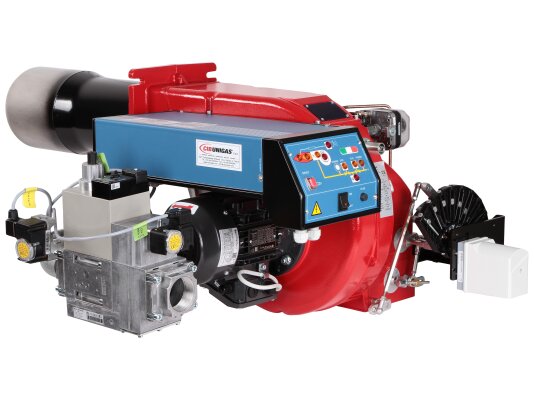

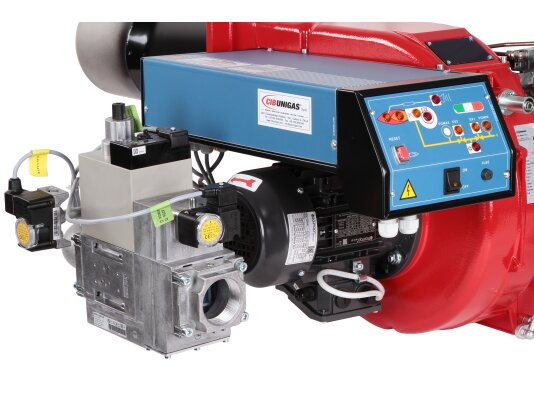

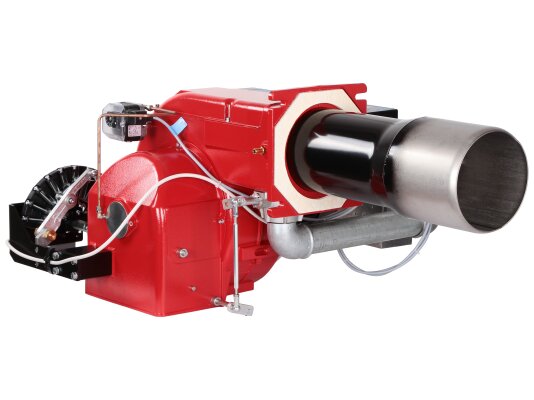

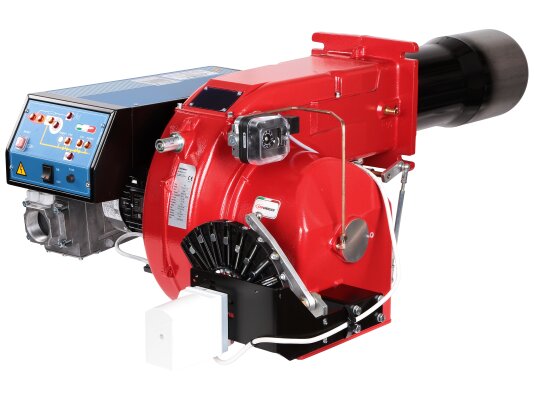

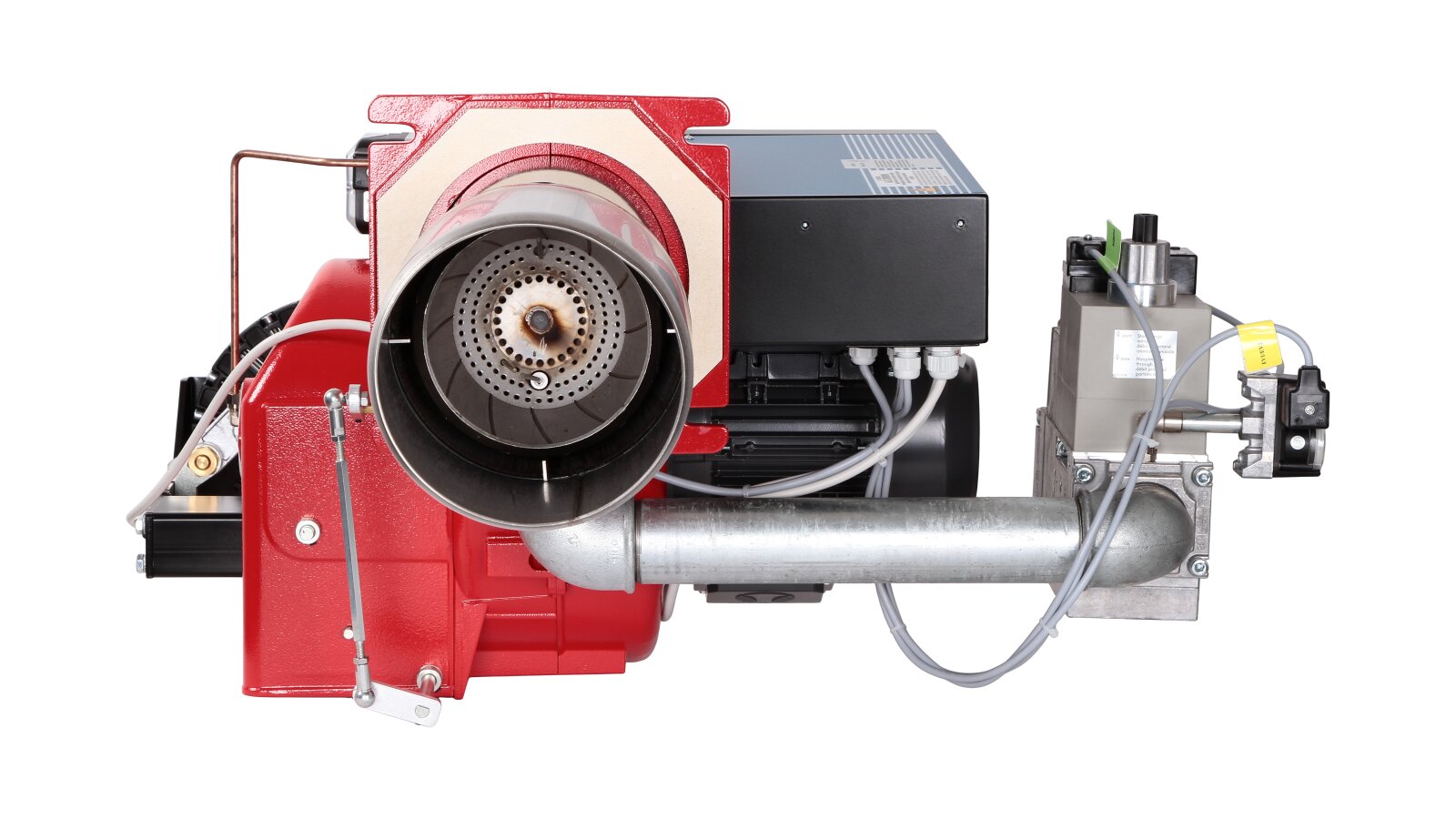

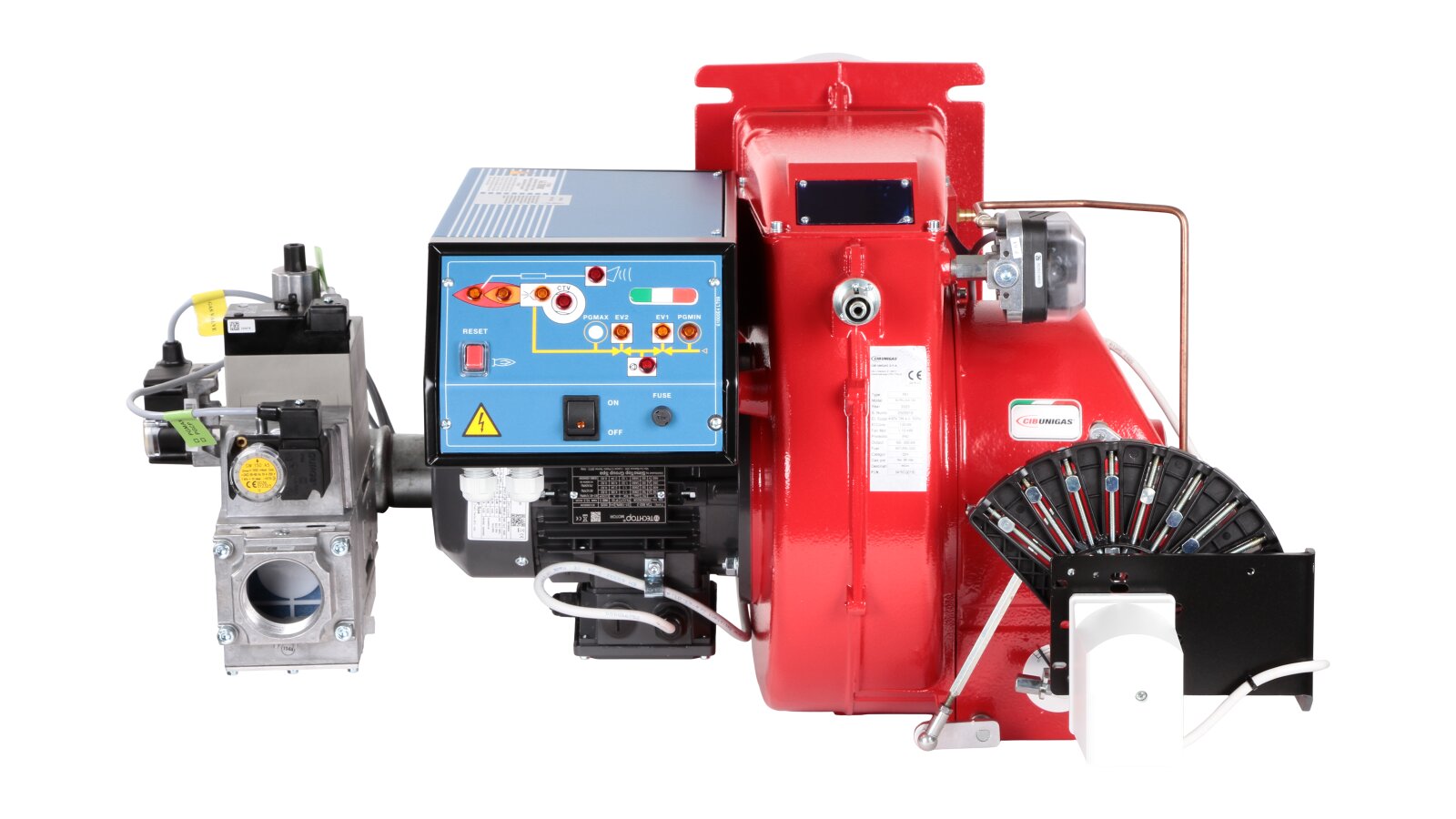

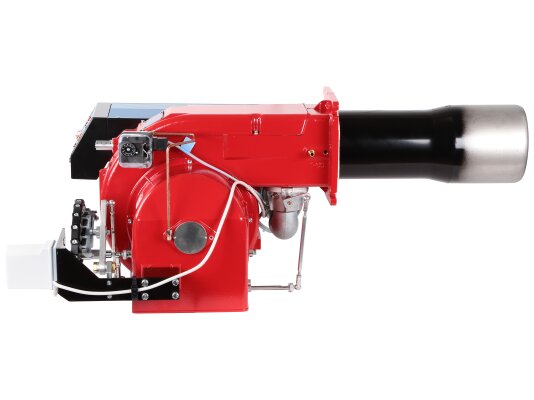

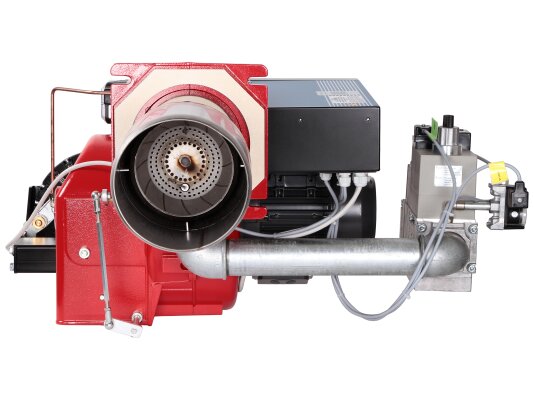

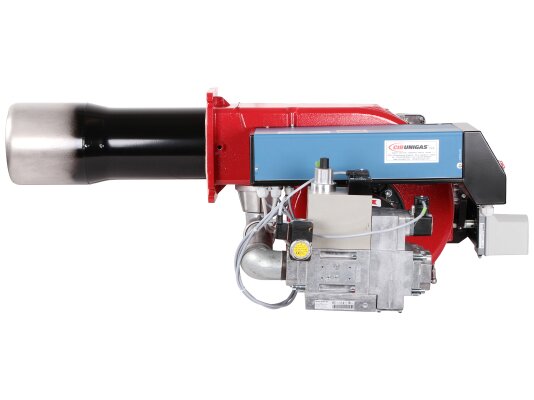

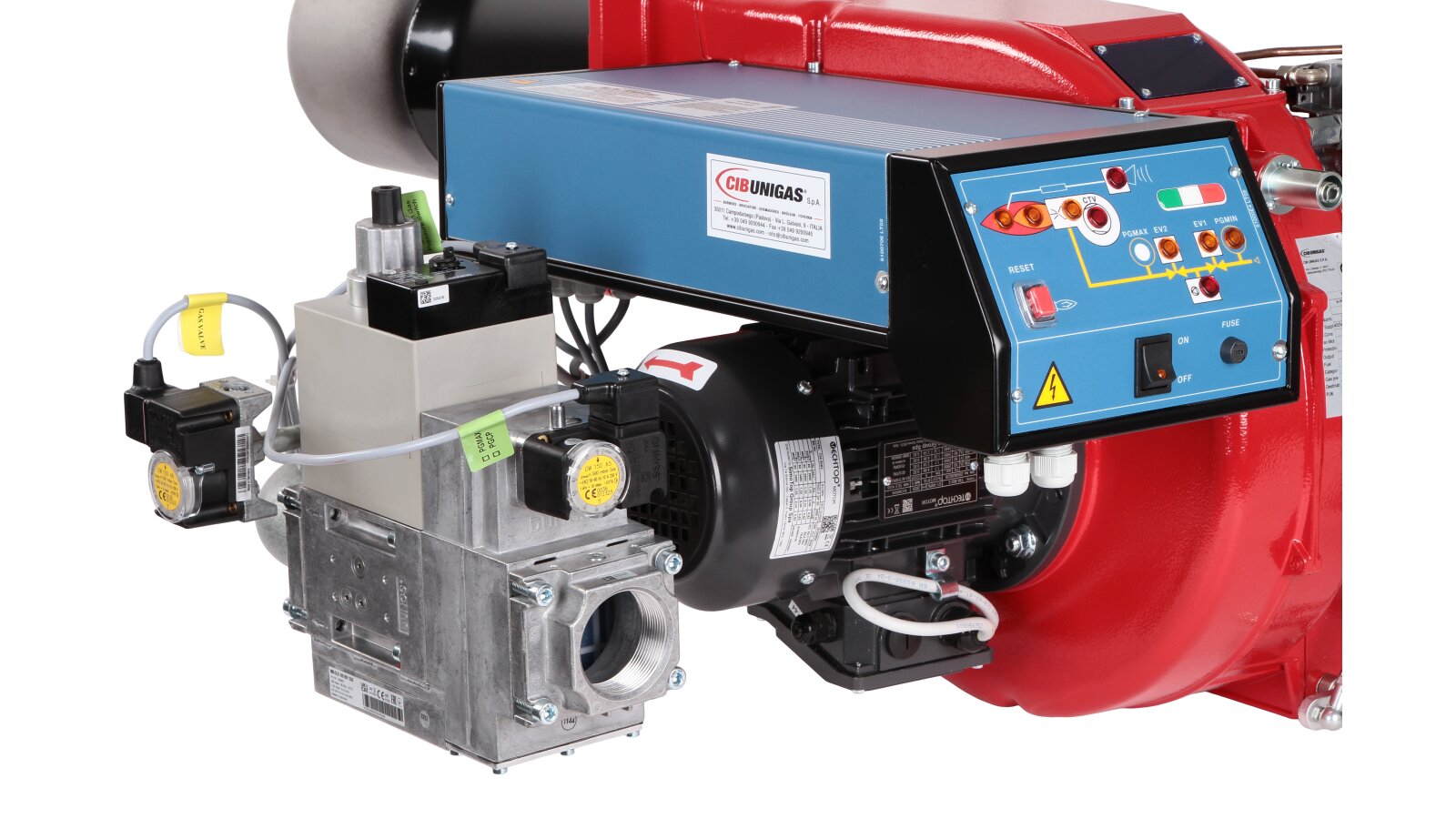

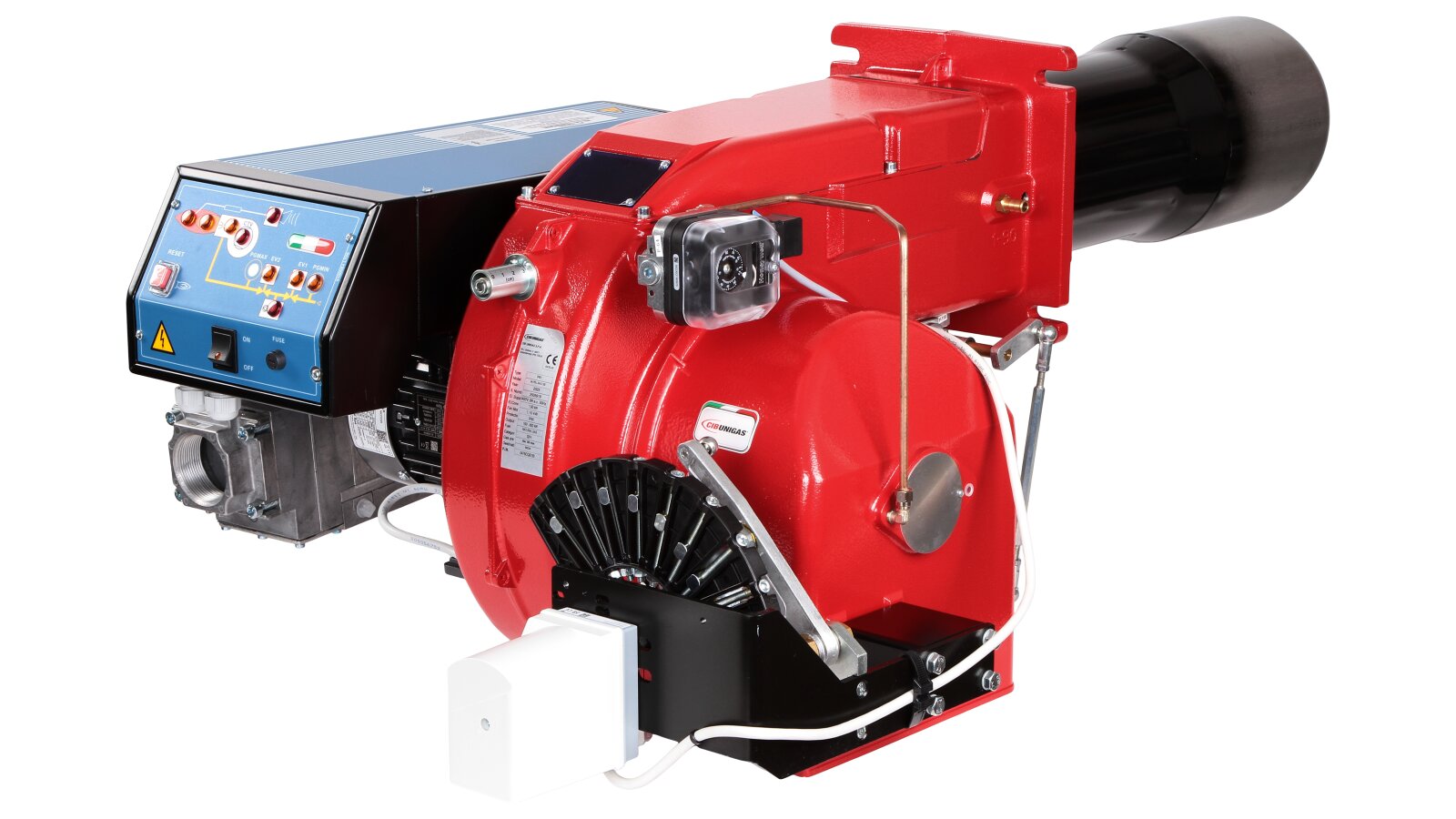

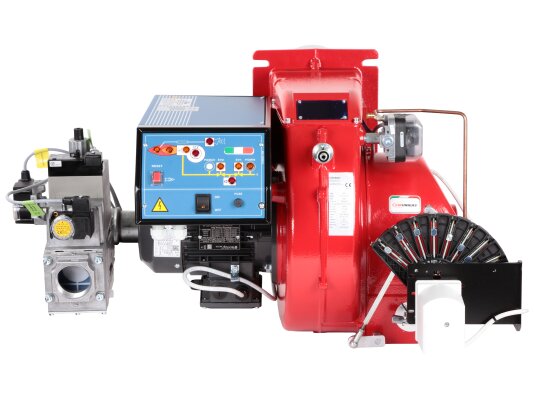

Modification of the CIB Unigas gas burner operating on natural gas (methane), with progressive regulation, long nozzle, with two valves and gas maximum pressure relay. Supplied in standard execution, gas ramp diameter Rp 2".

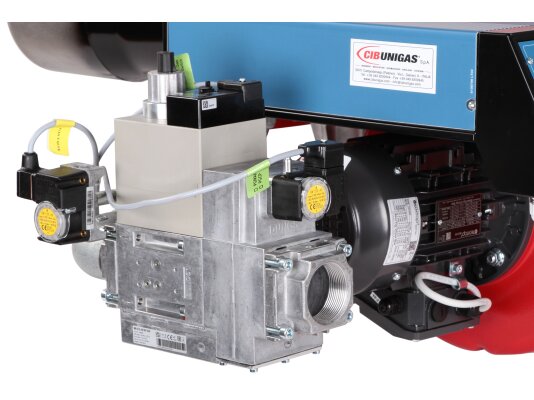

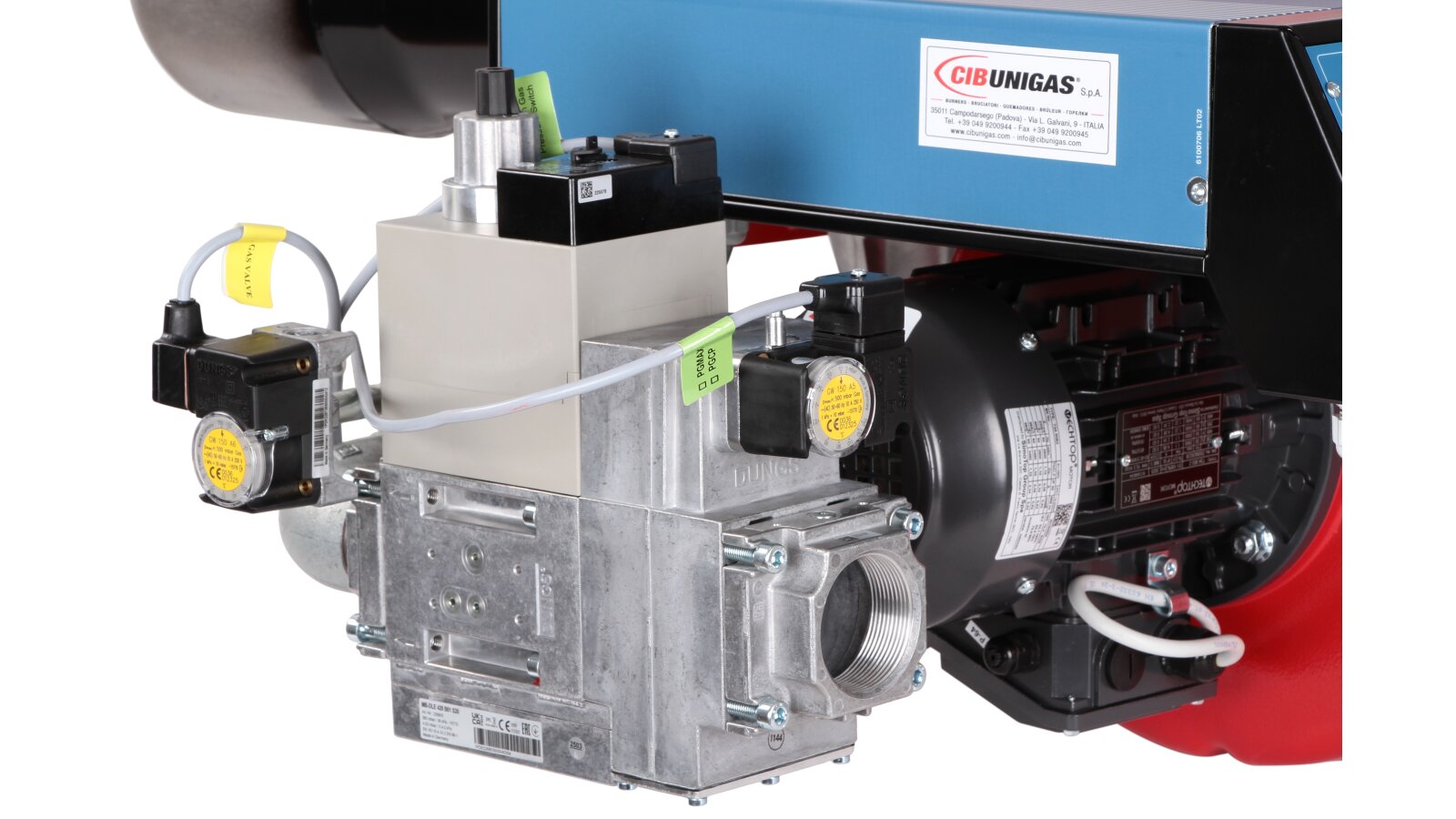

7 = 2 valves + gas maximum pressure relay.
Characteristics

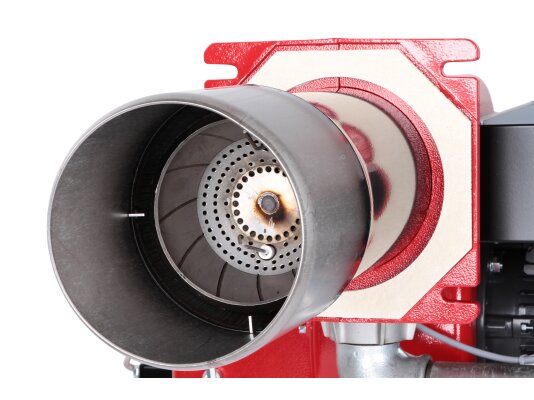

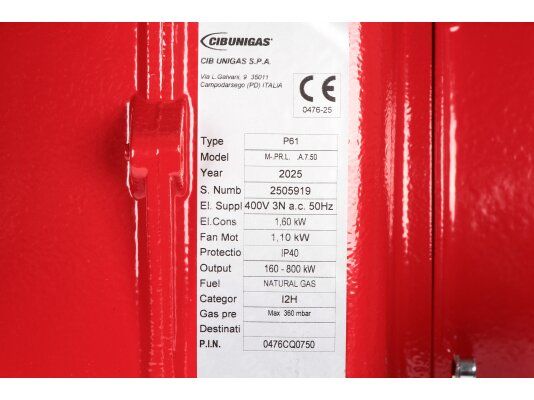

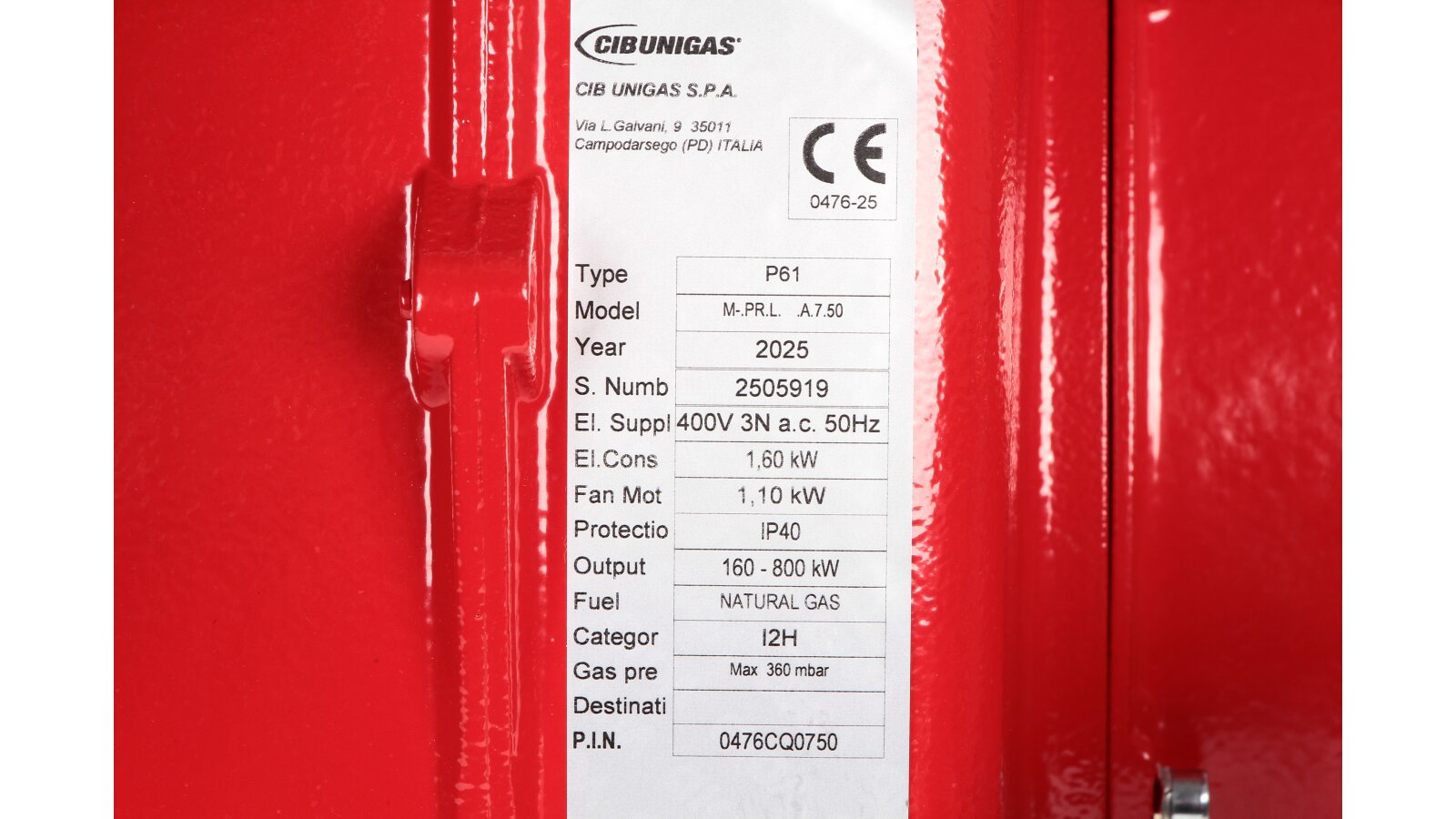

Fuel type: gasolineFlame pipe diameter: 184 mmRamp gas pressure: from 4.8 to 24 mbarCounterpressure: from 0 to 7 mbarThe length of the flame pipe: 433 mmOperating temperature: from -10 to 50 °CNoise level: 80 dBElectrical power consumption: 1,600 WElectric motor: 1,100 WGas consumption: from 17 to 84.7 nm³/hBurner power: from 160 to 800 kWFlame pipe type: extendedDegree of protection: IP40Included accessories: with a gas ramp and with a combustion headVoltage: 220 V / 380 VConnection type: Rp 2"Burner type: progressive-mechanical
Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publicationAnalogues
