Description

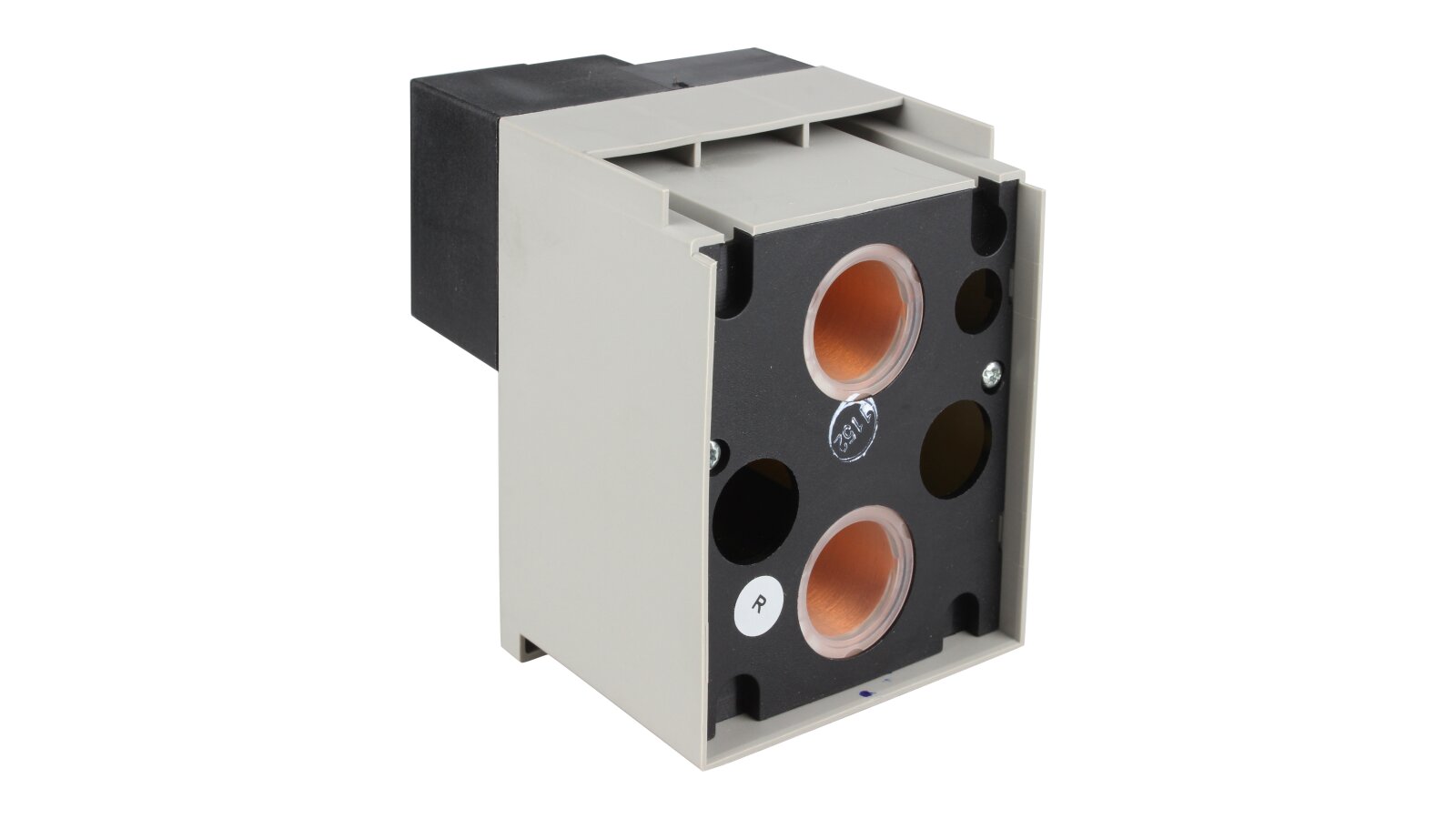

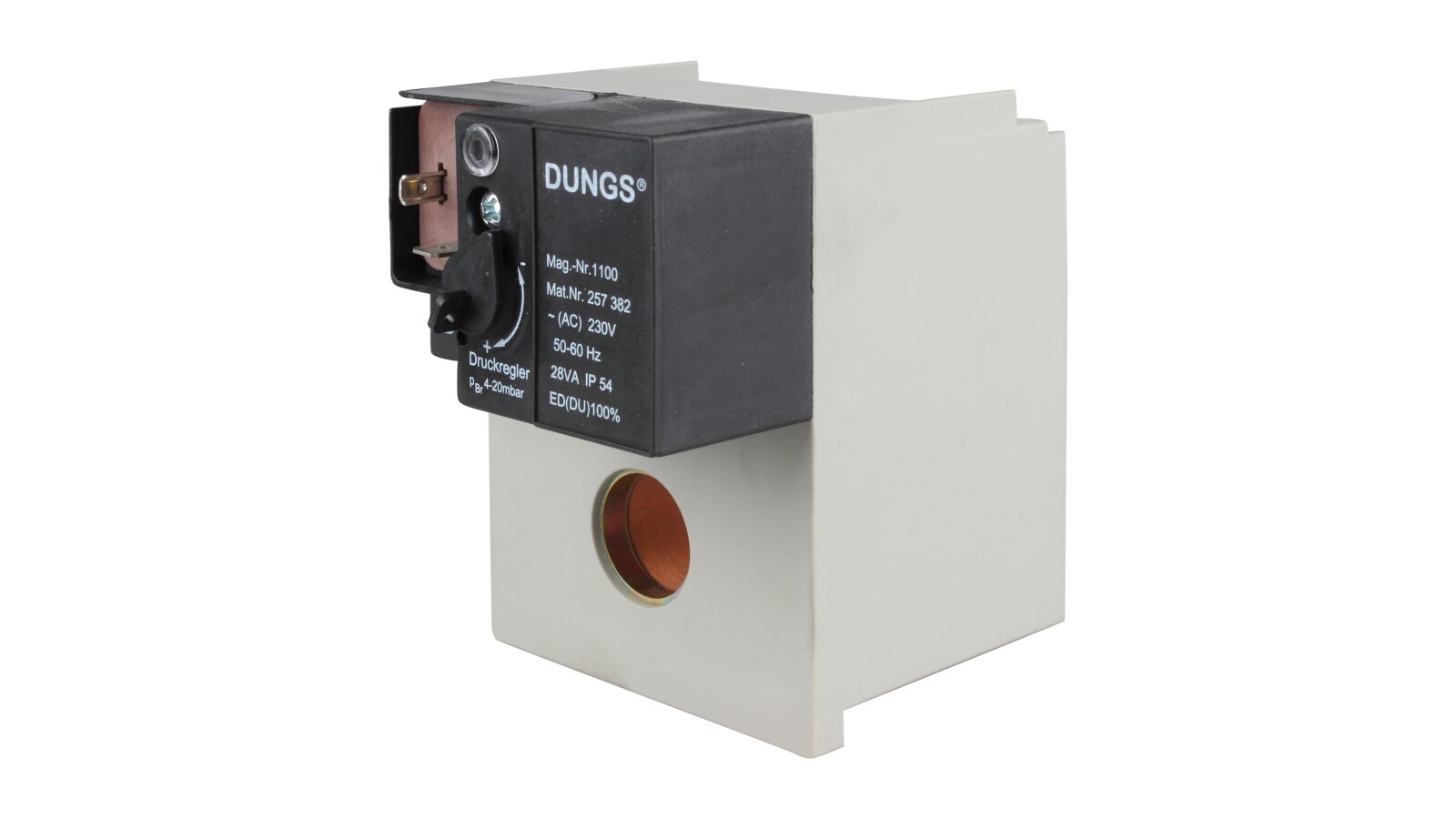

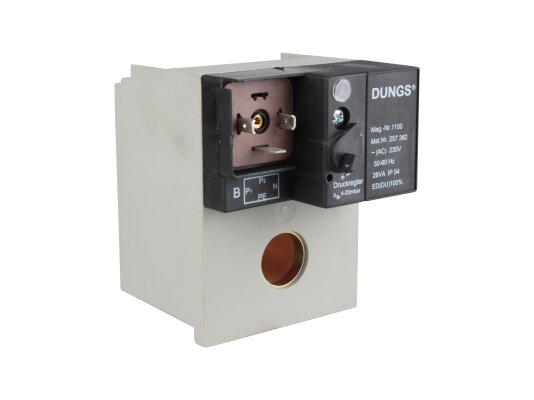

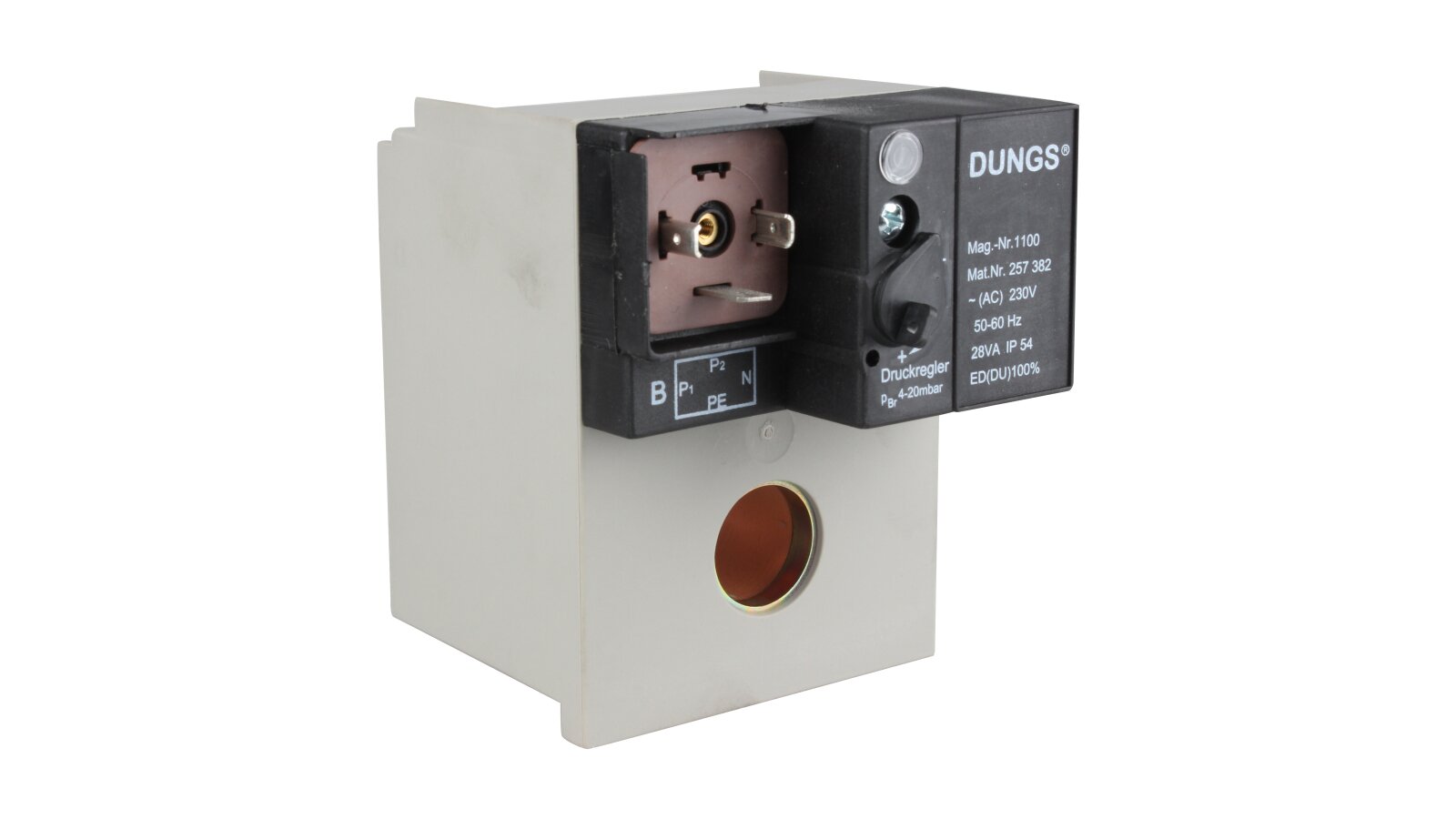

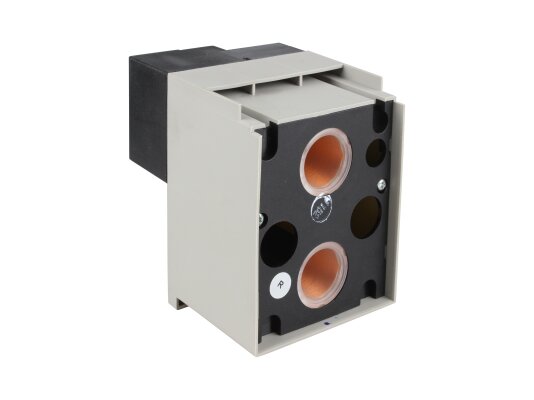

The Dungs 1100 solenoid coil, art: 240115, is used in gas supply automation systems for combustion to ensure efficient and safe operation of gas equipment. It features a combined design, compact dimensions, high reliability, and dust and moisture protection. Two solenoid coils of VS and VA gas valves are combined in one housing.
Main characteristics and features:
- economical energy consumption, power 28 W;
- operation from a stationary power grid of 230 V, 50-60 Hz;
- duty cycle – 100%;
- dust and moisture protection of the housing of class IP 54;
- 2 electromagnetic coils in a small housing;
- mounting in the system vertically or in other positions with a magnet on top;
- heat-resistant, shockproof combined type design;
- quick and reliable connection;
- stable operation in a wide temperature range;
- maintenance-free, long service life.
Application area
Gas valve coils Dungs 1100 are used to equip gas multi-blocks MB-DLE 407. Due to the electromagnetic field, they actuate the shut-off valves. They allow you to create a system for automatic control and regulation of gas flows.
Dungs catalog
The ANKAS catalog presents spare parts for gas valves for burners, including control coils with various technical and operational characteristics. All equipment has been tested, meets European safety standards.
