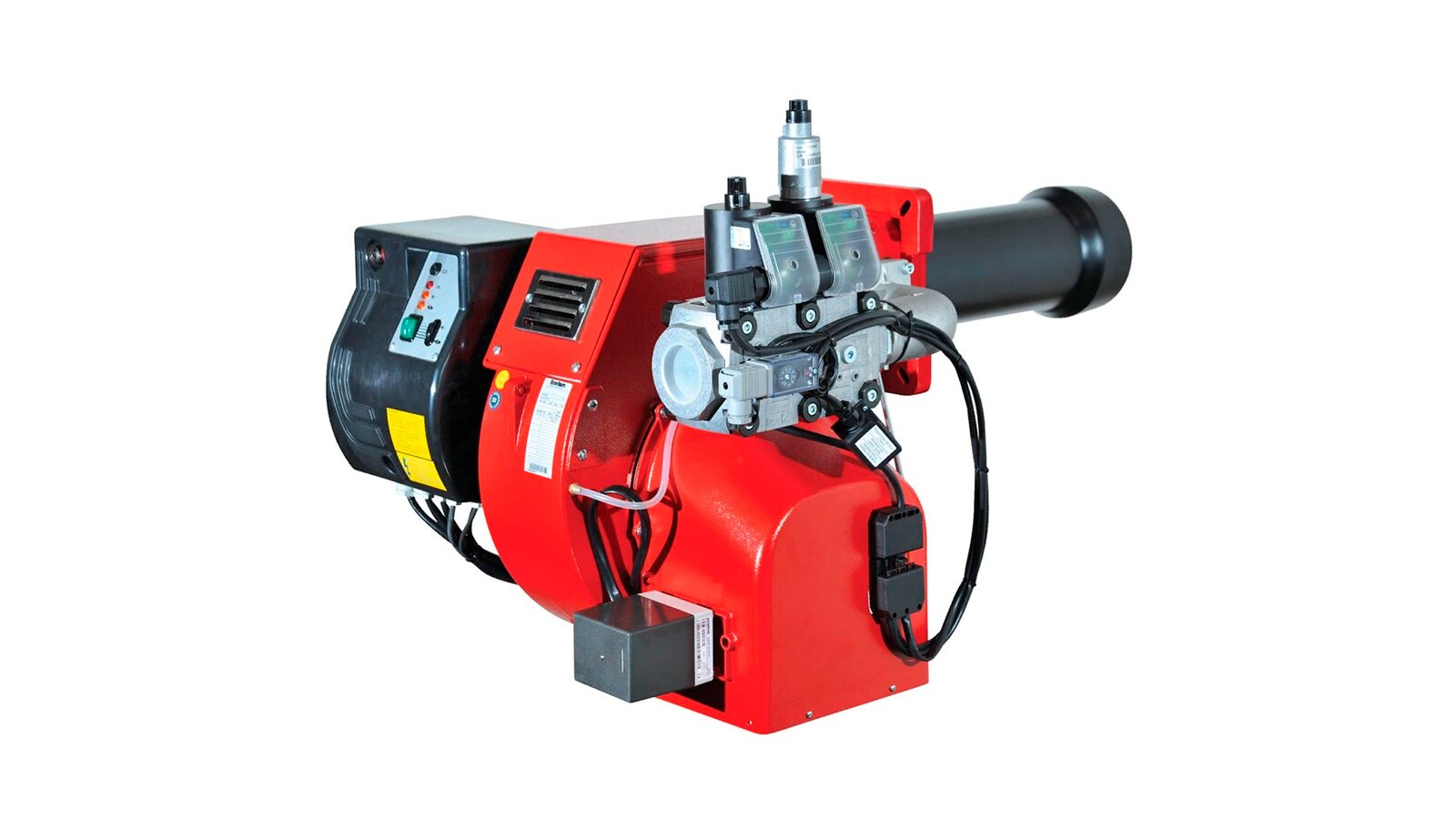

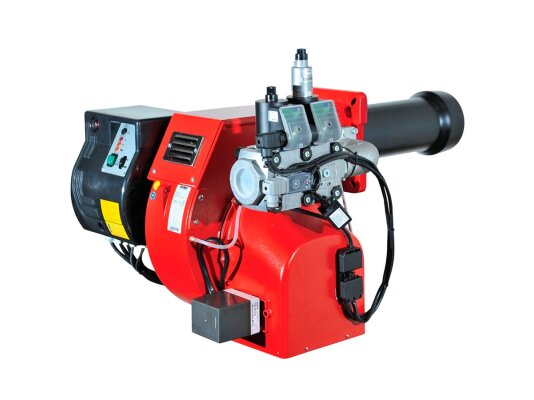

Ecoflam BLU 1200.1 PAB Low NOx TL MB-DLE 420 gas burner

Ecoflam3143995-3141847

About product

Fuel type gasolineFlame pipe diameter 200 mmRamp gas pressure from 11 to 32 mbarCounterpressure from 0 to 8.5 mbarThe length of the flame pipe 459 mmOperating temperature from -10 to 60 °C

Burners for heating boilers

Characteristics

Manufacturer Part Number: 3143995-3141847Fuel type: gasolineFlame pipe diameter: 200 mmRamp gas pressure: from 11 to 32 mbarCounterpressure: from 0 to 8.5 mbarThe length of the flame pipe: 459 mmOperating temperature: from -10 to 60 °CNoise level: 80 dBElectrical power consumption: 2,700 WElectric motor: 2,200 WBurner power: from 290 to 1,100 kWFlame pipe type: extendedBurner type: two-stageDegree of protection: IP40Included accessories: with a combustion head / with a gas rampVoltage: 220 V / 380 VConnection type: Rp 2"

Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication

Analogues

Ecoflam BLU 1200.1 PAB Low NOx TC MB-DLE 420 gas burner
Price: PHP 639000

Accessories and spare parts

Burner tube for gas burners Ø137 x 430 mm 65324344
Price: PHP 30000

This product is from the collections

Burners for heating boilers

Ecoflam

Brand

Italy — home of the brand

Packaging information

Weight, kg:: 60
Width, cm:: 67
Height, cm:: 47.6
Length, cm:: 100.2
