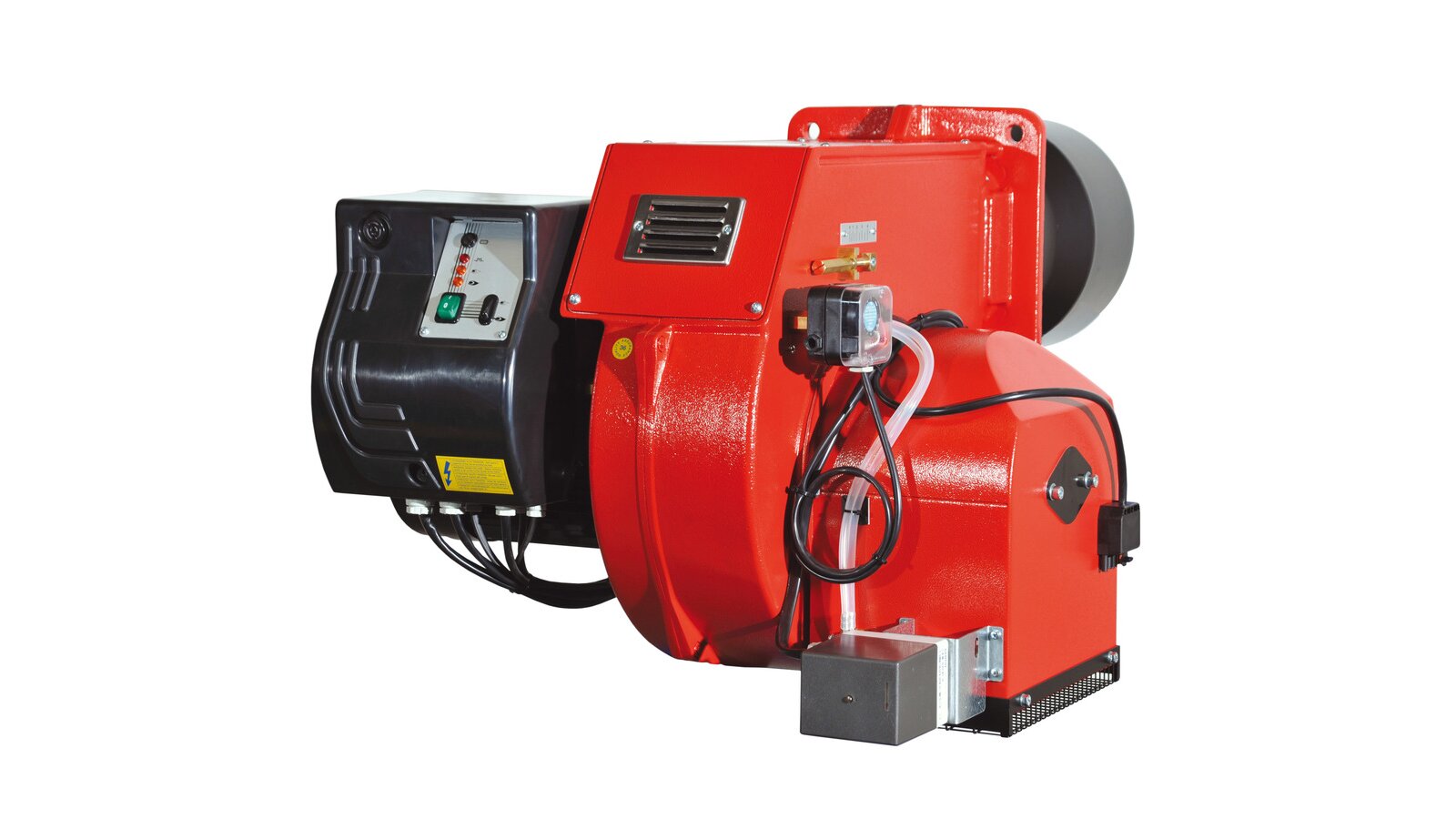

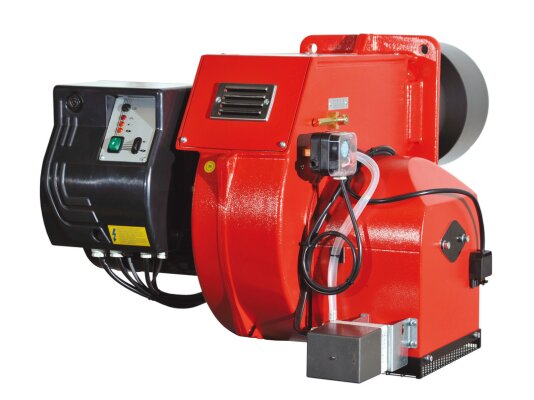

Ecoflam BLU 1500.1 PR Low Nox TC MB-DLE 420 gas burner

Ecoflam3144003-3141847

About product

Fuel type gasolineFlame pipe diameter 215 mmRamp gas pressure from 10 to 52 mbarCounterpressure from 0 to 10 mbarThe length of the flame pipe 340 mmOperating temperature from -20 to 60 °C

Burners for heating boilers

Characteristics

Manufacturer Part Number: 3144003-3141847Fuel type: gasolineFlame pipe diameter: 215 mmRamp gas pressure: from 10 to 52 mbarCounterpressure: from 0 to 10 mbarThe length of the flame pipe: 340 mmOperating temperature: from -20 to 60 °CNoise level: 80 dBElectrical power consumption: 3,800 WElectric motor: 3,000 WBurner power: from 300 to 1,550 kWDegree of protection: IP40Included accessories: with a combustion head / with a gas rampConnection type: Rp 2"Voltage: 220 V / 380 VFlame pipe type: shortBurner type: progressive-mechanical

Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication

Accessories and spare parts

This product is from the collections

Burners for heating boilers

Ecoflam

Brand

Italy — home of the brand

Packaging information

Weight, kg:: 100
Width, cm:: 71
Height, cm:: 52.7
Length, cm:: 102
