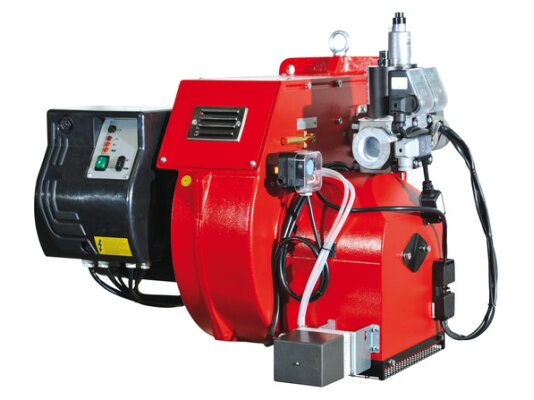

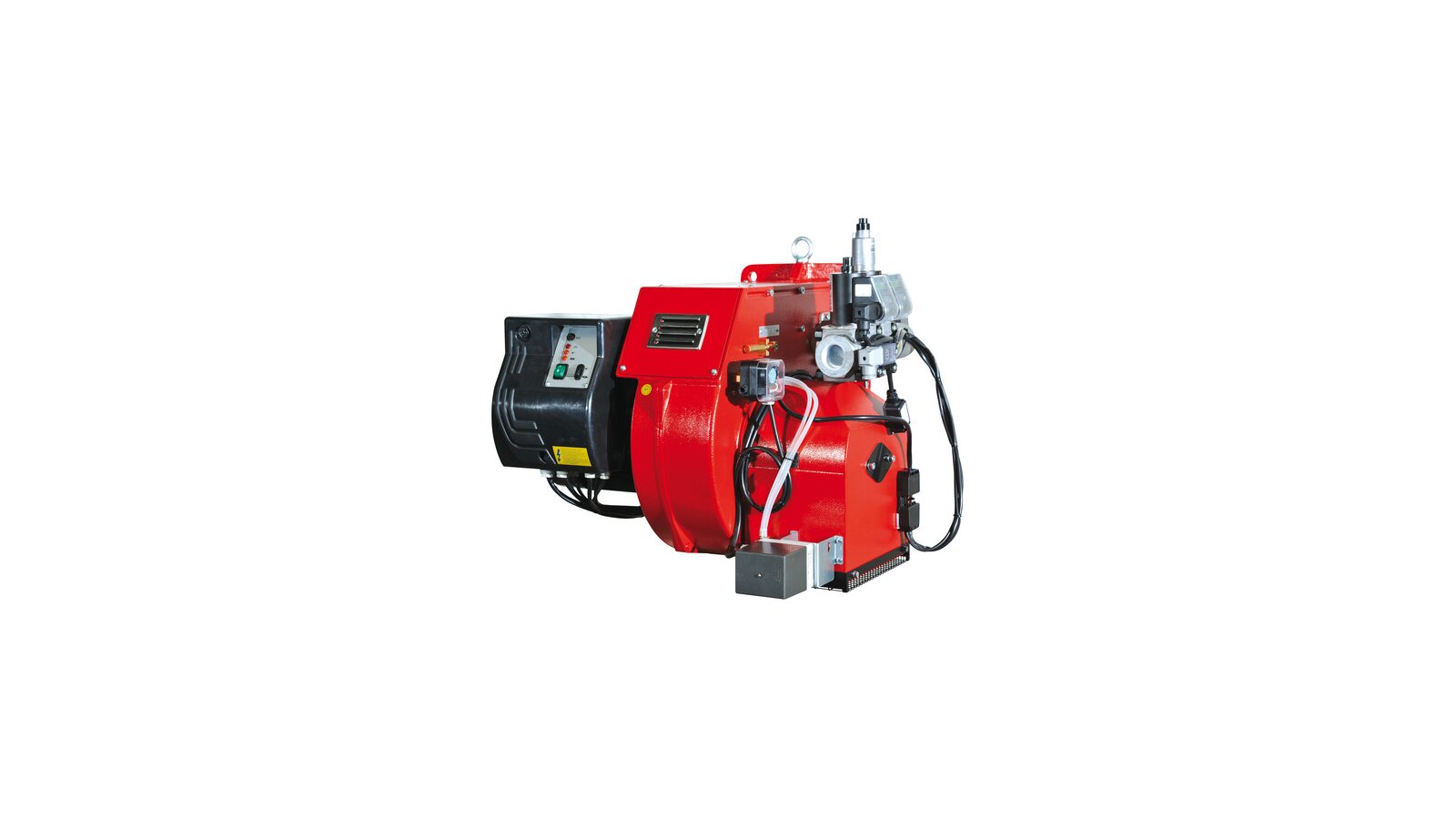

Ecoflam BLU 1700.1 PRE TC VGD 20.503 gas burner

Ecoflam3145120-3145790

About product

Fuel type gasolineFlame pipe diameter 250 mmRamp gas pressure from 1.2 to 30 mbarCounterpressure from 0 to 10 mbarThe length of the flame pipe 340 mmOperating temperature from -10 to 50 °C

Burners for heating boilers

Characteristics

Manufacturer Part Number: 3145120-3145790Fuel type: gasolineFlame pipe diameter: 250 mmRamp gas pressure: from 1.2 to 30 mbarCounterpressure: from 0 to 10 mbarThe length of the flame pipe: 340 mmOperating temperature: from -10 to 50 °CNoise level: 84 dBElectrical power consumption: 3,800 WElectric motor: 3,000 WBurner power: from 342 to 1,770 kWDegree of protection: IP40Included accessories: with a combustion head / with a gas rampVoltage: 220 V / 380 VFlame pipe type: shortBurner type: electronically modulatedConnection type: Rp 2"

Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication

Accessories and spare parts

This product is from the collections

Burners for heating boilers

Ecoflam

Brand

Italy — home of the brand

Packaging information

Weight, kg:: 145
Width, cm:: 72.4
Height, cm:: 54.5
Length, cm:: 102.2
