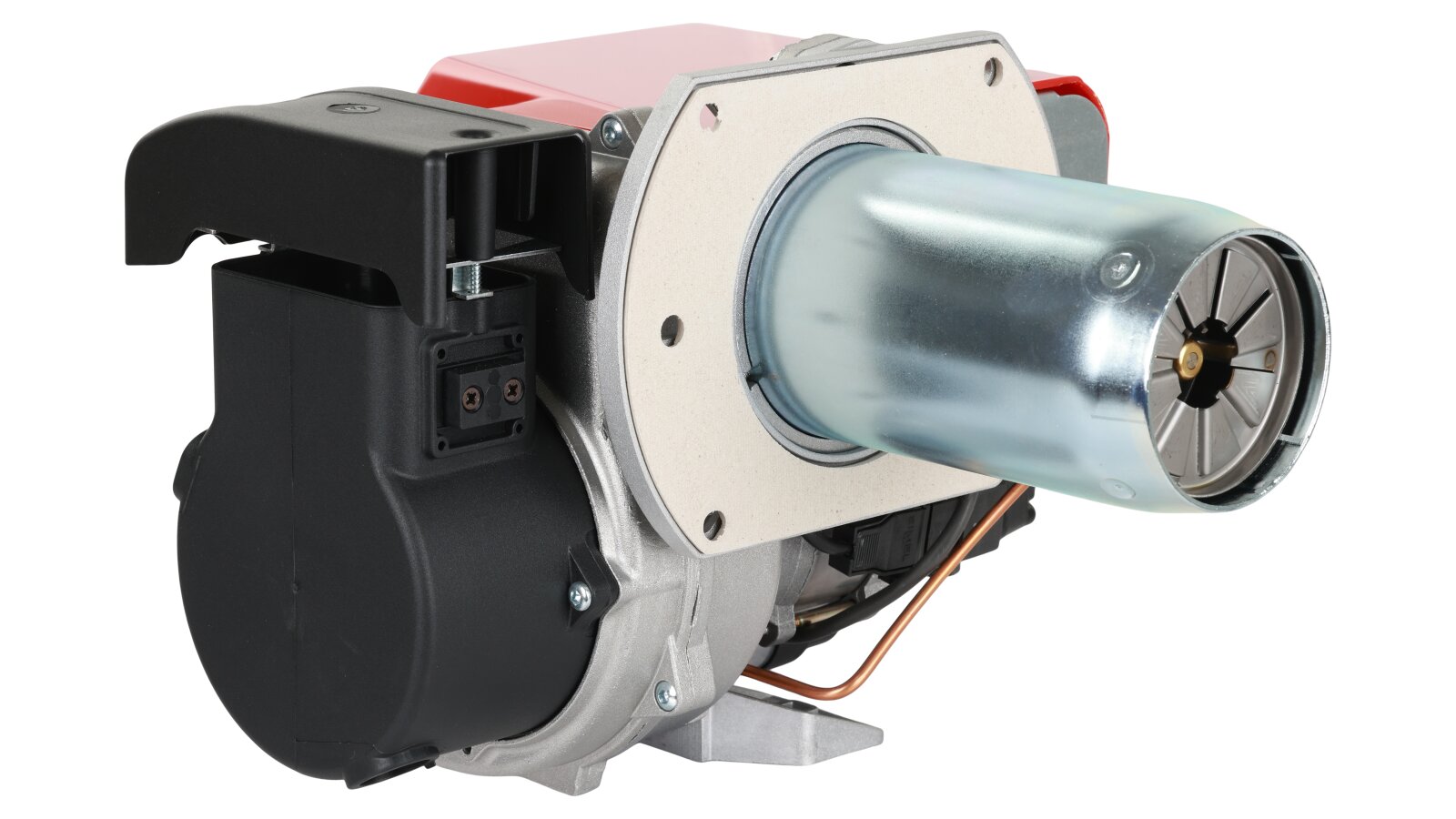

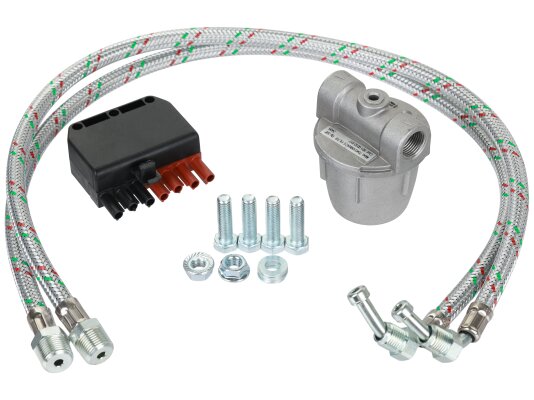

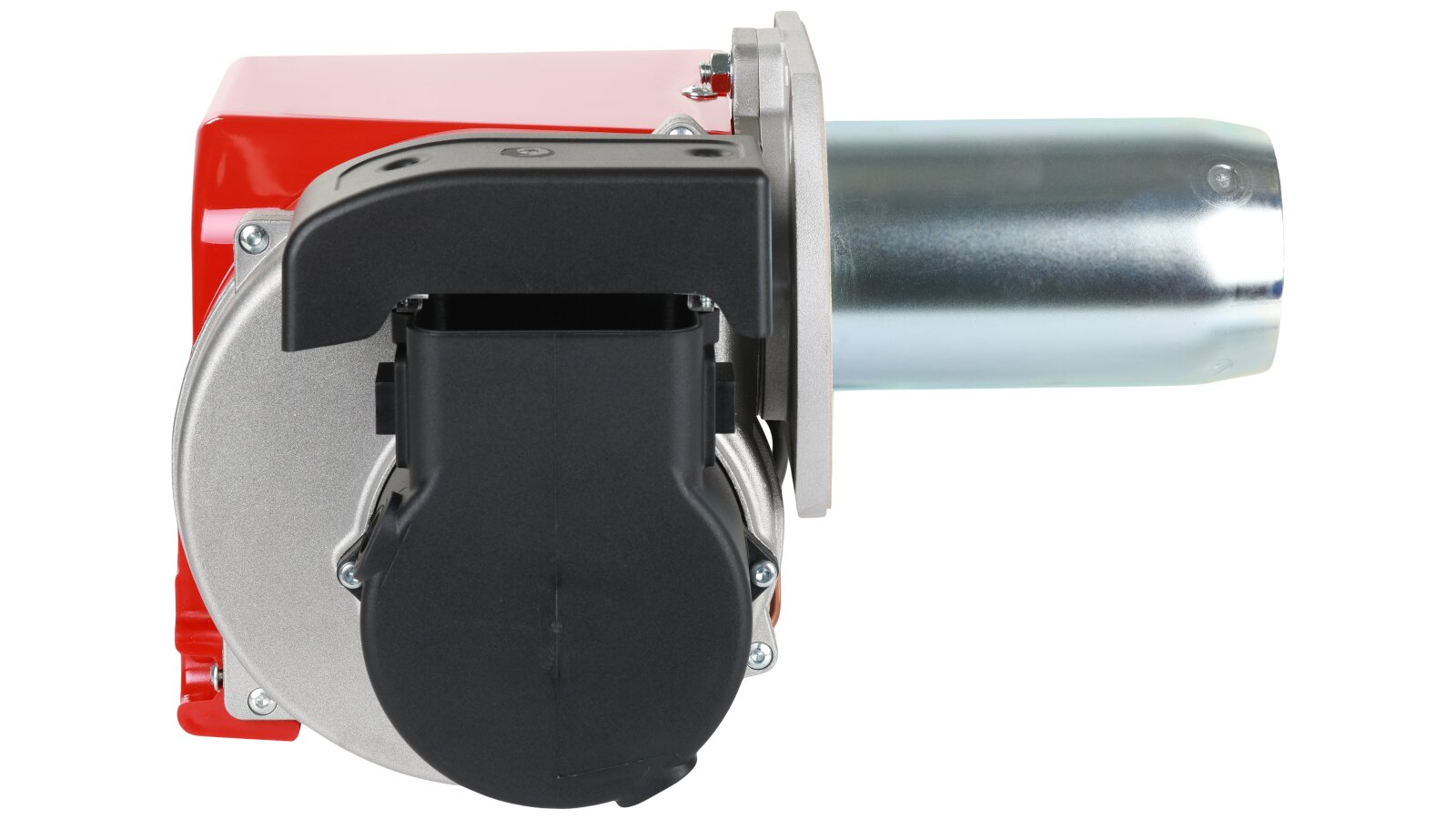

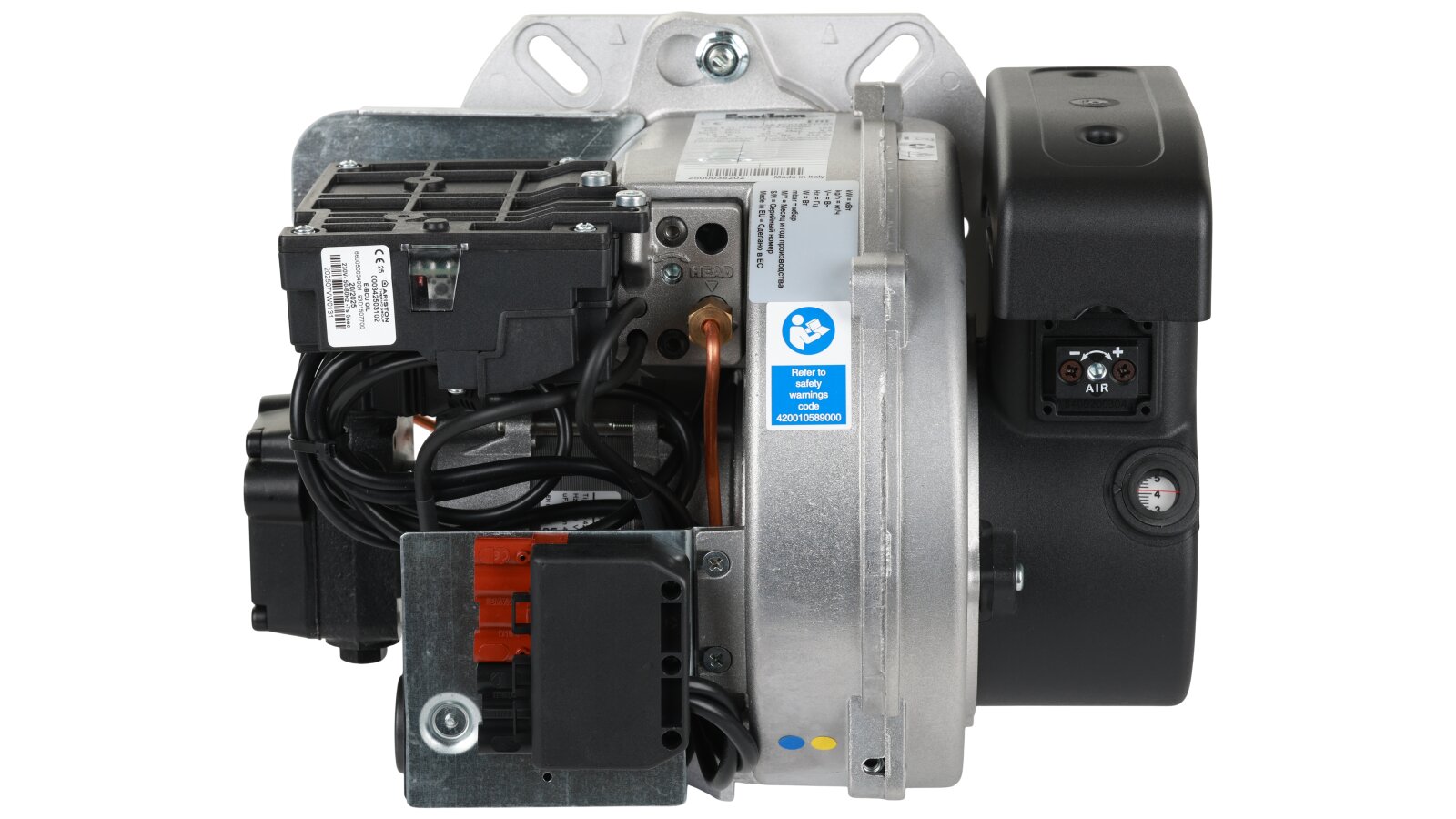

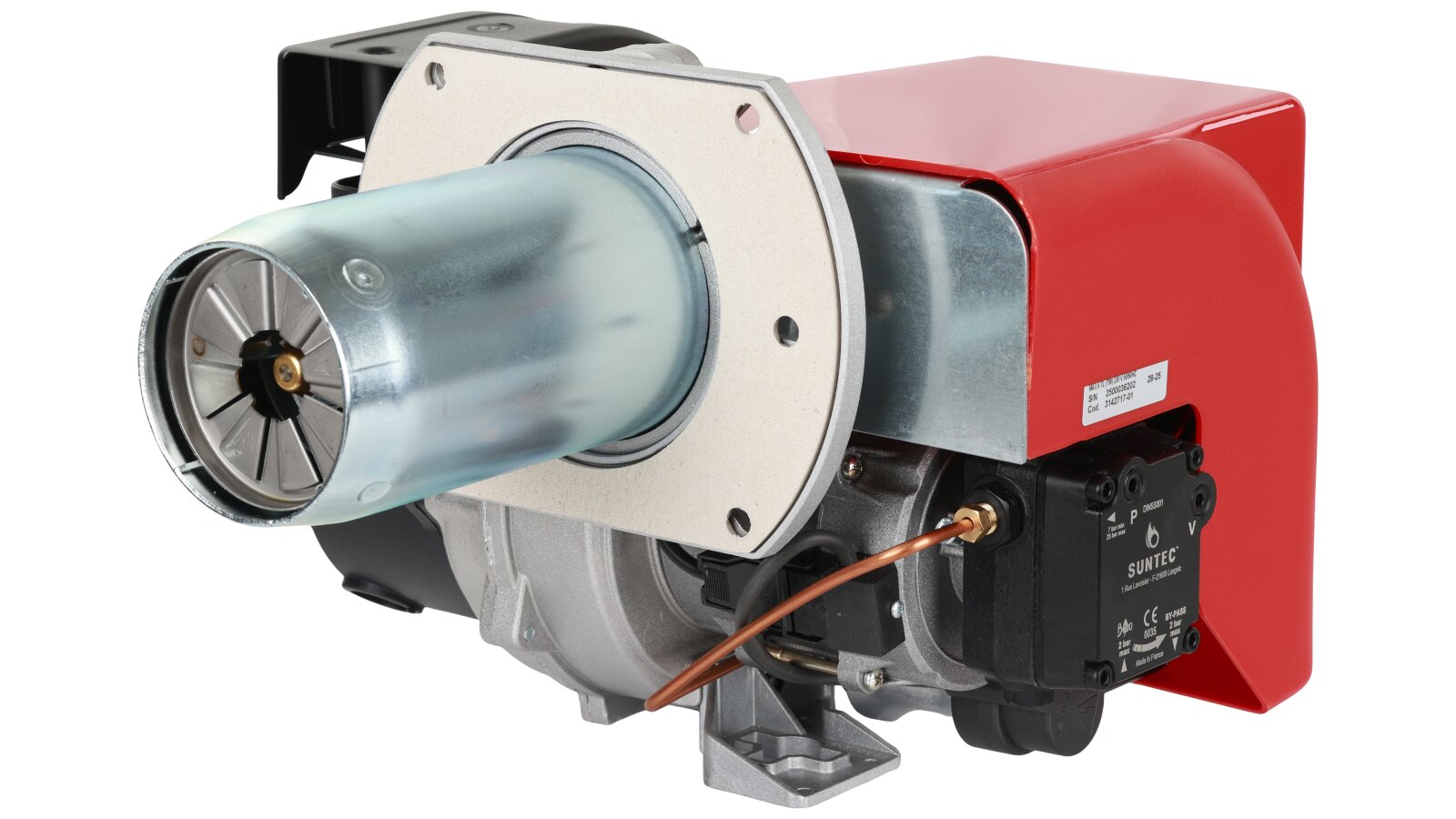

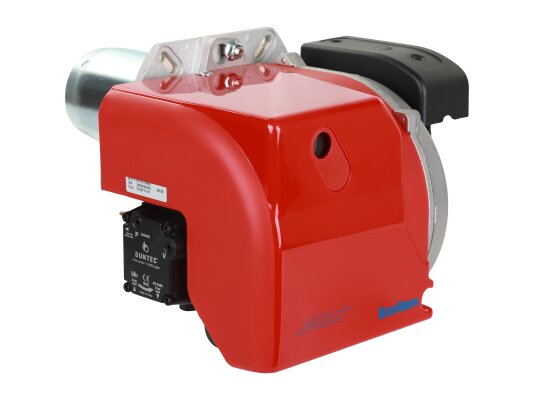

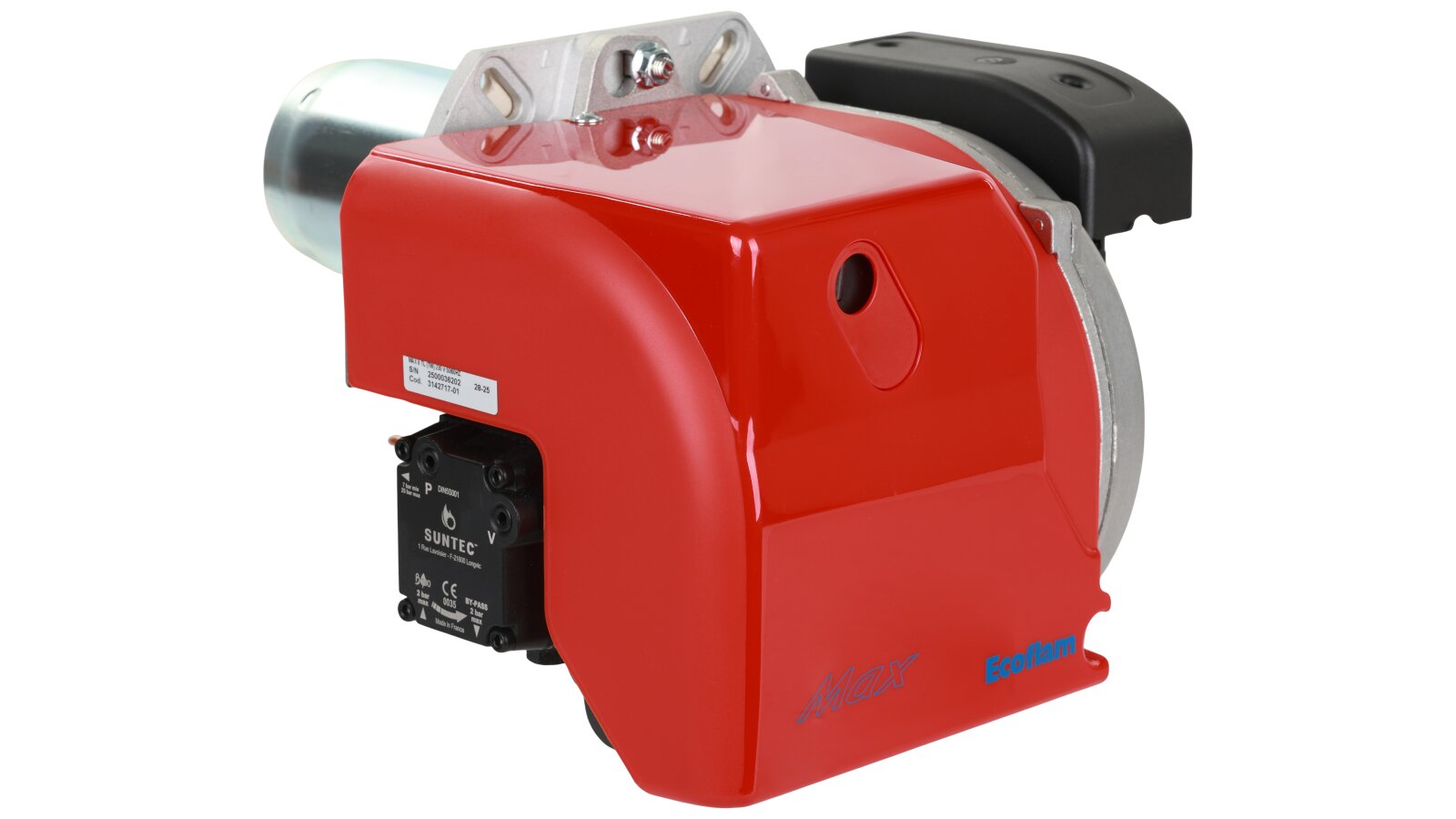

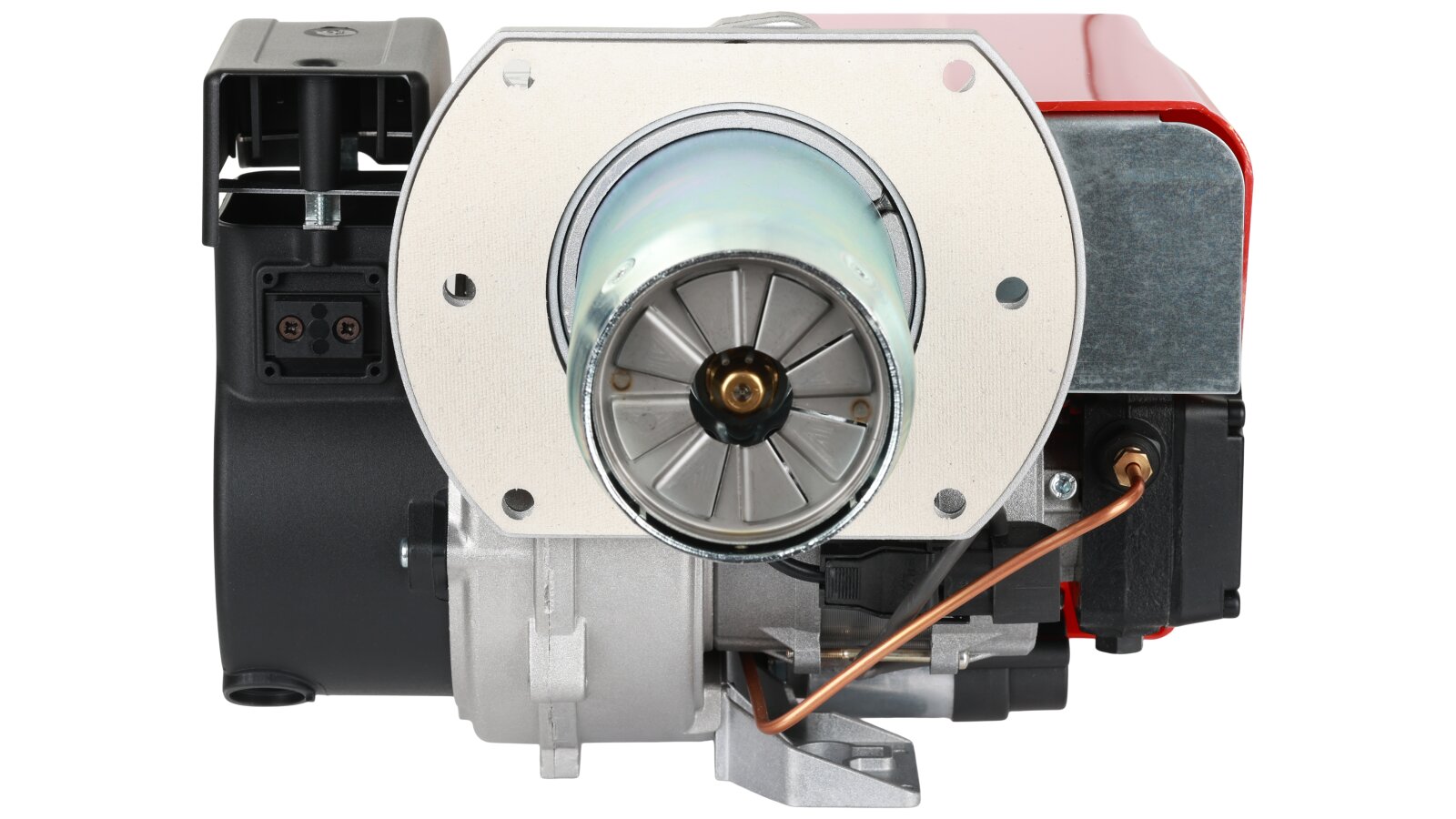

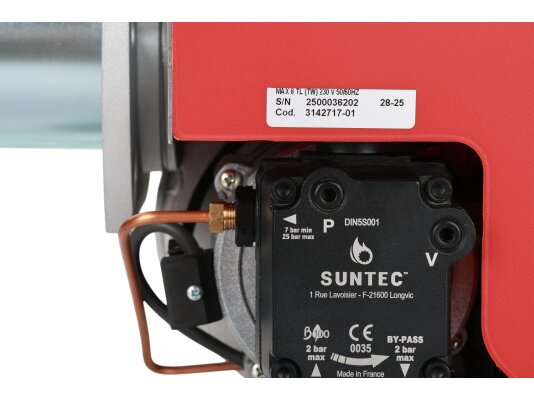

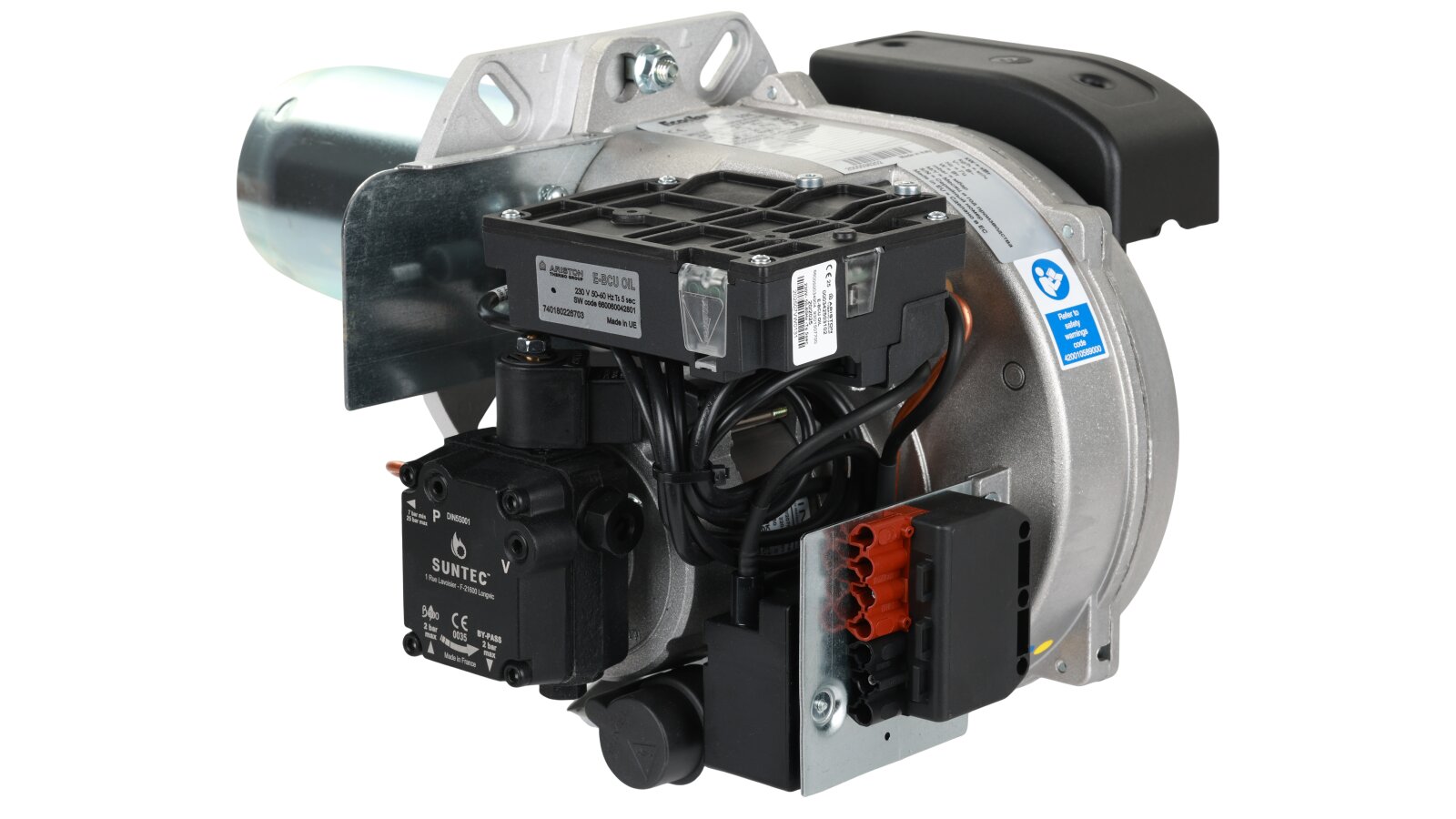

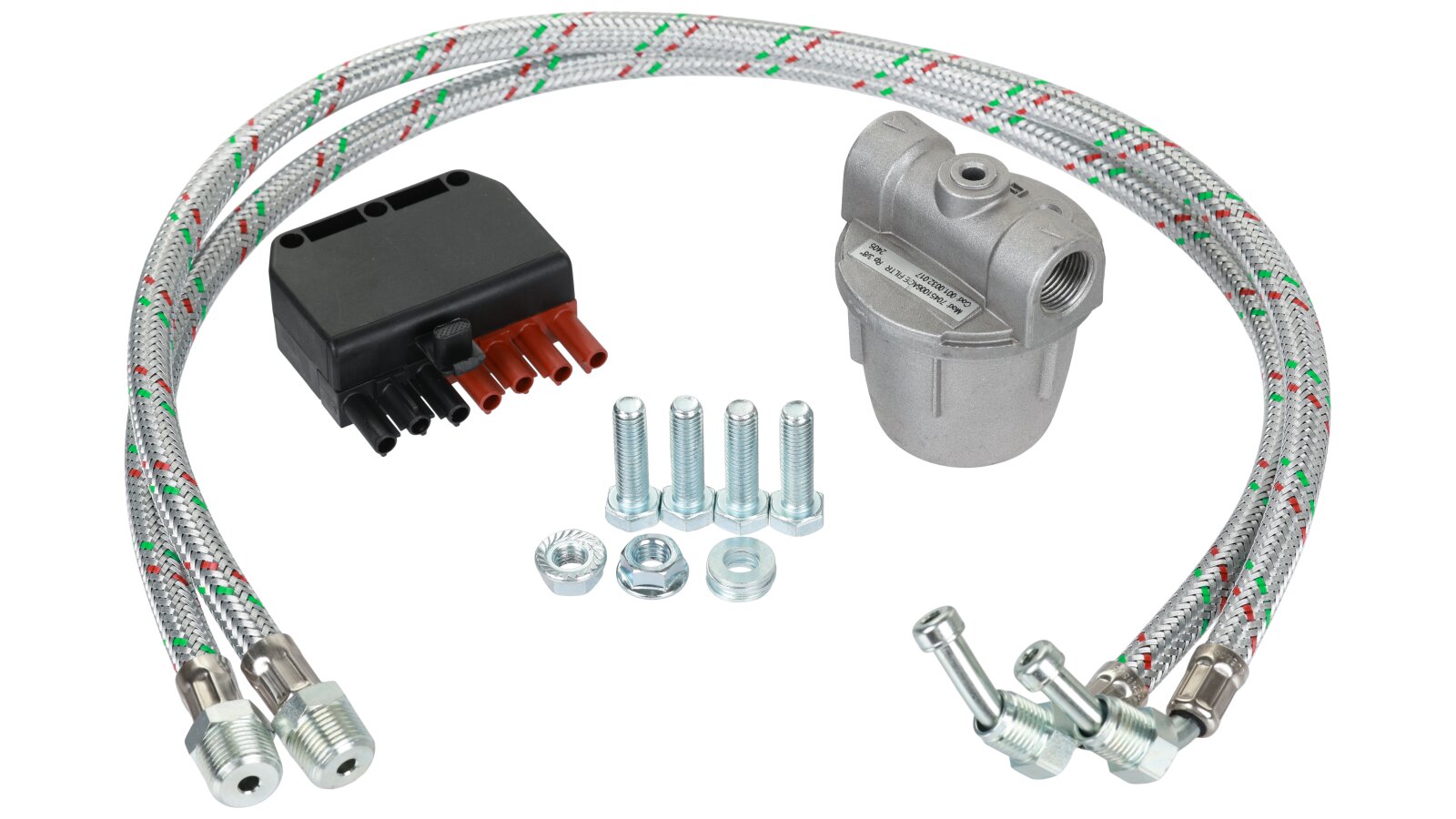

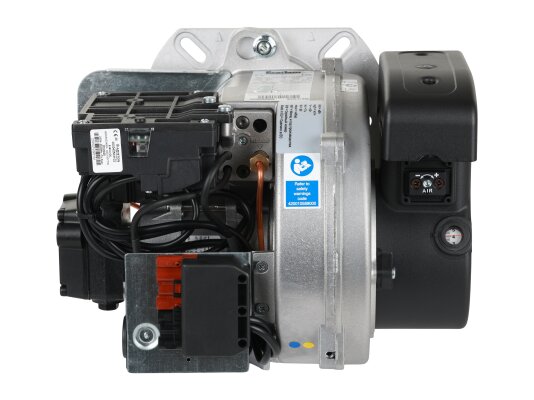

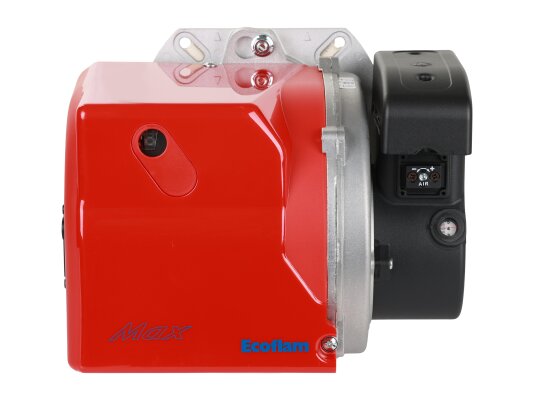

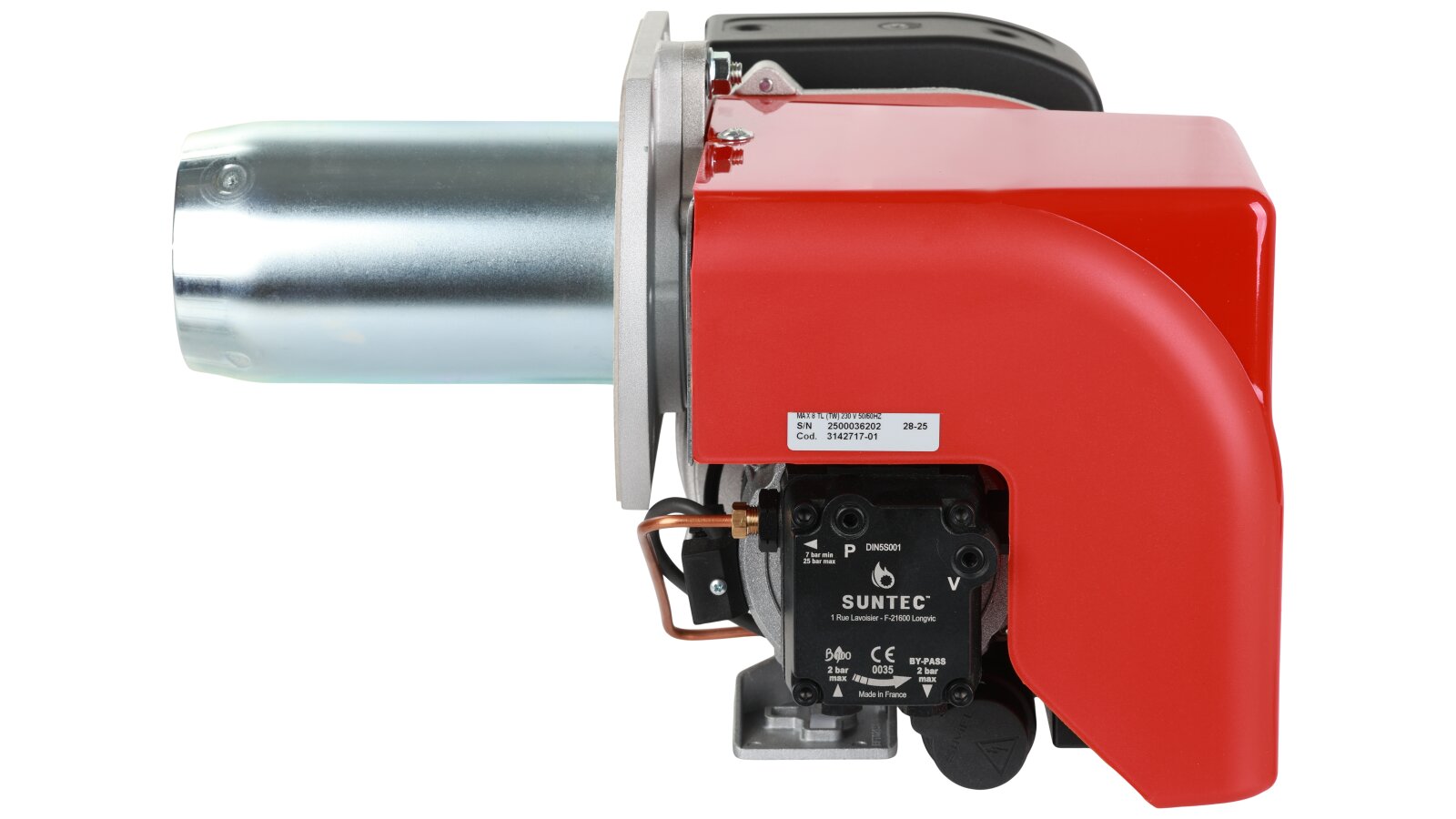

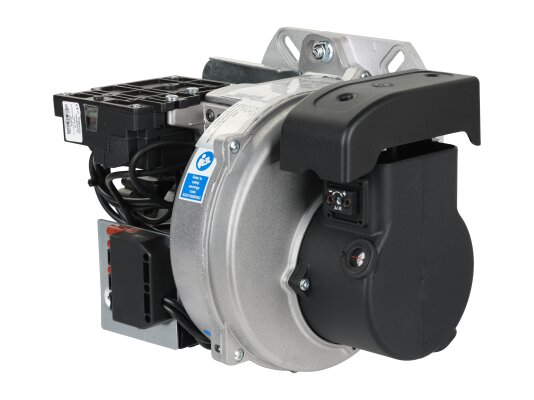

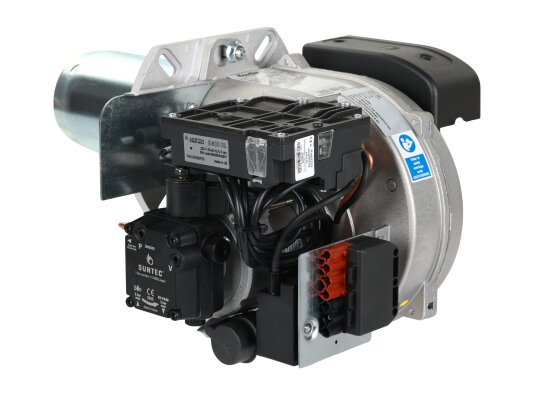

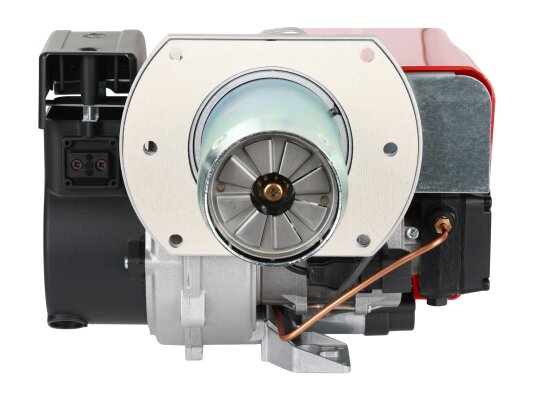

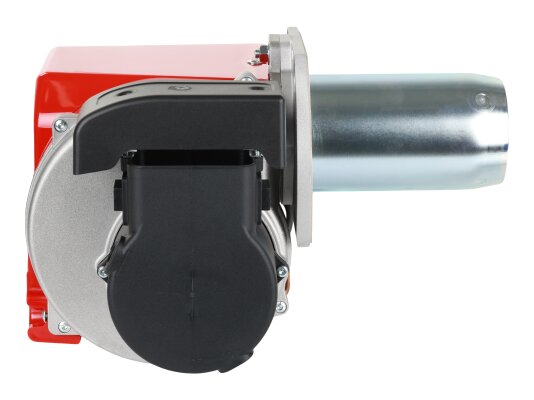

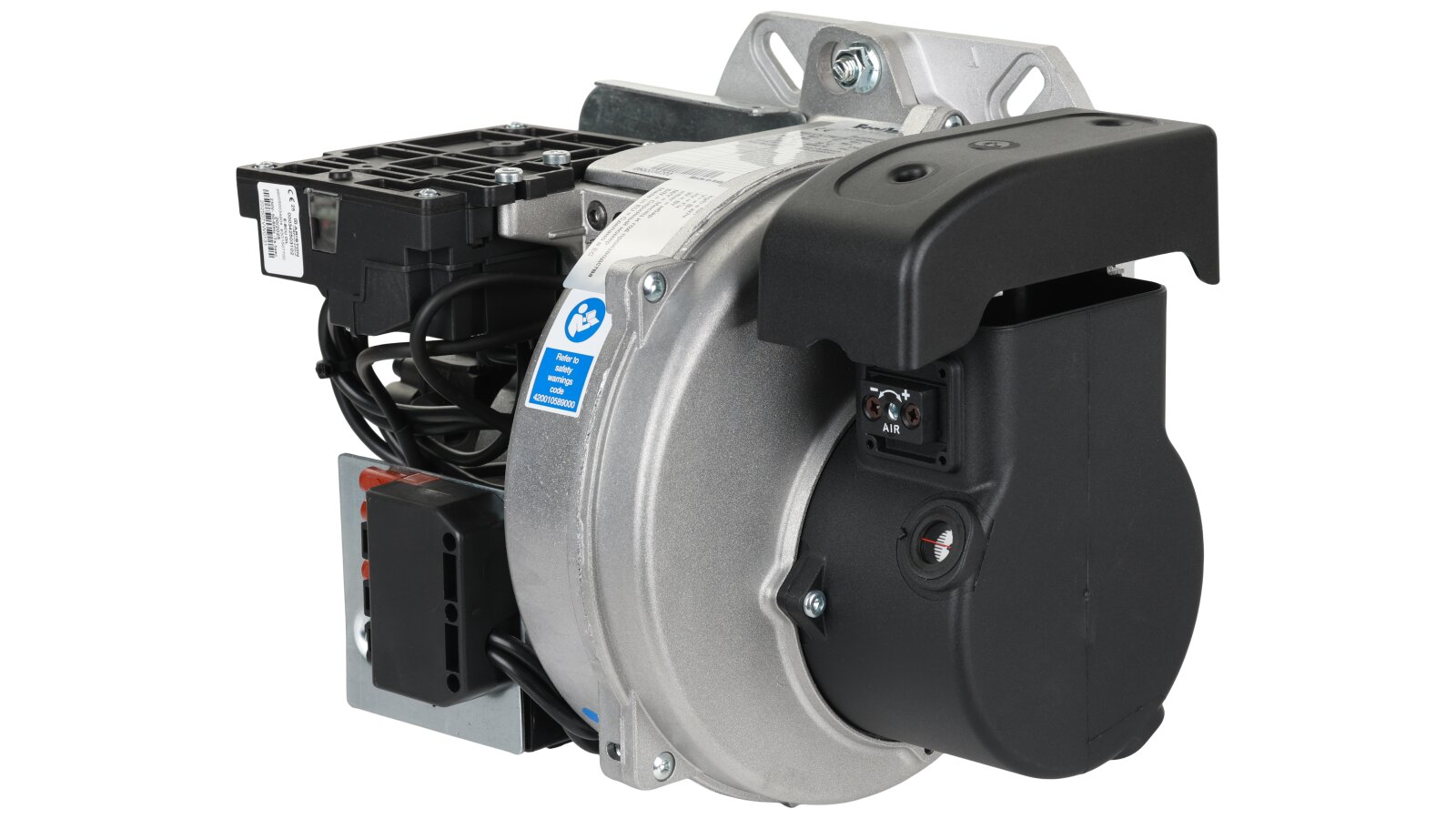

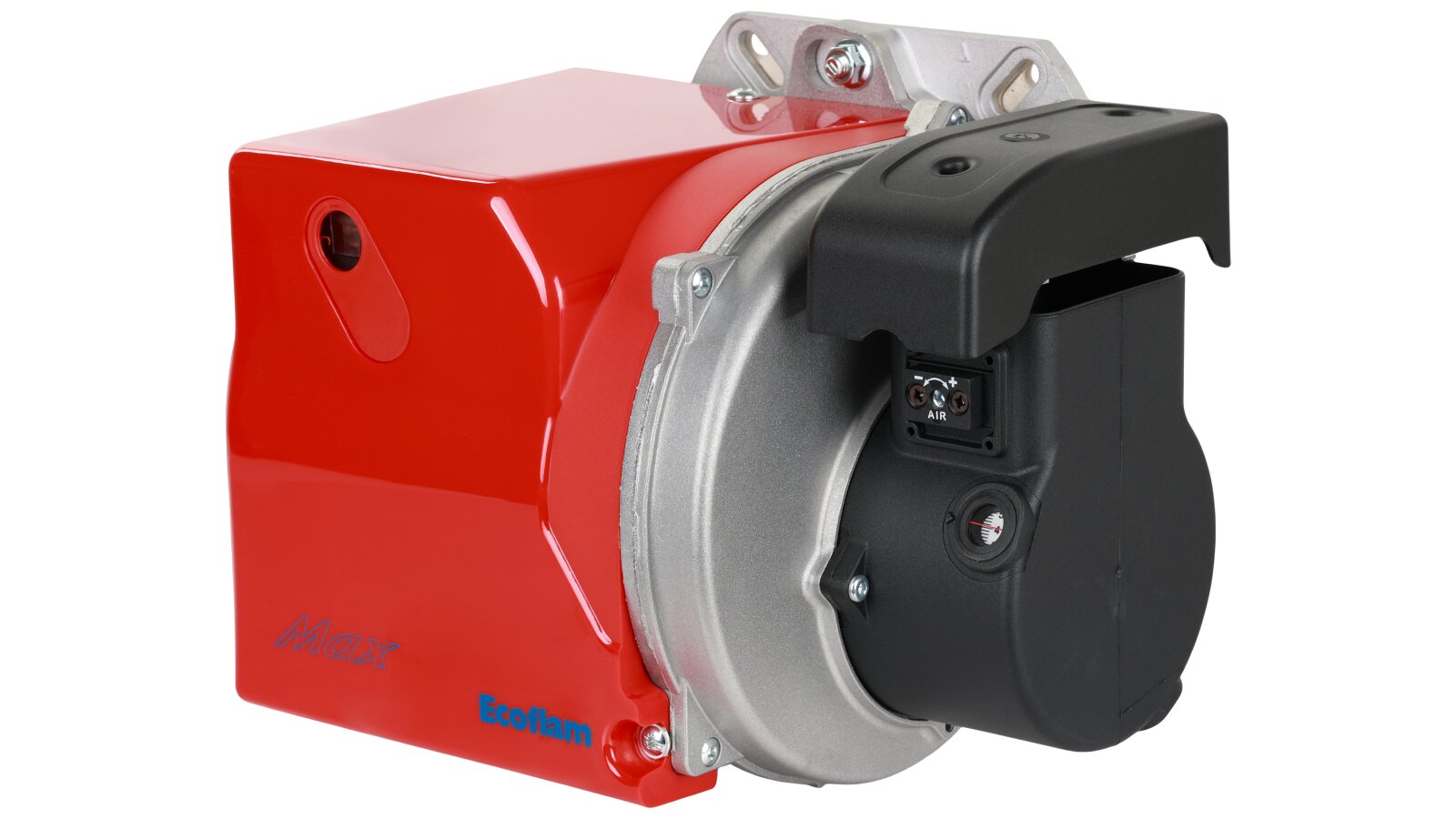

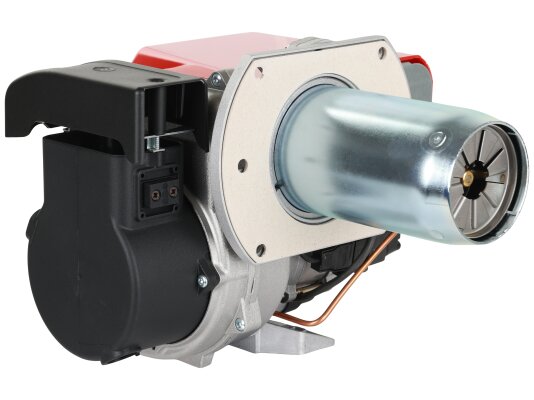

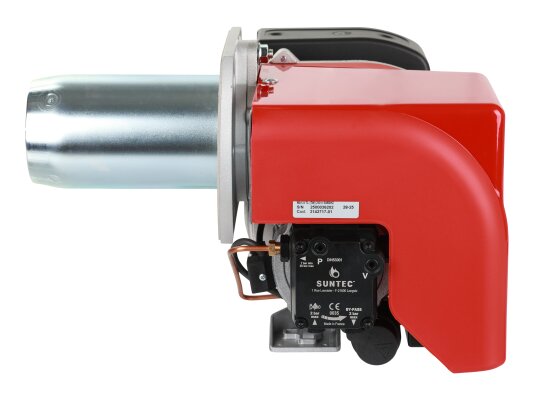

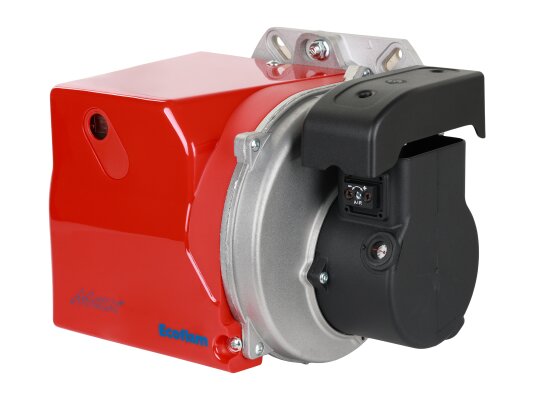

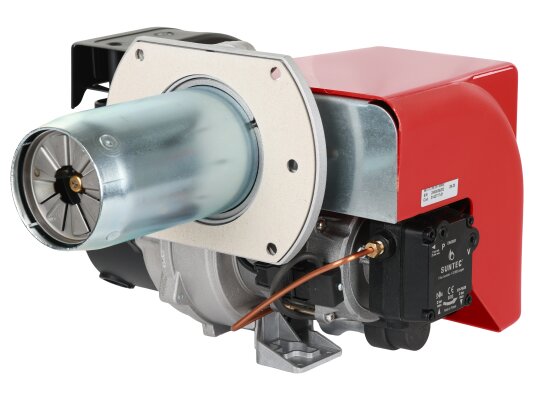

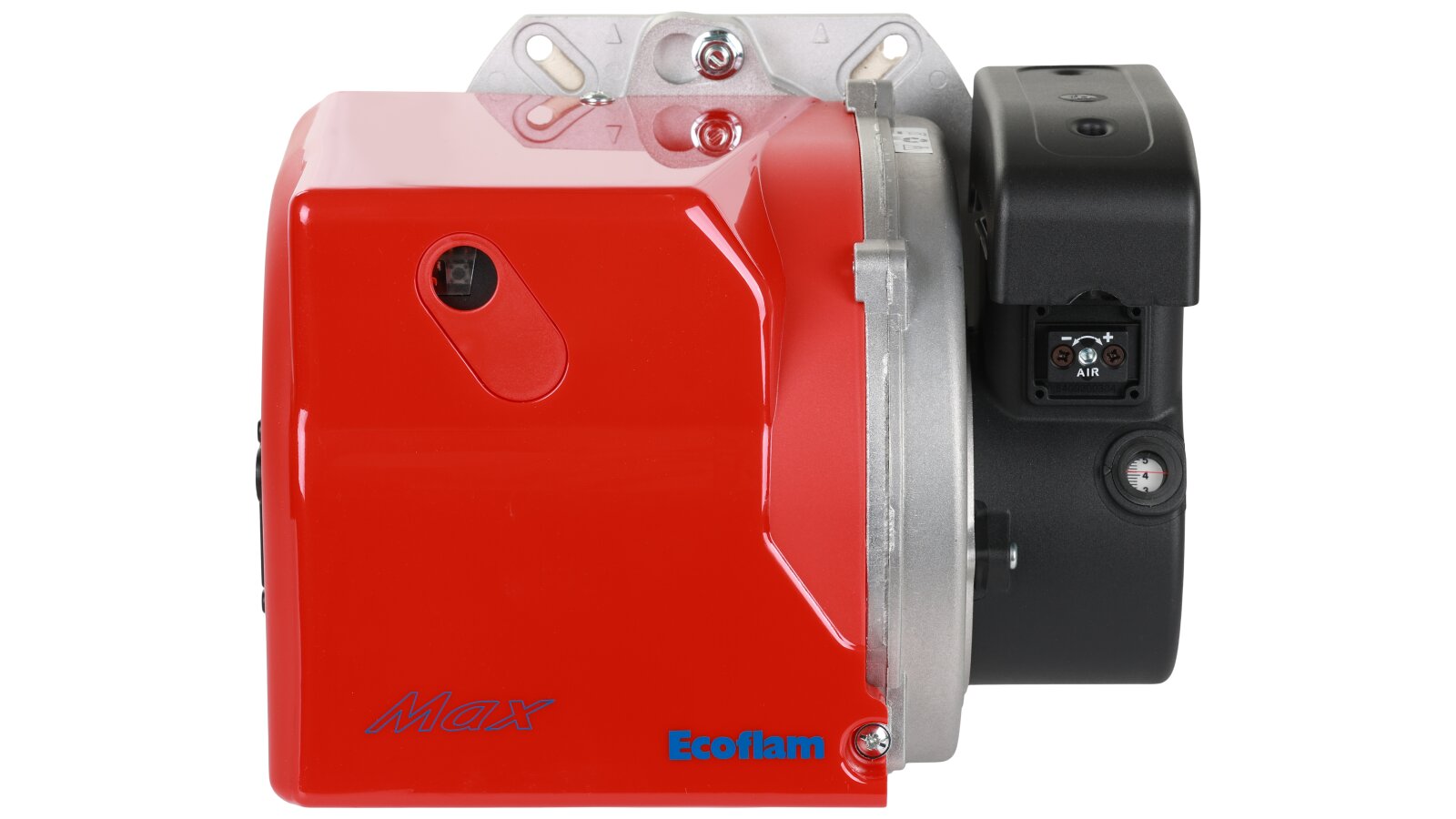

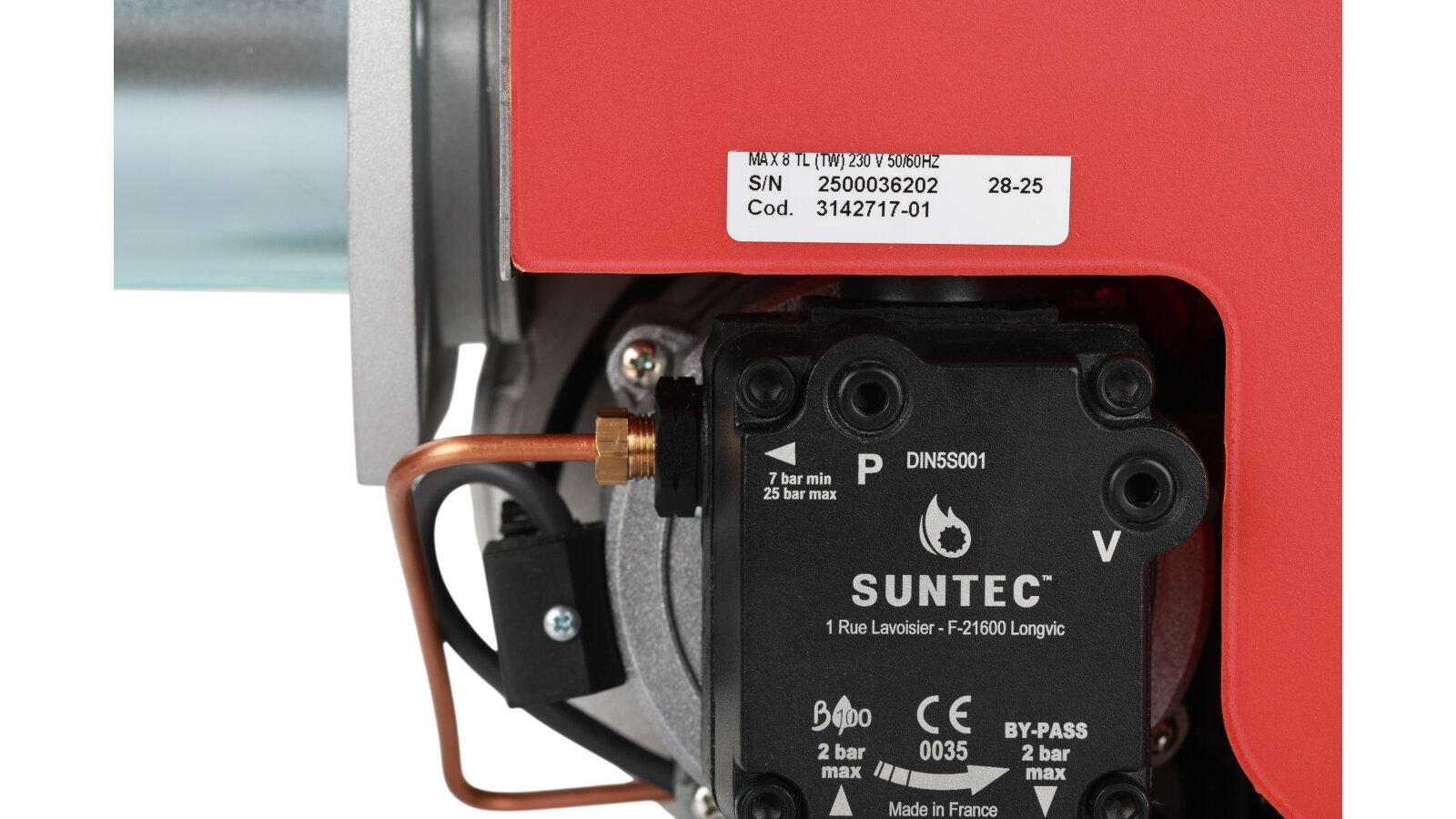

Ecoflam MAX 8 TW TL diesel burner with filter included

Ecoflam3142717-01

Archive image

Ecoflam MAX 8 TW TL diesel burner, art: 3142717-01.

About product

Fuel type dieselFlame pipe diameter 89 mmCounterpressure from 0 to 3.4 mbarThe length of the flame pipe 145 mmFuel consumption 4 - 8.9 kg/hOperating temperature from -10 to 60 °C

Burners for heating boilers

Characteristics

Manufacturer Part Number: 3142717-01Fuel type: dieselFlame pipe diameter: 89 mmCounterpressure: from 0 to 3.4 mbarThe length of the flame pipe: 145 mmFuel consumption: 4 - 8.9 kg/hOperating temperature: from -10 to 60 °CNoise level: 65 dBElectrical power consumption: 350 WElectric motor: 90 WBurner power: from 47 to 105 kWFlame pipe type: extendedBurner type: one-stageDegree of protection: IP40Included accessories: with a combustion headVoltage: 220 V

Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication

Analogues

Accessories and spare parts

This product is from the collections

Burners for heating boilers

Ecoflam

Brand

Italy — home of the brand

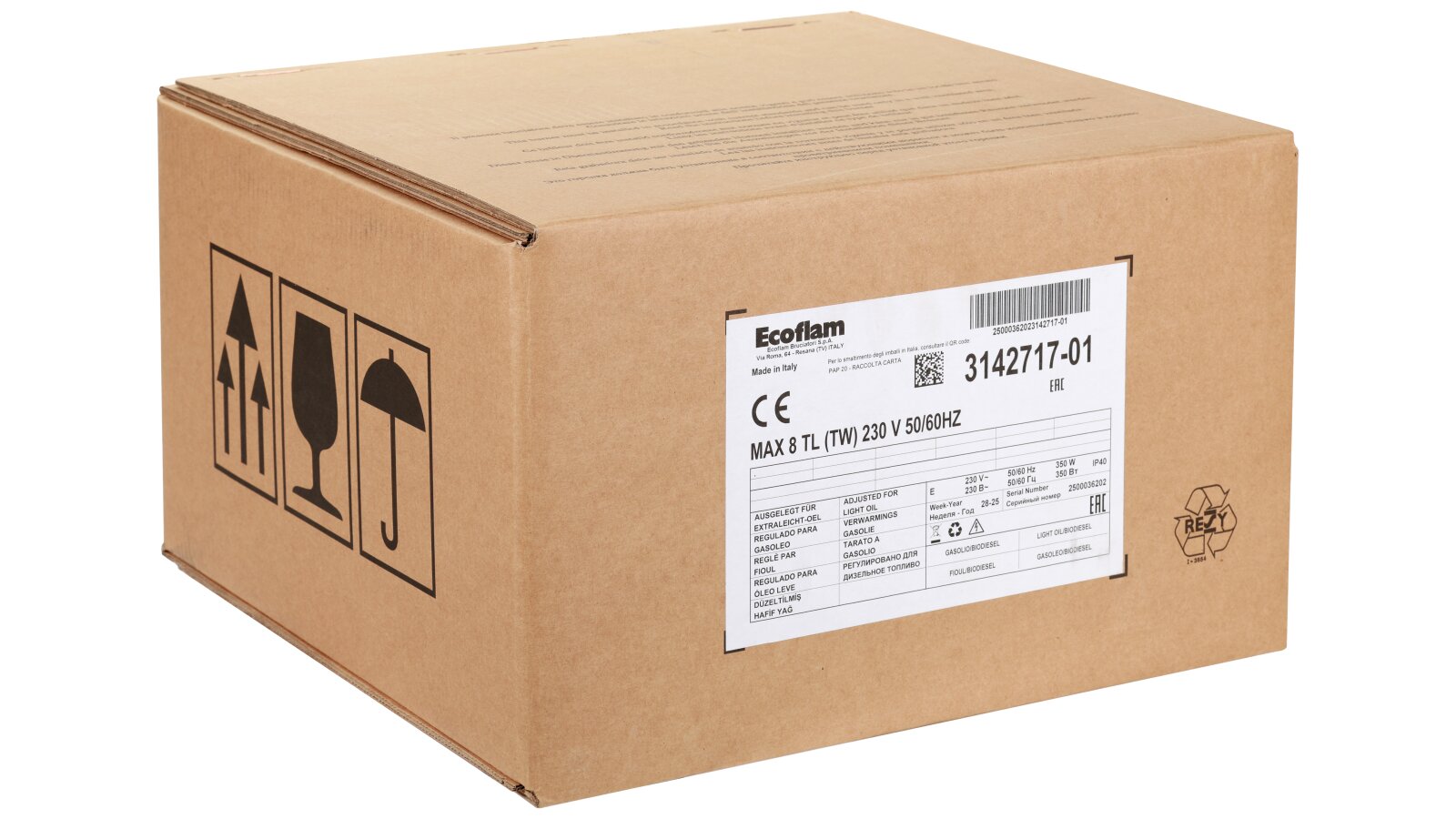

Packaging information

Weight, kg:: 9.5
Width, cm:: 23.8
Height, cm:: 24.9
Length, cm:: 34.9
