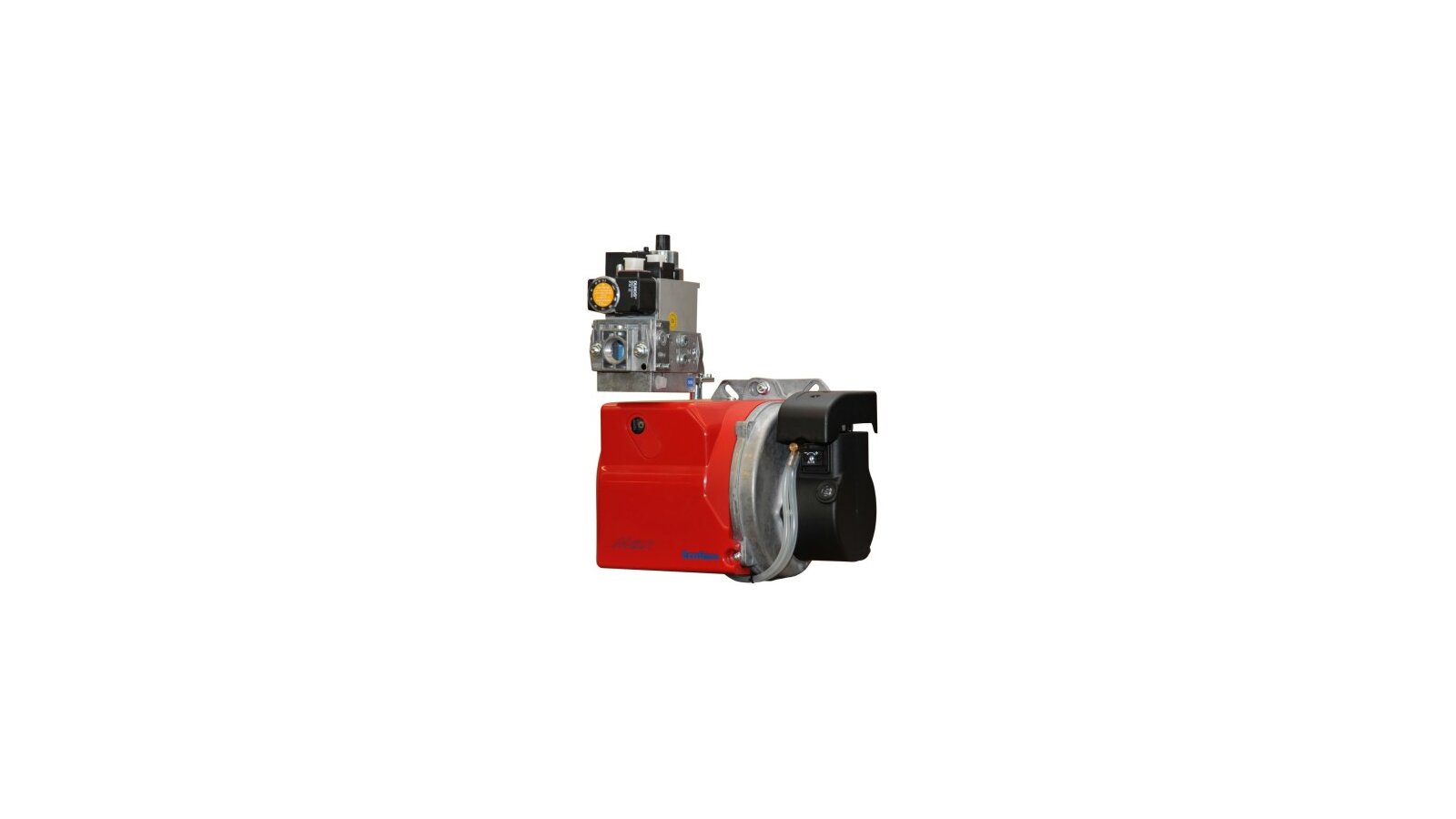

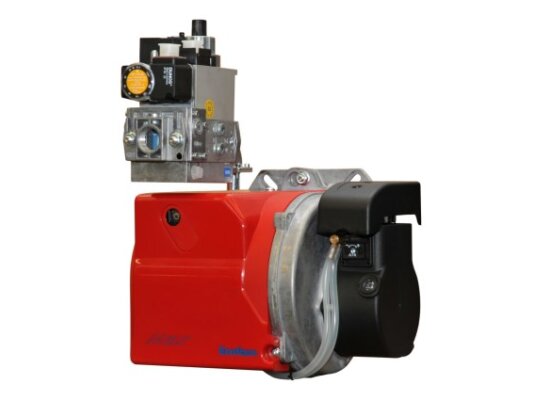

Ecoflam MAX GAS 105 LN P TL GN SR TW MB-DLE 403 gas burner

Ecoflam3142746-3123944

About product

Fuel type gasolineFlame pipe diameter 89 mmRamp gas pressure from 15 to 45 mbarCounterpressure from 0 to 3.5 mbarThe length of the flame pipe 220 mmOperating temperature from -10 to 60 °C

Burners for heating boilers

Characteristics

Manufacturer Part Number: 3142746-3123944Fuel type: gasolineFlame pipe diameter: 89 mmRamp gas pressure: from 15 to 45 mbarCounterpressure: from 0 to 3.5 mbarThe length of the flame pipe: 220 mmOperating temperature: from -10 to 60 °CNoise level: 65 dBElectrical power consumption: 190 WElectric motor: 75 WBurner power: from 49 to 108 kWBurner type: one-stageDegree of protection: IP40Included accessories: with a combustion head / with a gas rampVoltage: 220 VFlame pipe type: extendedConnection type: Rp 1/2"

Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication

Analogues

Accessories and spare parts

This product is from the collections

Burners for heating boilers

Ecoflam

Brand

Italy — home of the brand

Packaging information

Weight, kg:: 9.5
Width, cm:: 31.7
Height, cm:: 20.9
Length, cm:: 42.4
