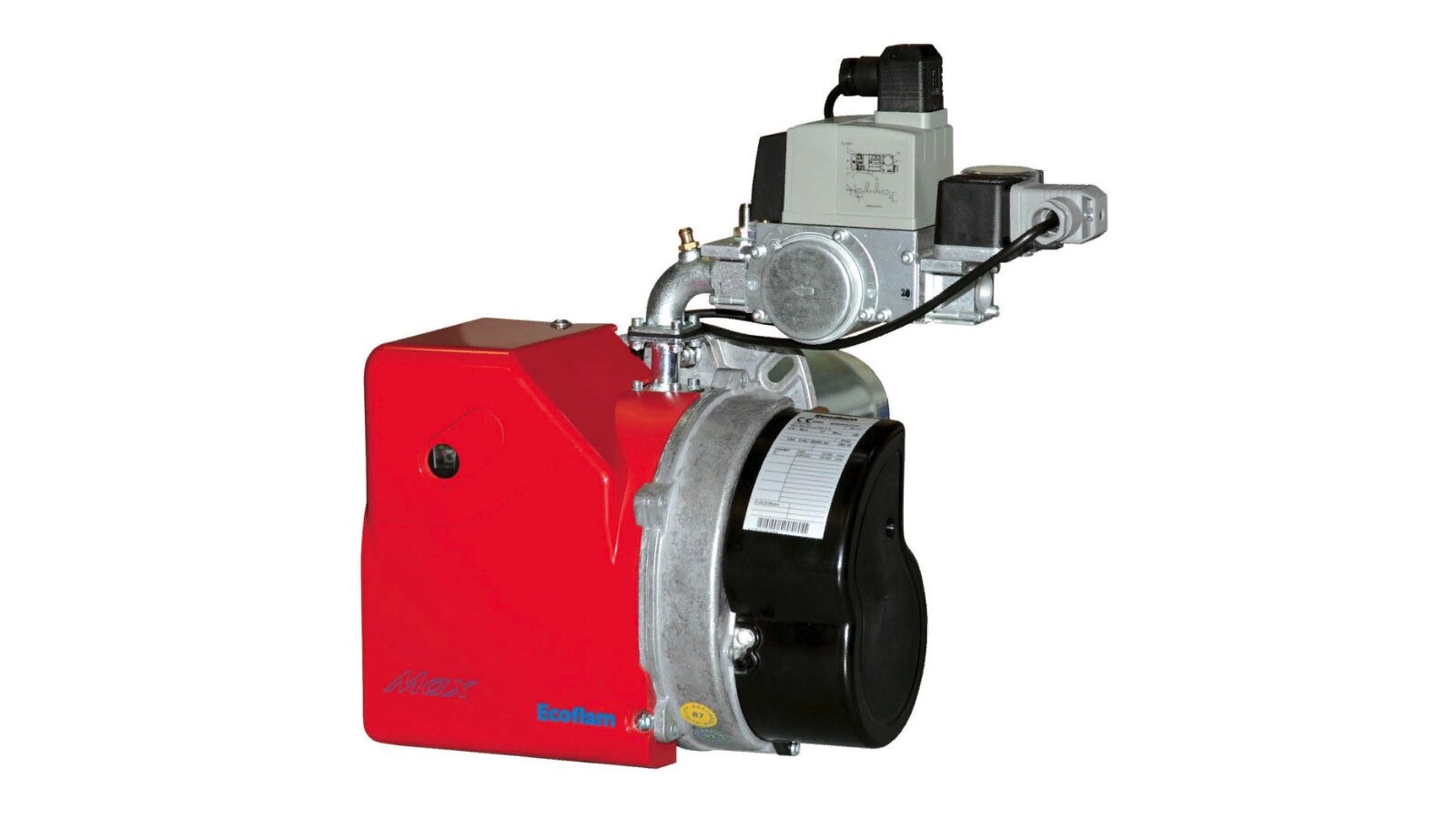

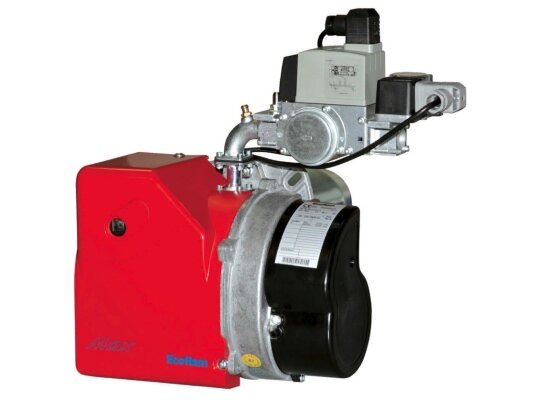

Ecoflam MAX GAS 350 PAB TL MB-DLE 407 350/500 gas burner

Ecoflam3142286-3142392

About product

Fuel type gasolineFlame pipe diameter 157 mmRamp gas pressure from 5.2 to 50 mbarCounterpressure from 0 to 6 mbarThe length of the flame pipe 335 mmOperating temperature from -10 to 60 °C

Burners for heating boilers

Characteristics

Manufacturer Part Number: 3142286-3142392Fuel type: gasolineFlame pipe diameter: 157 mmRamp gas pressure: from 5.2 to 50 mbarCounterpressure: from 0 to 6 mbarThe length of the flame pipe: 335 mmOperating temperature: from -10 to 60 °CNoise level: 73 dBElectrical power consumption: 600 WElectric motor: 300 WBurner power: from 100 to 350 kWDegree of protection: IP40Included accessories: with a combustion head / with a gas rampVoltage: 220 VFlame pipe type: extendedBurner type: two-stageConnection type: Rp 3/4"

Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication

Analogues

Accessories and spare parts

This product is from the collections

Burners for heating boilers

Ecoflam

Brand

Italy — home of the brand

Packaging information

Weight, kg:: 19.6
Width, cm:: 51
Height, cm:: 35.8
Length, cm:: 83.5

Ecoflam MAX GAS 350 PAB TL MB-DLE 407 350/500 gas burner

Description

Characteristics
