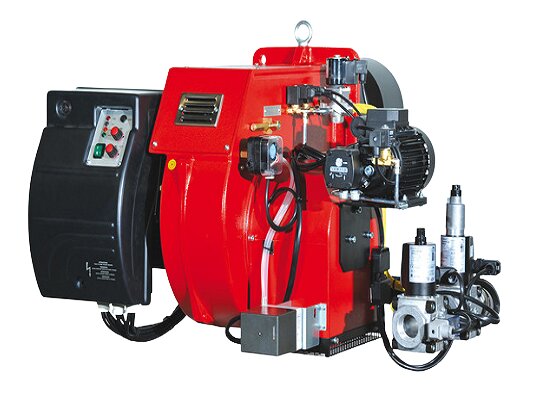

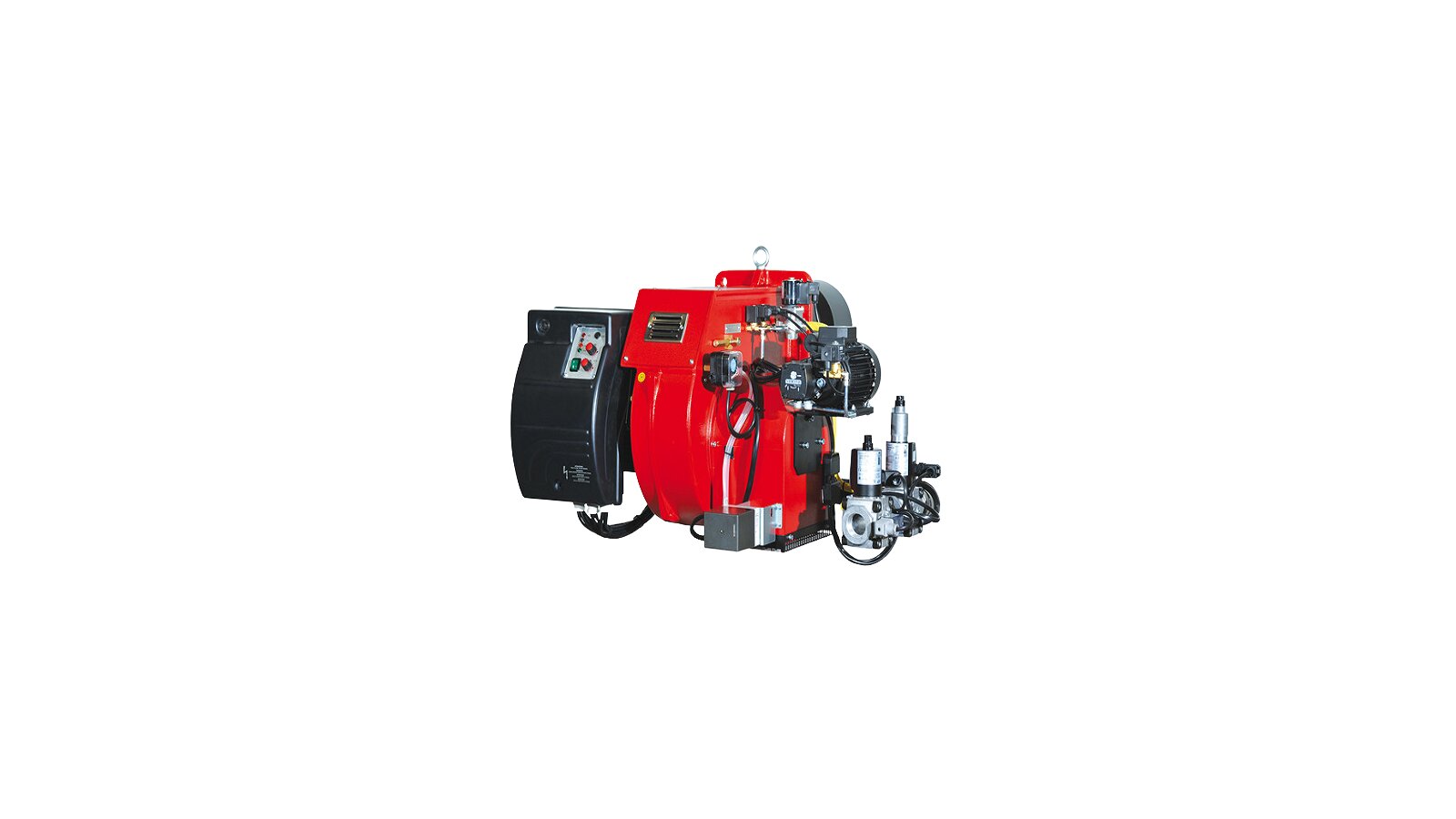

Ecoflam MULTICALOR 200.1 PR-AB TC MB-DLE 415 gas-diesel burner

Ecoflam3142640-3141846

About product

Fuel consumption 35 - 207 kg/hCounterpressure from 0 to 11 mbarThe length of the flame pipe 290 mmRamp gas pressure from 13 to 96 mbarOperating temperature from -10 to 60 °CElectric motor 4,000 W

Burners for heating boilers

Characteristics

Manufacturer Part Number: 3142640-3141846Fuel consumption: 35 - 207 kg/hCounterpressure: from 0 to 11 mbarThe length of the flame pipe: 290 mmRamp gas pressure: from 13 to 96 mbarOperating temperature: from -10 to 60 °CElectric motor: 4,000 WGas consumption: from 42 to 216 nm³/hBurner power: from 414 to 2,150 kWFlame pipe diameter: 270 mmBurner type: комбинированнаяFlame pipe type: shortIncluded accessories: with a combustion head, with a gas rampVoltage: 220 V / 380 VFuel type: gas/dieselConnection type: Rp 1 1/2"Burner type: progressive-mechanical

Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication

Analogues

Ecoflam MULTICALOR 200.1 PR-AB TL MB-DLE 415 gas-oil burner
Price: PHP 1370000

Accessories and spare parts

This product is from the collections

Burners for heating boilers

Ecoflam

Brand

Italy — home of the brand

Italy — country of origin

Packaging information

Weight, kg:: 178
Width, cm:: 95
Height, cm:: 55.5
Length, cm:: 106

Ecoflam MULTICALOR 200.1 PR-AB TC MB-DLE 415 gas-diesel burner

Description

Characteristics
