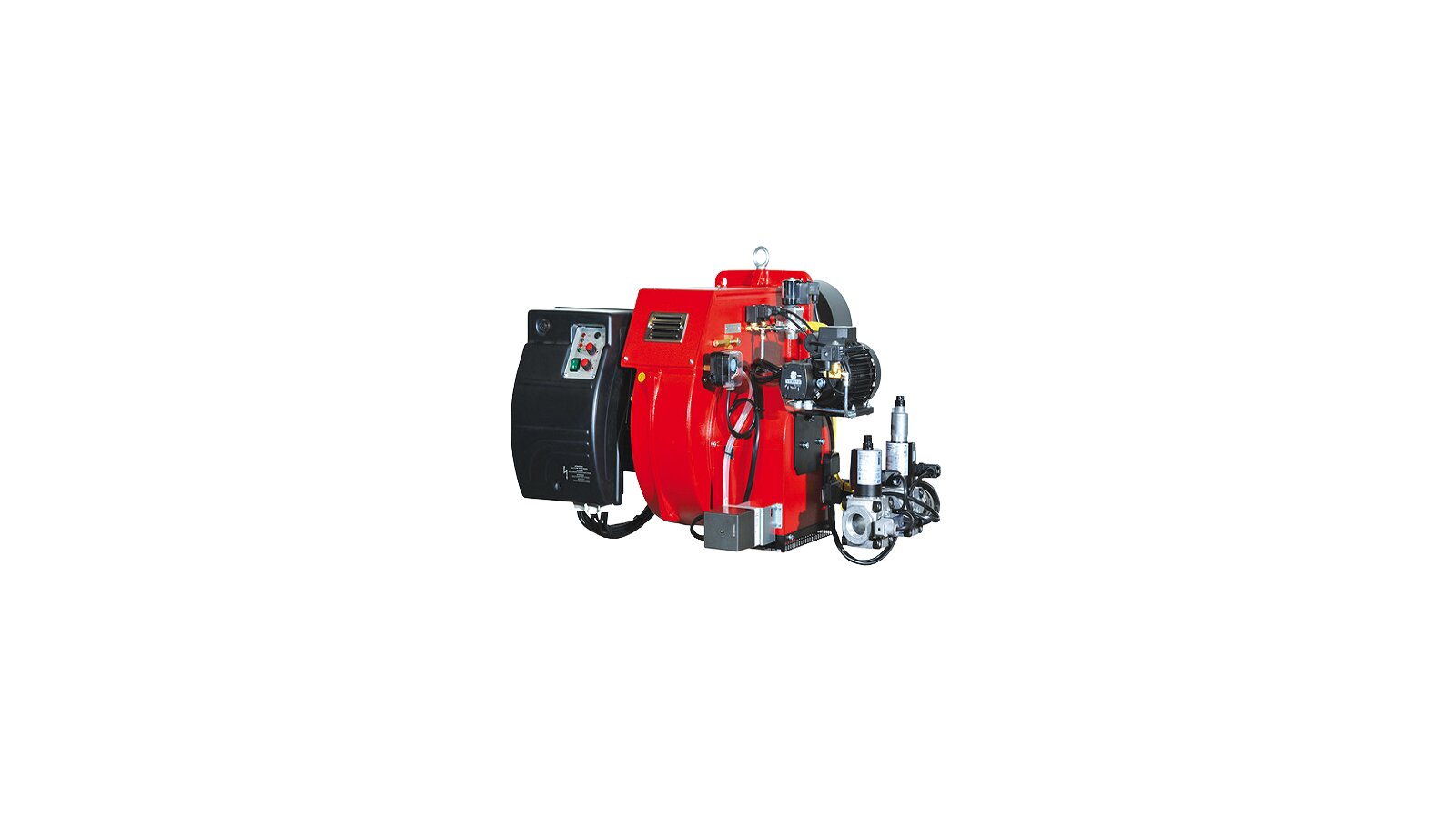

Ecoflam MULTICALOR 200.1 PRE TL MB-DLE 420 gas-oil burner

Ecoflam3145143-3145934

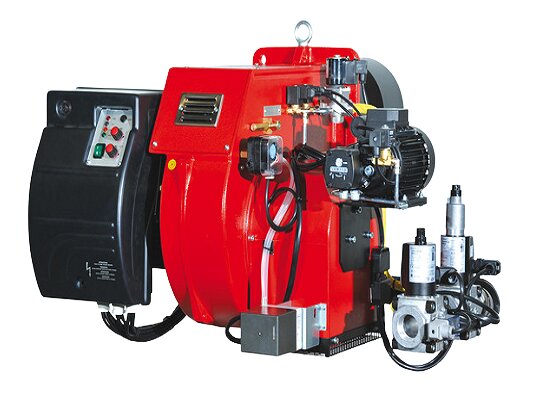

Ecoflam MULTICALOR 200.1 PRE TL MB-DLE 420 gas/diesel burner, art: 3145143-3145934.

About product

Ramp gas pressure from 10 to 88 mbarBurner power from 414 to 2,150 kWCounterpressure from 0 to 11 mbarElectric motor 4,000 WOperating temperature from -10 to 60 °CThe length of the flame pipe 490 mm

Burners for heating boilers

Characteristics

Manufacturer Part Number: 3145143-3145934Ramp gas pressure: from 10 to 88 mbarBurner power: from 414 to 2,150 kWCounterpressure: from 0 to 11 mbarElectric motor: 4,000 WOperating temperature: from -10 to 60 °CThe length of the flame pipe: 490 mmBurner type: комбинированнаяDegree of protection: IP55Included accessories: with a combustion head and with a gas rampConnection type: Rp 2"Voltage: 220 V / 380 VFlame pipe type: extendedFuel type: gas/dieselBurner type: electronically modulated

Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication

Accessories and spare parts

This product is from the collections

Burners for heating boilers

Ecoflam

Brand

Italy — home of the brand

Packaging information

Weight, kg:: 107
Width, cm:: 103
Height, cm:: 55.5
Length, cm:: 131
