Description

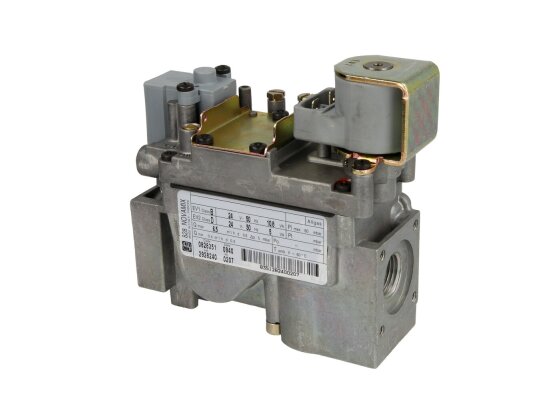

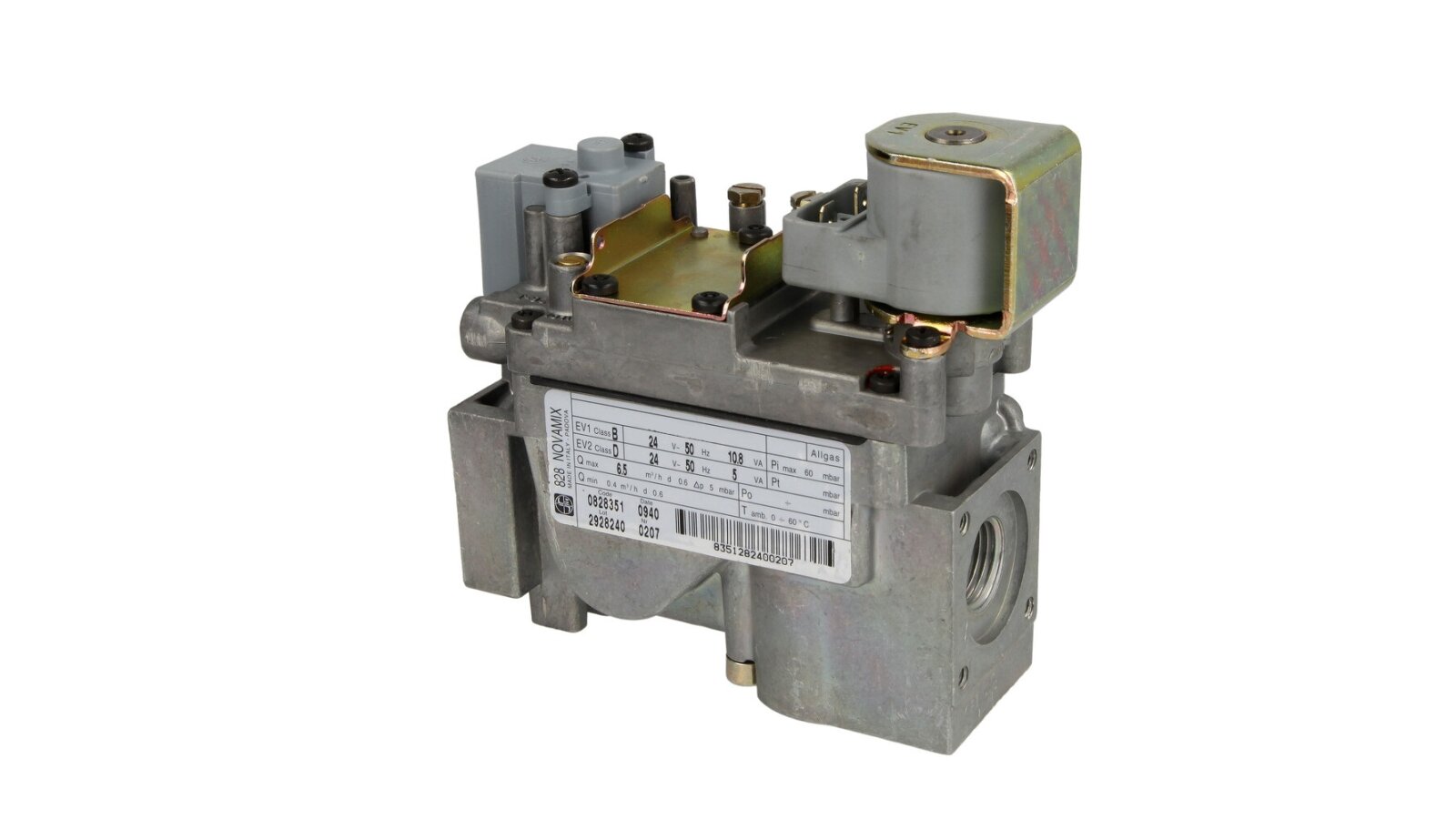

The Sit 828 NOVAMIX gas electromagnetic valve, art: 65323643 – is a combined shut-off device for automatic control and regulation of gas supply to a forced-air burner. It provides safe and tight shut-off of the flow, reliable operation of gas equipment.
Features of Sit 828 NOVAMIX:
- two normally closed electromagnetic valves of class B and D according to EN161;
- silent valve operation;
- pressure regulator for proportional regulation of gas pressure according to air pressure drop;
- pressure check points at the inlet and outlet;
- flow filtration at the inlet to protect the valves from damage and loss of tightness;
- additional gas outlet filter;
- application in systems consuming gas of the I..III family;
- connection to threaded flanges Rp 1/2 ISO 7;
- fast opening and closing of shut-off valves (≤ 1 sec.);
- installation in any position;
- for systems with gas pressure up to 60 mbar;
- easy access to settings from above;
- operating temperature range: 0..+60°C.
Please inquire with our specialists for additional options.
Characteristics
Manufacturer Part Number: 65323643Closing time: ≤ 1 sMaximum operating pressure: 60 mbarIntended for: gas boilers, heating boilers, atmospheric burnersOperating ambient temperature: from 0 to 60 °COpening time: ≤ 1 sPower consumption: 9.2 VASolenoid valves V1 and V2: Class BBurner type: one-stageVoltage: 220 VOutput connection: Rp 1/2"Input connection: Rp 1/2"
Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication
