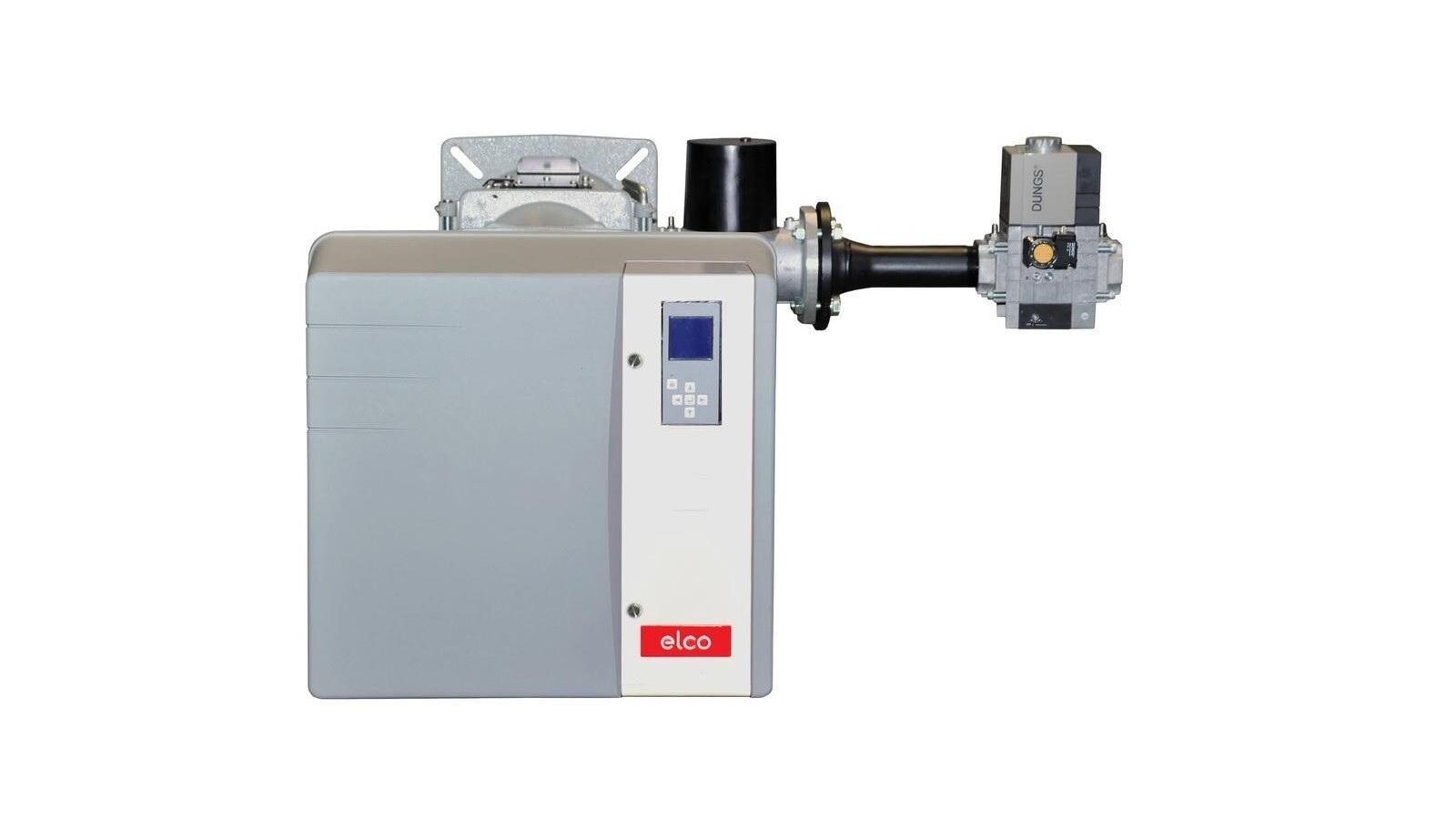

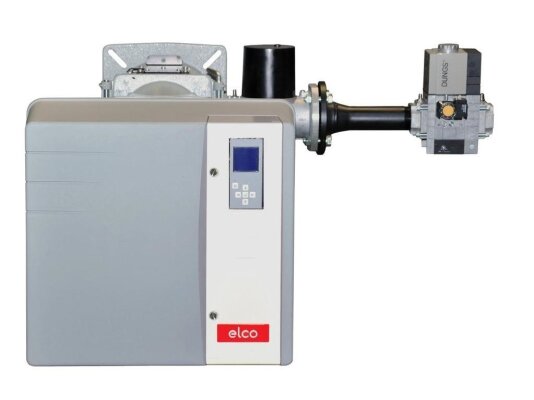

Elco VGL 6.2100 M KN d422 gas-oil burner

Elco3836684

Elco VGL 6.2100 M KN d422 combined burner, art: 3836684.

About product

Burner type комбинированнаяElectrical protection class IP 41Fuel type gas/dieselFlame pipe diameter 227 mmRamp gas pressure from 12 to 34 mbarCounterpressure from 0 to 12 mbar

Burners for heating boilers

Characteristics

Manufacturer Part Number: 3836684Burner type: комбинированнаяElectrical protection class: IP 41Fuel type: gas/dieselFlame pipe diameter: 227 mmRamp gas pressure: from 12 to 34 mbarCounterpressure: from 0 to 12 mbarGas ramp: d422 - 65 - DN65 /TCThe length of the flame pipe: 270 mmOperating temperature: from -10 to 60 °CNoise level: 79 dBElectrical power consumption: 3,400 WElectric motor: 2,700 WBurner power: from 480 to 2,050 kWFlame pipe type: shortVoltage: 220 VBurner type: electronically modulatedIncluded accessories: with a combustion head, with a gas rampNominal diameter: DN 65

Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication

Accessories and spare parts

This product is from the collections

Burners for heating boilers

Elco

Brand

Italy — home of the brand

Packaging information

Weight, kg:: 104
Width, cm:: 59.2
Height, cm:: 55.3
Length, cm:: 132
