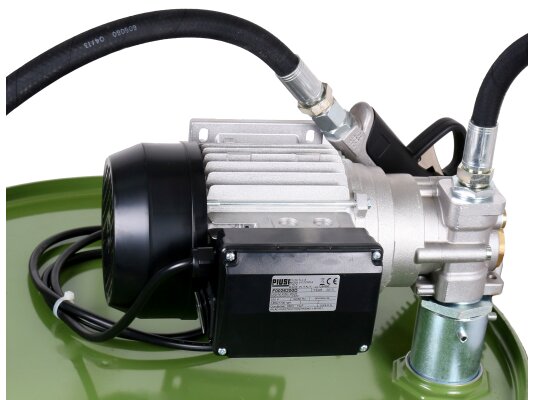

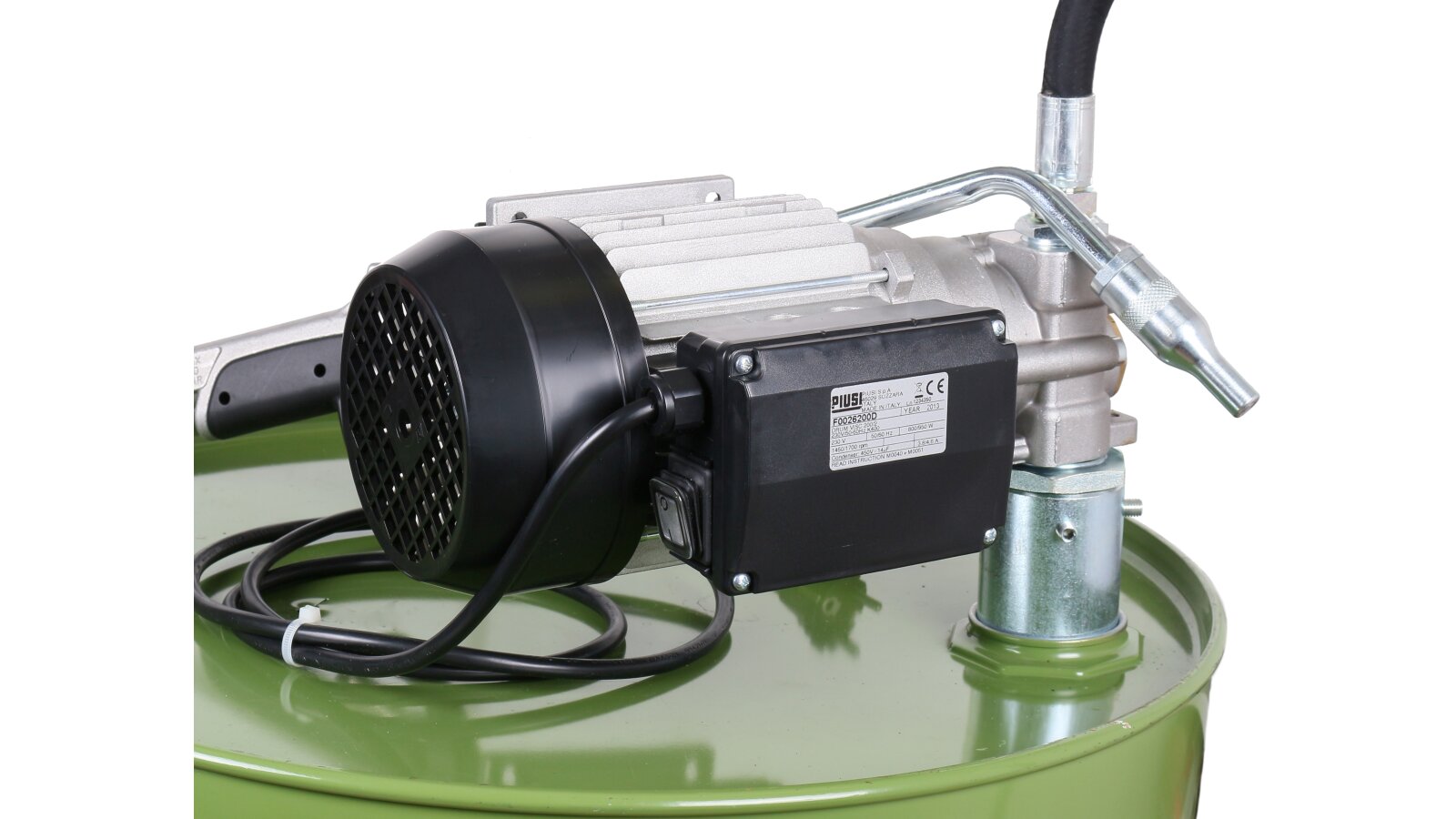

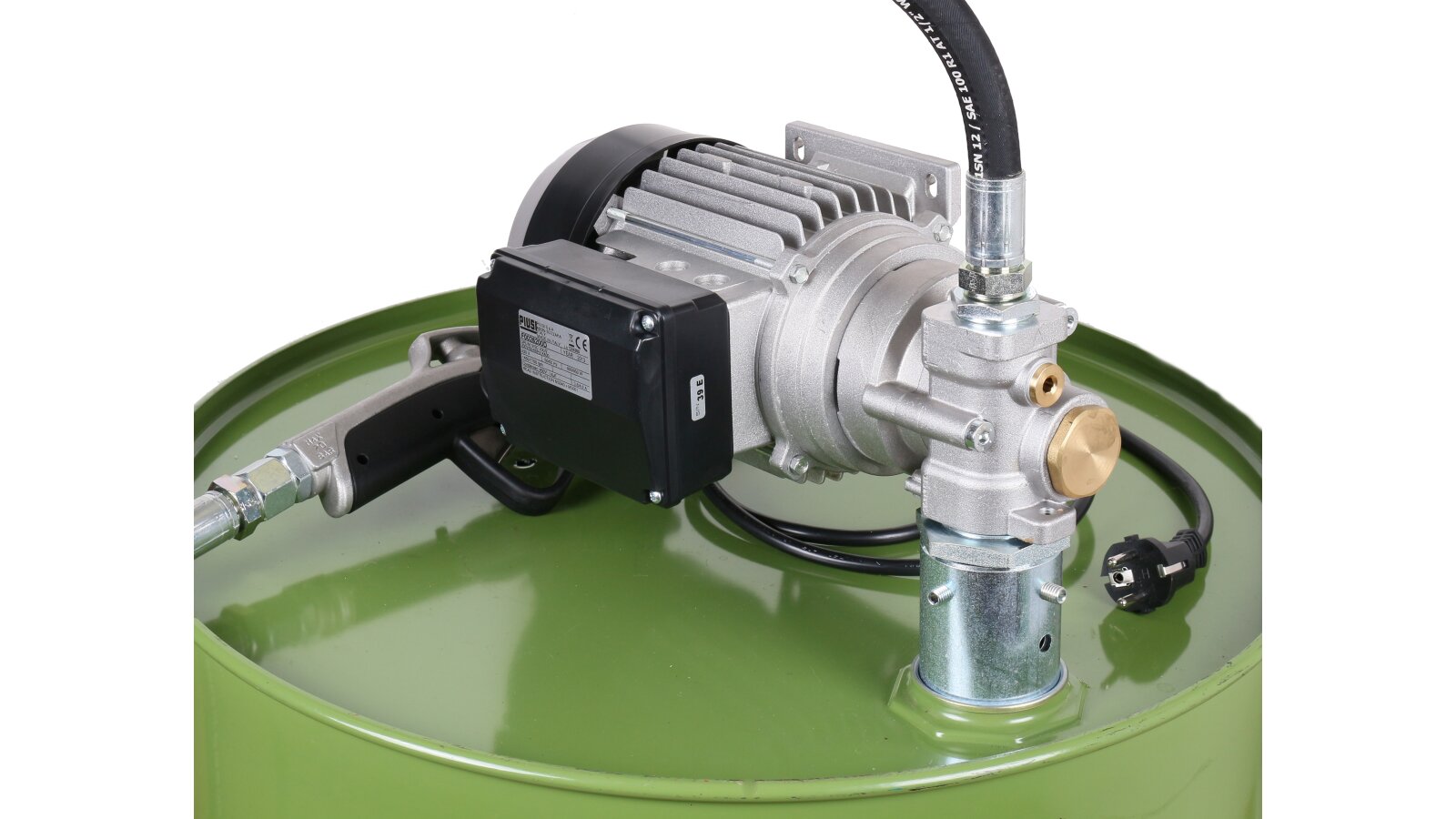

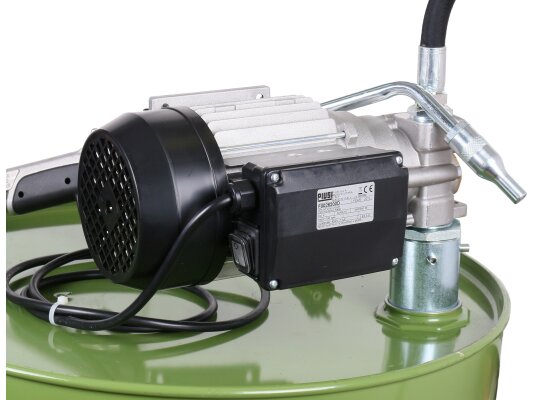

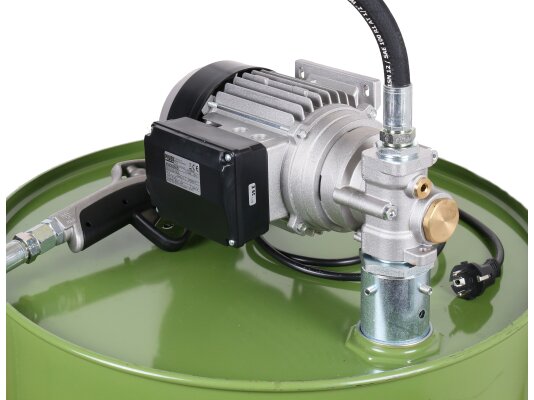

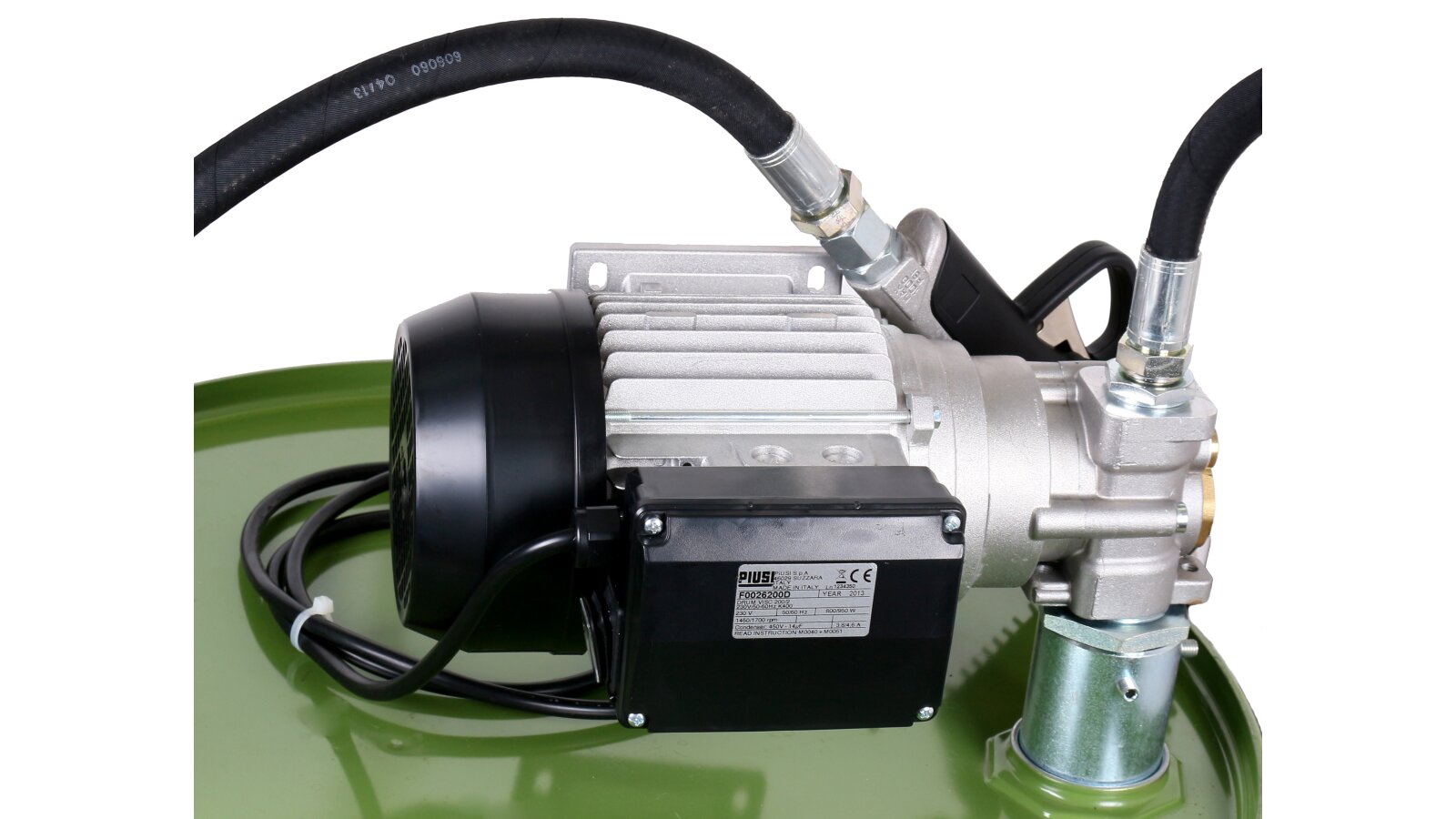

The oil pumping kit with Drum Viscomat 200/2 M pump can be used to dispense liquids with a viscosity of up to 2000 cSt. The dispensing rate is 9 l/min. The mobile station is designed for individual use. The working medium is engine, transmission, hydraulic oil.
Design and features
The filling module is installed on a drum or tank with the working medium. The open unit is well protected from moisture and dust – IP55 class. The device requires a 220 Volt power supply.
This module includes:
- self-priming vane pump with a power of 800 W;
- 4-meter dispensing hose with a diameter of 3/4 inch;
- manual gun;
- 2-meter power cable;
- telescopic suction tube;
- switch with backlight;
- gun holder to maintain cleanliness in the work area.
The engine is reliably protected from overheating, which ensures continuous operation without limitations on operating time.
The pump is equipped with a bypass valve to protect the working units from premature wear and failure when the flow is temporarily blocked by the gun.
The complex is installed on a drum with the working medium. The equipment with a suction tube simplifies the use of the pumping unit and prevents contamination of the working medium.
Advantages:
- thermal engine protection for operation without cooling stops;
- 4-meter rubber hose for dispensing oil;
- fuel gun holder;
- uninterrupted service;
- telescopic suction tube for mounting on a drum;
- high level of dust and moisture protection;
- full package.
Operating parameters
The dispensing station provides oil supply at a distance of up to 5 m. The suction height reaches 2 meters. Recommended temperature of the pumped liquid: from +5 to +45 degrees. These characteristics are ideal for non-commercial use. You can buy the oil pumping kit with Drum Viscomat 200/2 M pump, art. F0026100D – a worthy offer from PIUSI at an affordable price.
