Description

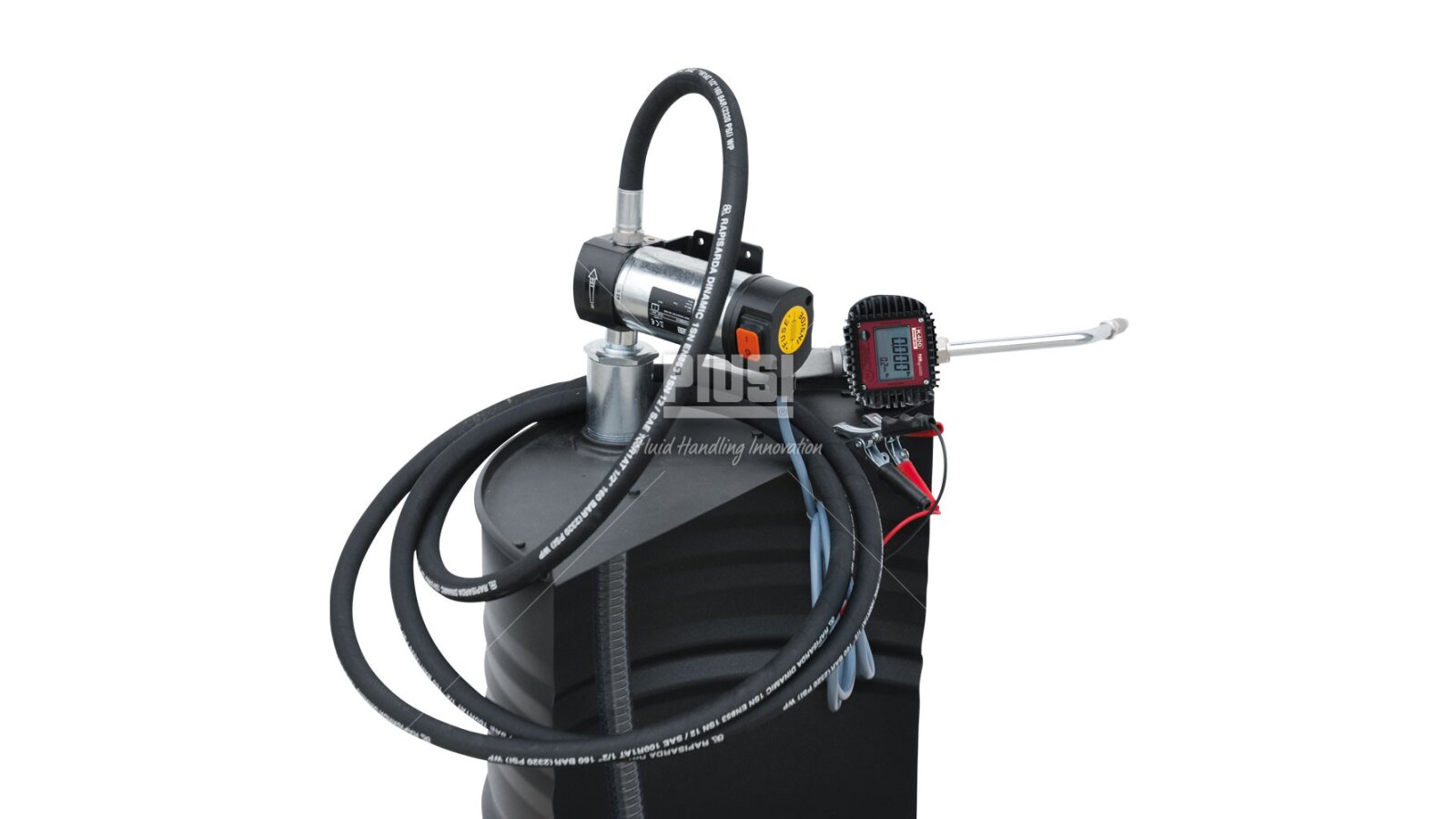

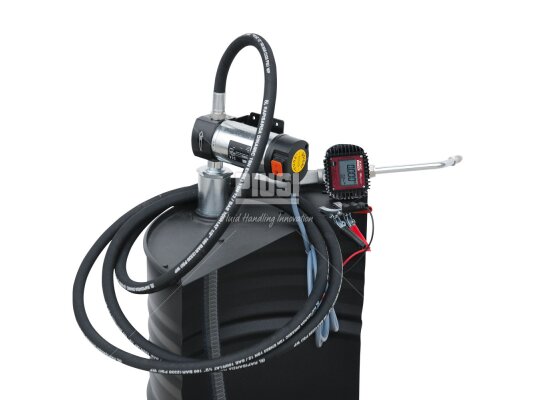

The Drum Viscomat 60/1 24V K400 oil pumping kit with pump is equipped with a high-precision (99.5%) electronic meter to monitor current refueling operations and calculate total consumption. A feature of the model is autonomous operation without the need to connect to a stationary power grid. The mini-column operates from a 24 V car battery. The kit includes a telescopic suction tube, which allows you to easily connect the pump to a barrel or other reservoir.
Completeness and features
The compact unit is equipped with all the necessary components to create a mobile dispensing point. The mini-column includes:
- a self-priming 150 W vane pump;
- an electronic meter with an accuracy of 0.5% with two counting scales (resetting and cumulative);
- an electric motor with dust/moisture protection (IP55 class);
- a 4-meter antistatic rubber hose;
- a dispensing gun;
- a telescopic suction tube;
- a gun holder to maintain the cleanliness of the refueling area.
The bypass valve in the pump design allows you to not disconnect the equipment from the network even with the dispensing valve closed.
Operating conditions and parameters
The refueling module is designed for pumping transmission, engine, hydraulic oil with a viscosity of up to 2000 cSt, the temperature of which corresponds to the range: from +5 to +45 degrees. The maximum head is 5 meters, the suction height is 3 m.
After 30 minutes of continuous operation, the pump must be turned off until the engine has cooled down completely.
Advantages:
- easy installation on the reservoir;
- autonomous operation;
- reliable dust and moisture protection;
- the ability to account for current operations and total consumption;
- full package;
- equipment with a dispensing gun holder;
- long hose for convenient oil dispensing.
To equip remote service points for equipment and machinery, we offer to buy the Drum Viscomat 60/1 24V K400 oil pumping kit with pump, art. F00268010 – an affordable solution for private use.
