Piusi fuel and oil filter 100 l/min, 5 μm

Piusi filter for fuel and oil 100 l/min, 5 micron art. F09149020 guarantees reliable protection of the fuel system of serviced vehicles and equipment from the effects of mechanical impurities. The filter filters out even small inclusions, sized from 5 microns, providing high-quality cleaning of oil products: diesel fuel, gasoline, oil. This model is designed for use in systems with a maximum flow rate of 100 l/min.

Features and characteristics

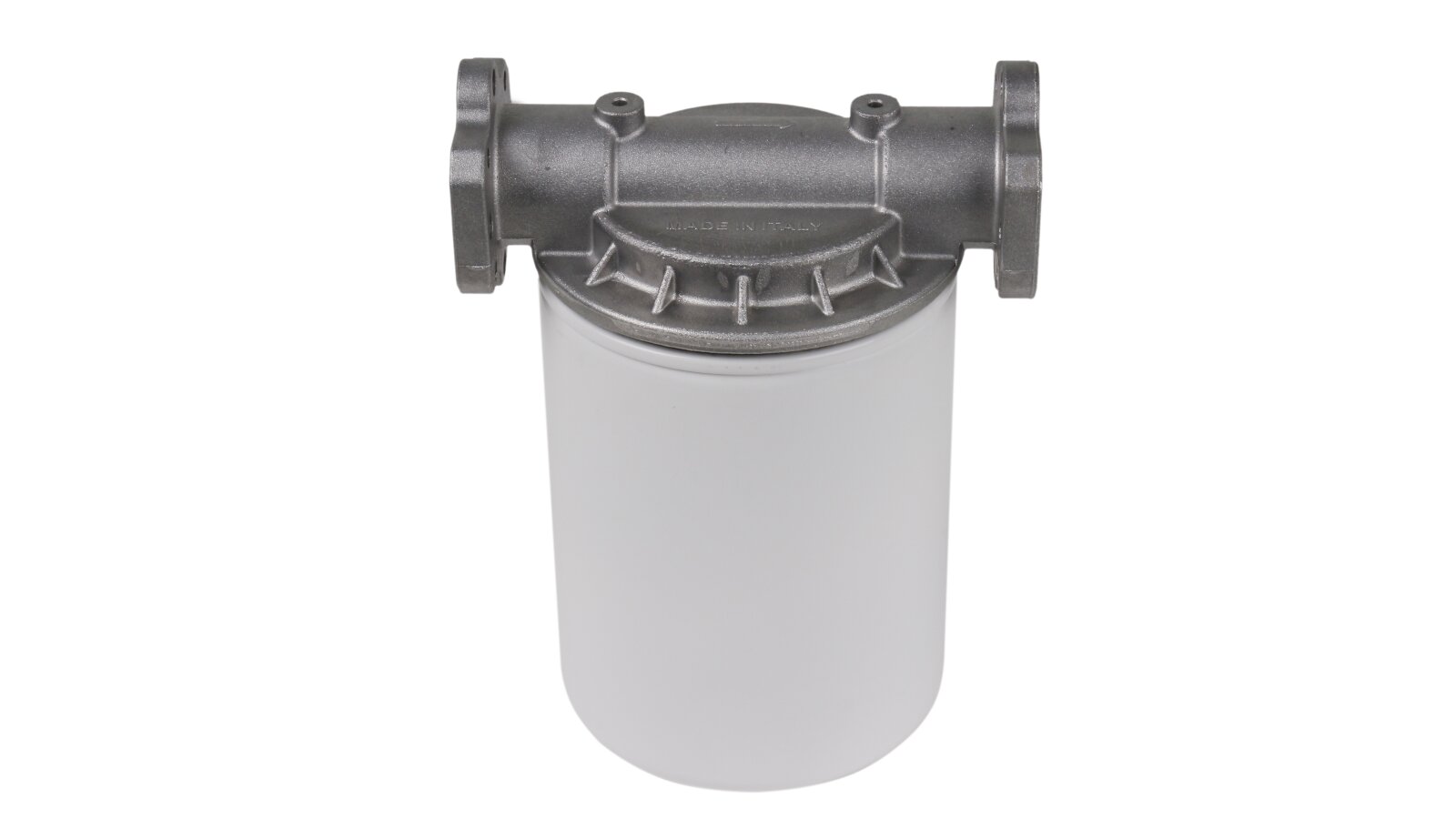

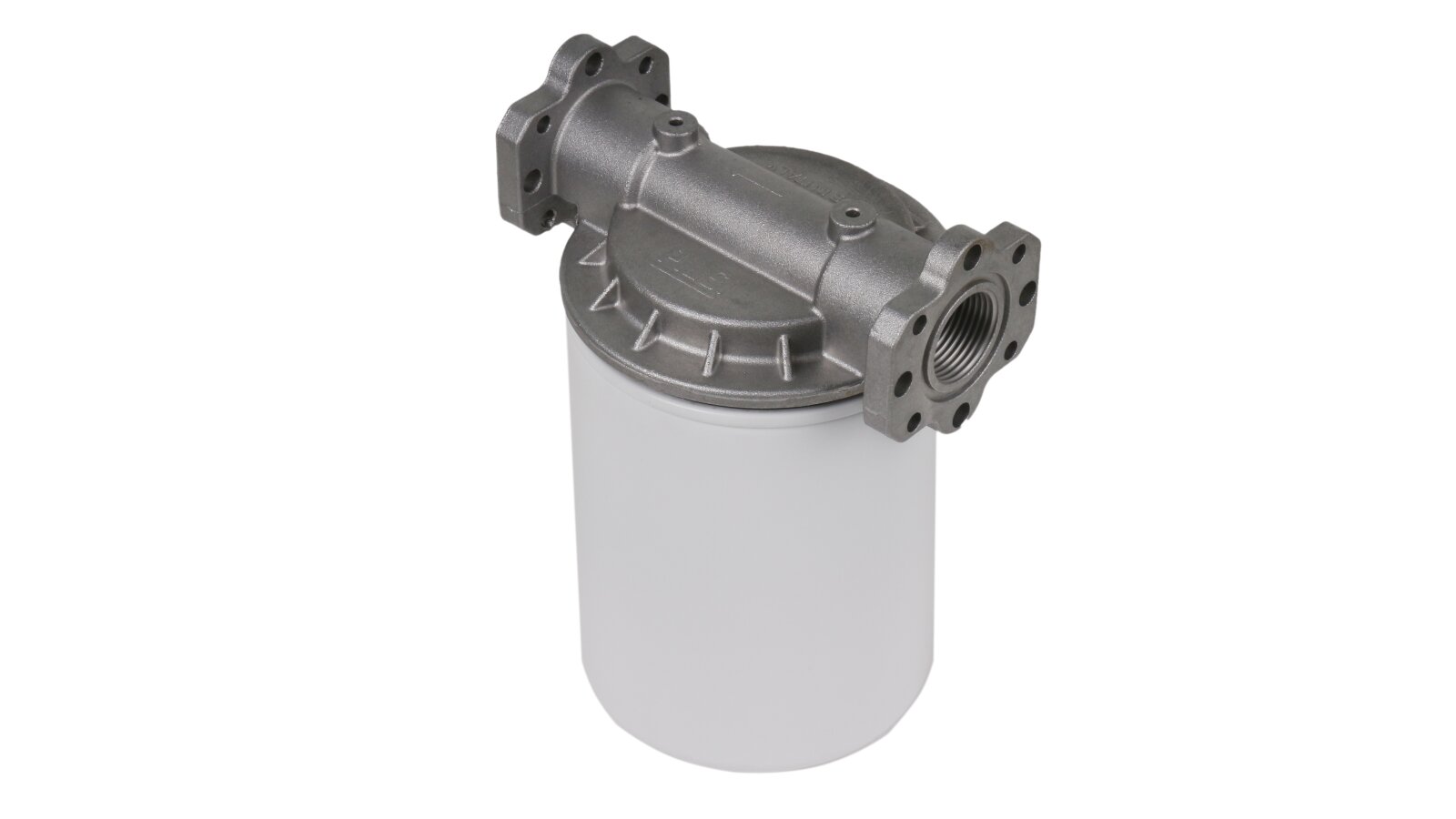

• The cartridge filter design is non-separable, made of high-quality metal. Inside the cylindrical body is a filtering element.

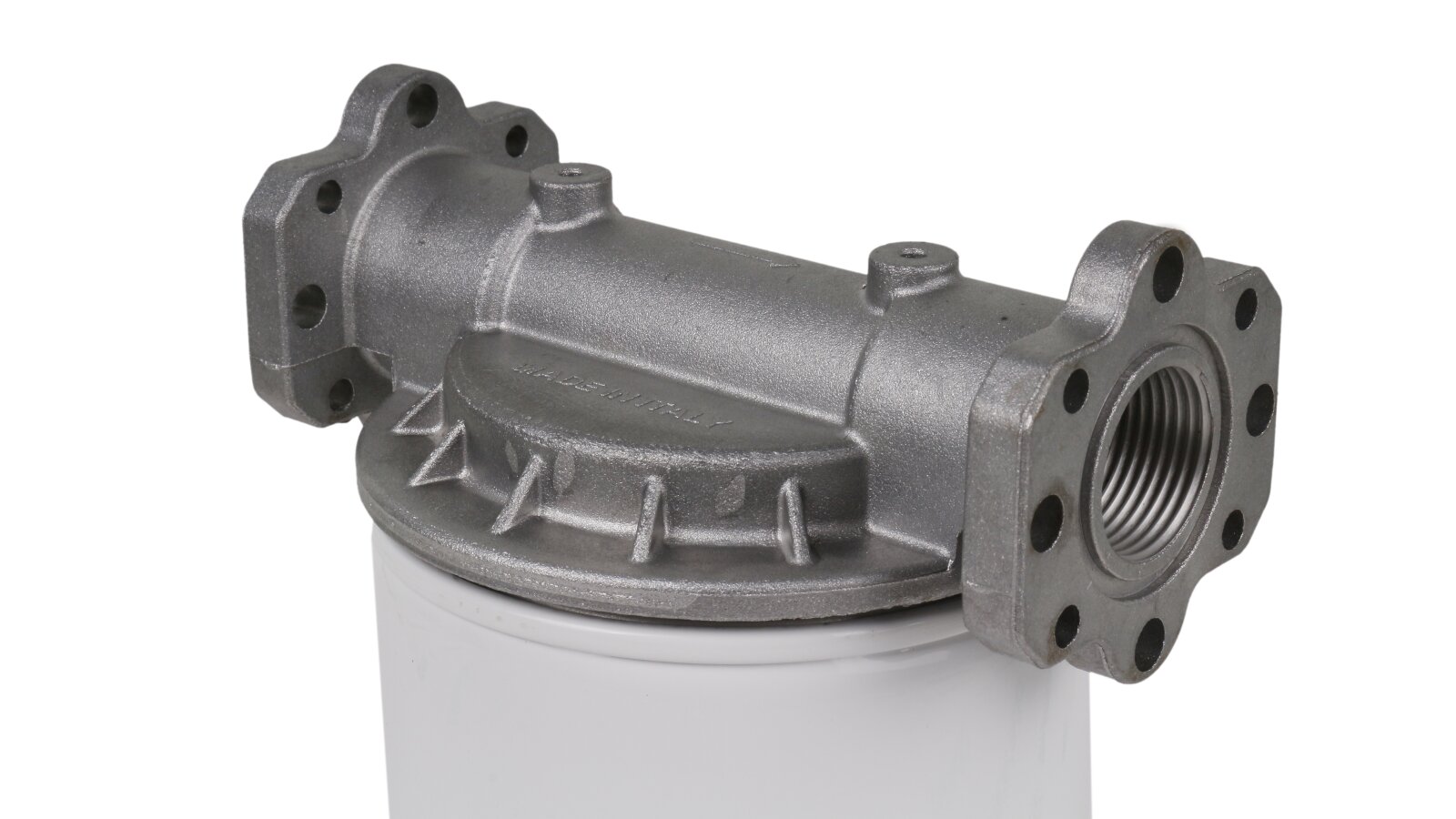

• The filter is mounted in the delivery part of the fuel dispensing system. Before installing the cartridge, a special adapter should be built into the line, onto which the filter is then screwed.
• This model is designed for an internal system pressure of no more than 12 atmospheres. The diameter of the inlet-outlet opening is 25 mm.

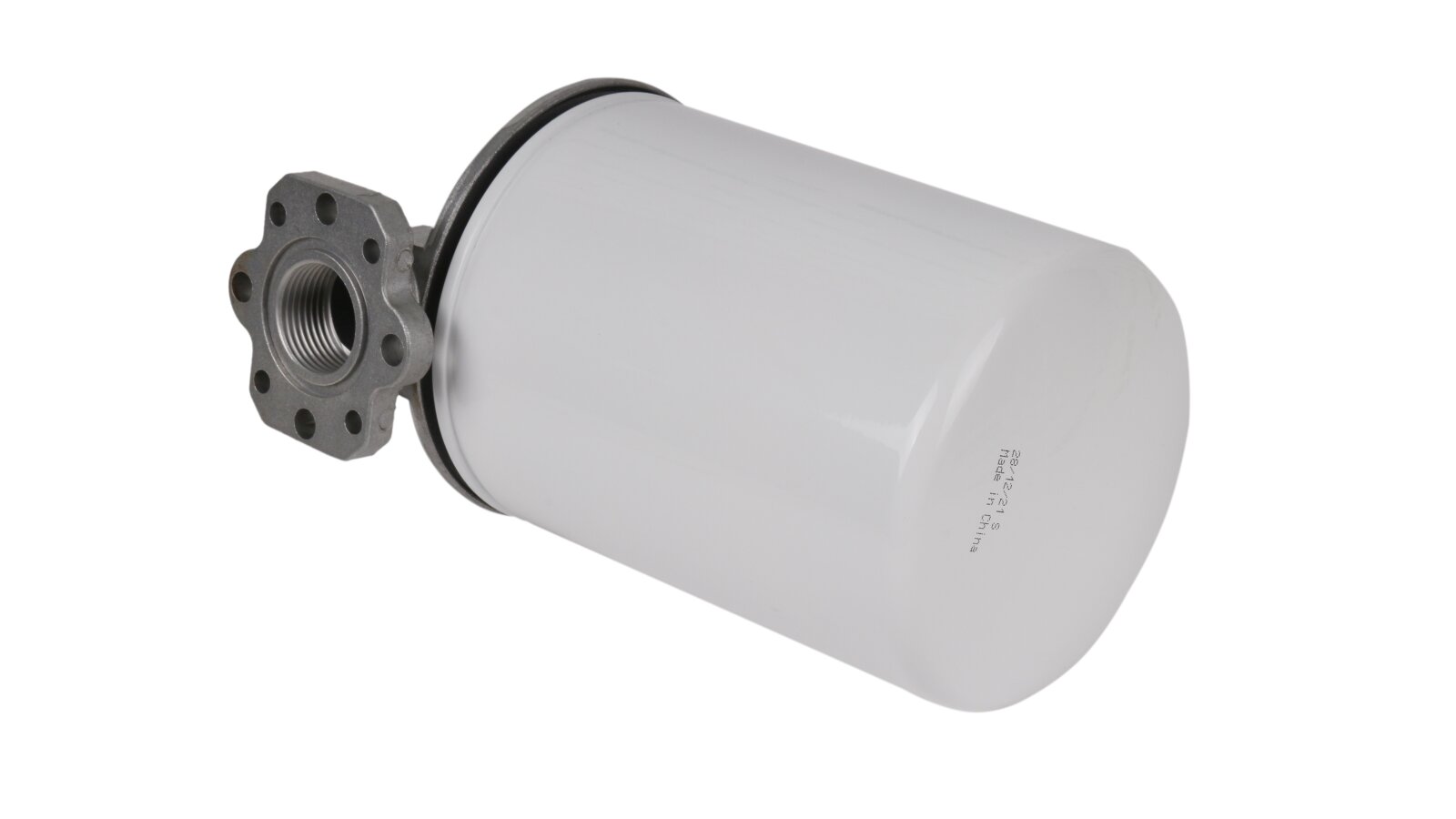

• The cartridge has a non-separable body. In case of clogging, it should be replaced with a new filter element. To remove, simply unscrew the filter from the adapter.
• To increase the service life of the 5-micron filter, the manufacturer recommends installing an additional coarse mesh filter on the suction line to contain large mechanical contaminants.

Advantages:

• effective removal of impurities from 5 microns;
• versatility – cleaning of gasoline, diesel fuel, oil;
• high dispensing intensity;
• use for a wide range of dispensing equipment;
• screw-on cartridge design.

We offer to buy a filter for diesel fuel, gasoline and oil Piusi filter for fuel and oil 100 l/min, 5 micron. An excellent solution to improve the quality of fuel and use in fuel dispensing systems for various purposes.
