Description
The Italian diesel pump operates from a 220 V source and pumps up to 72 liters of diesel fuel per minute. It is used in stationary refueling units and has no installation location restrictions.
Execution

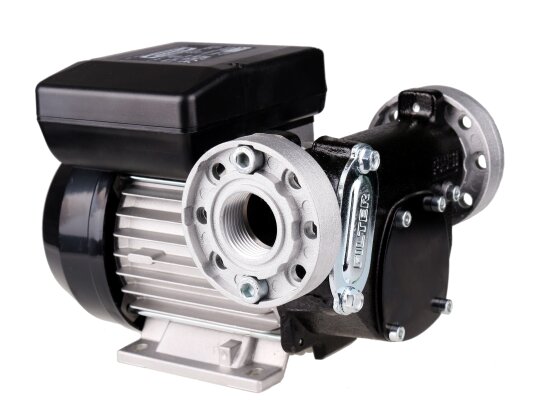

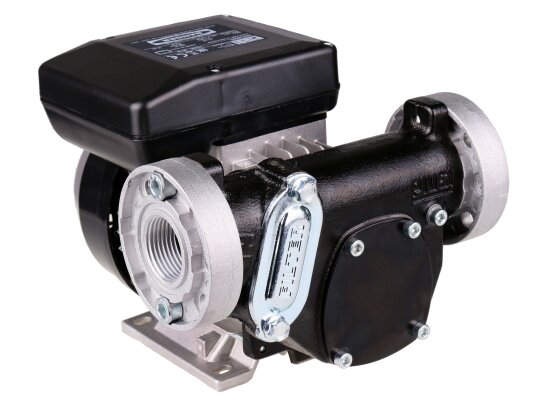

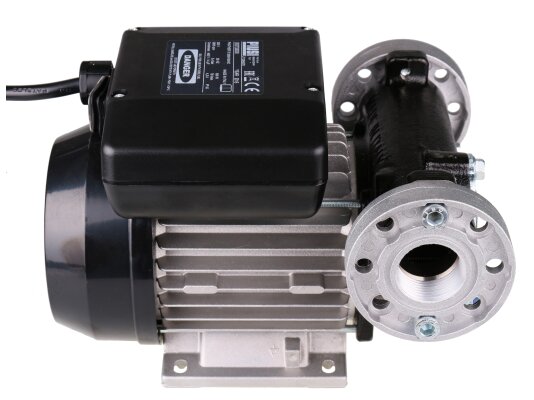

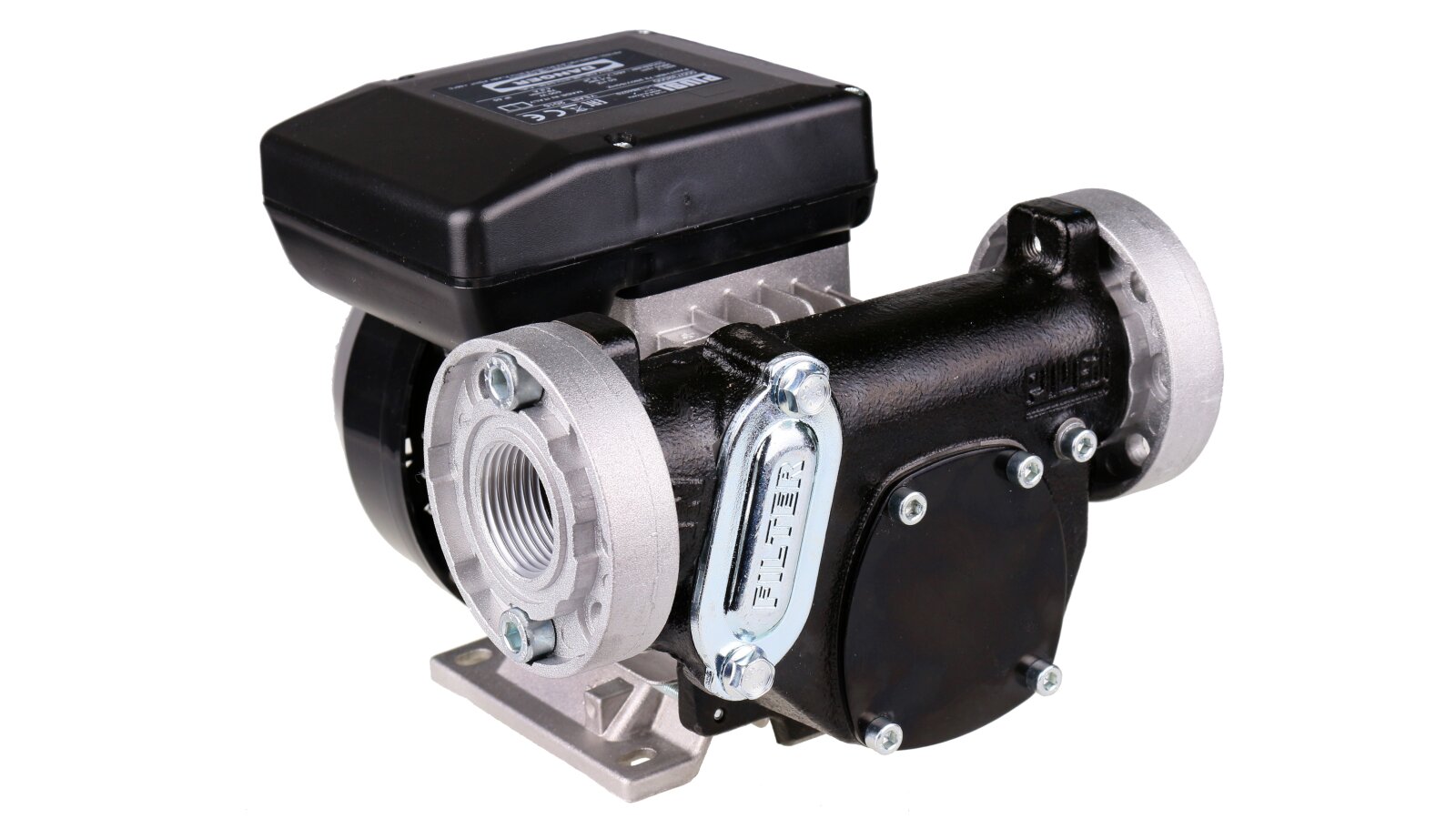

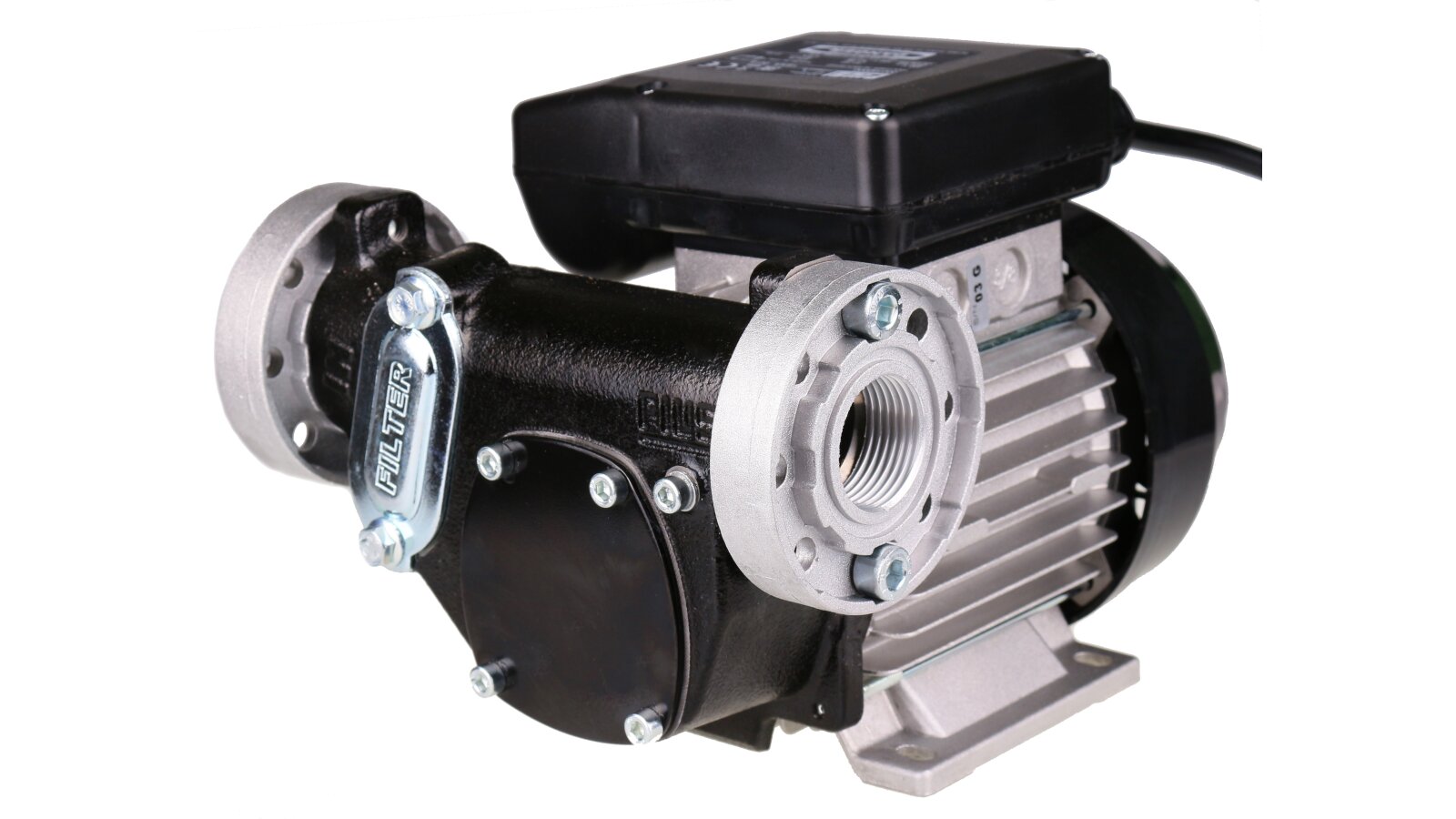

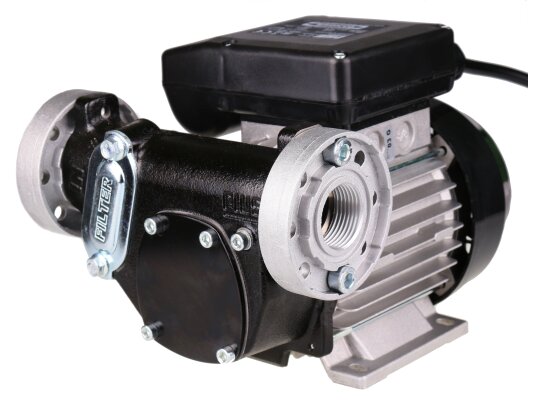

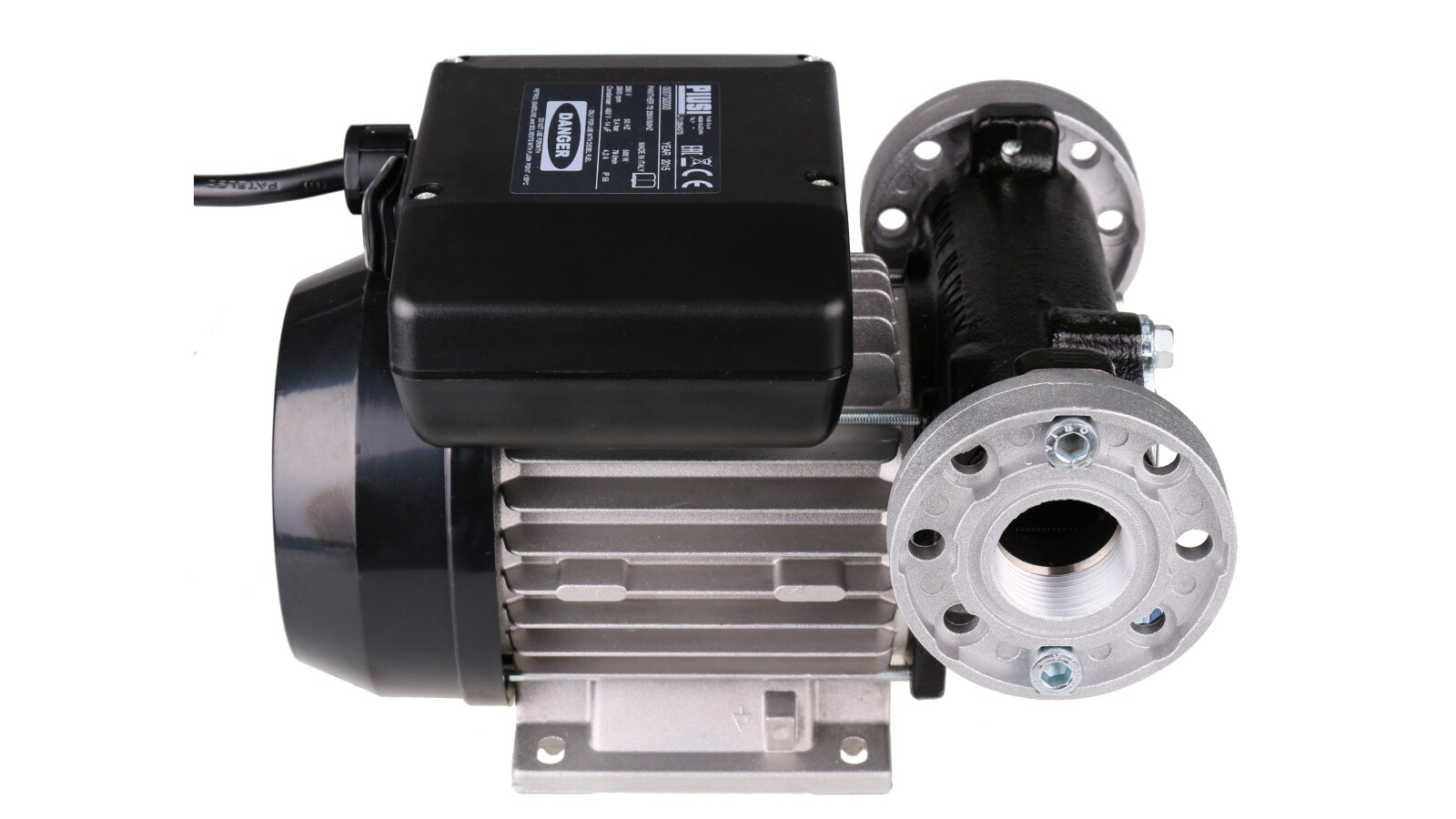

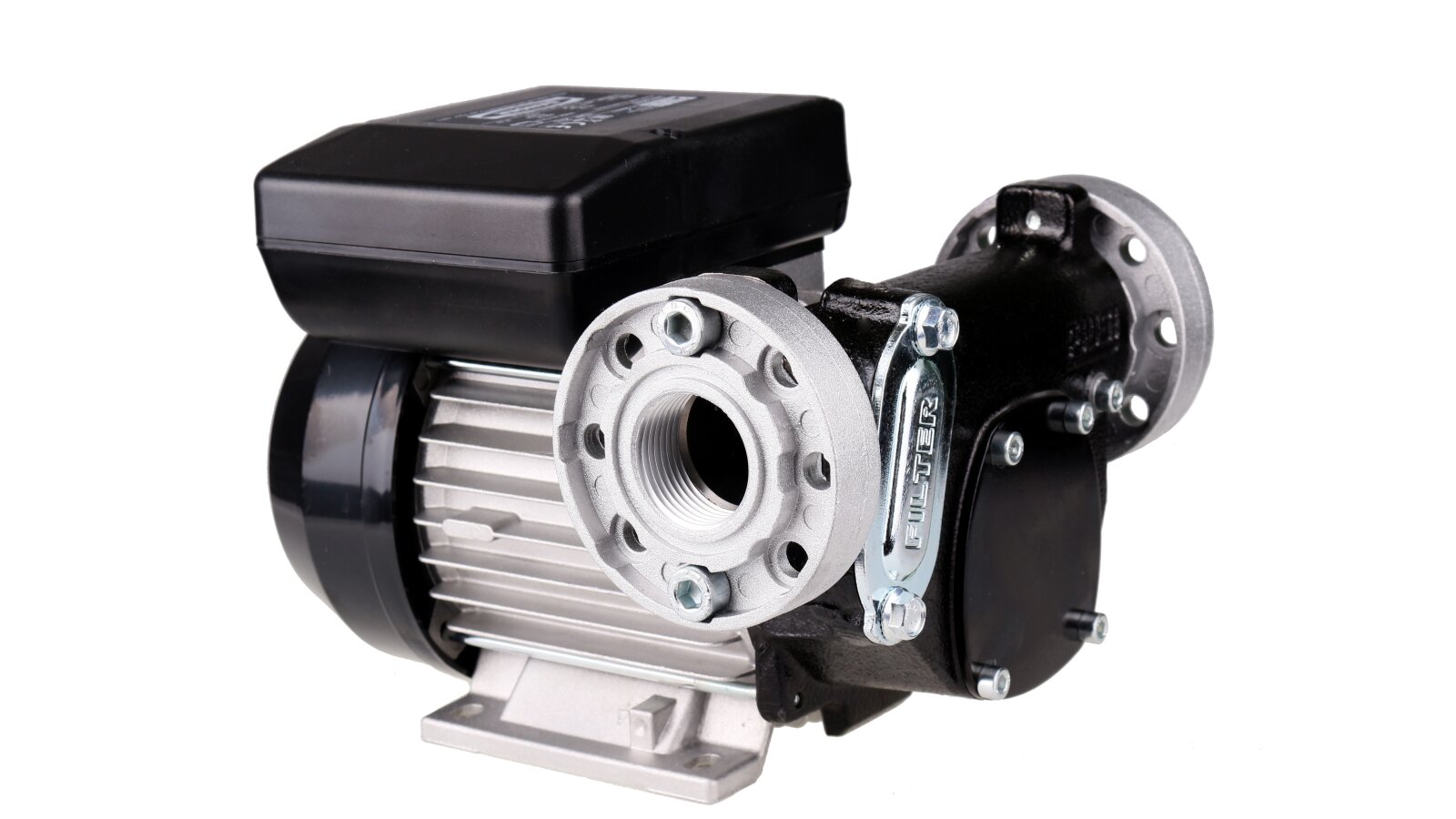

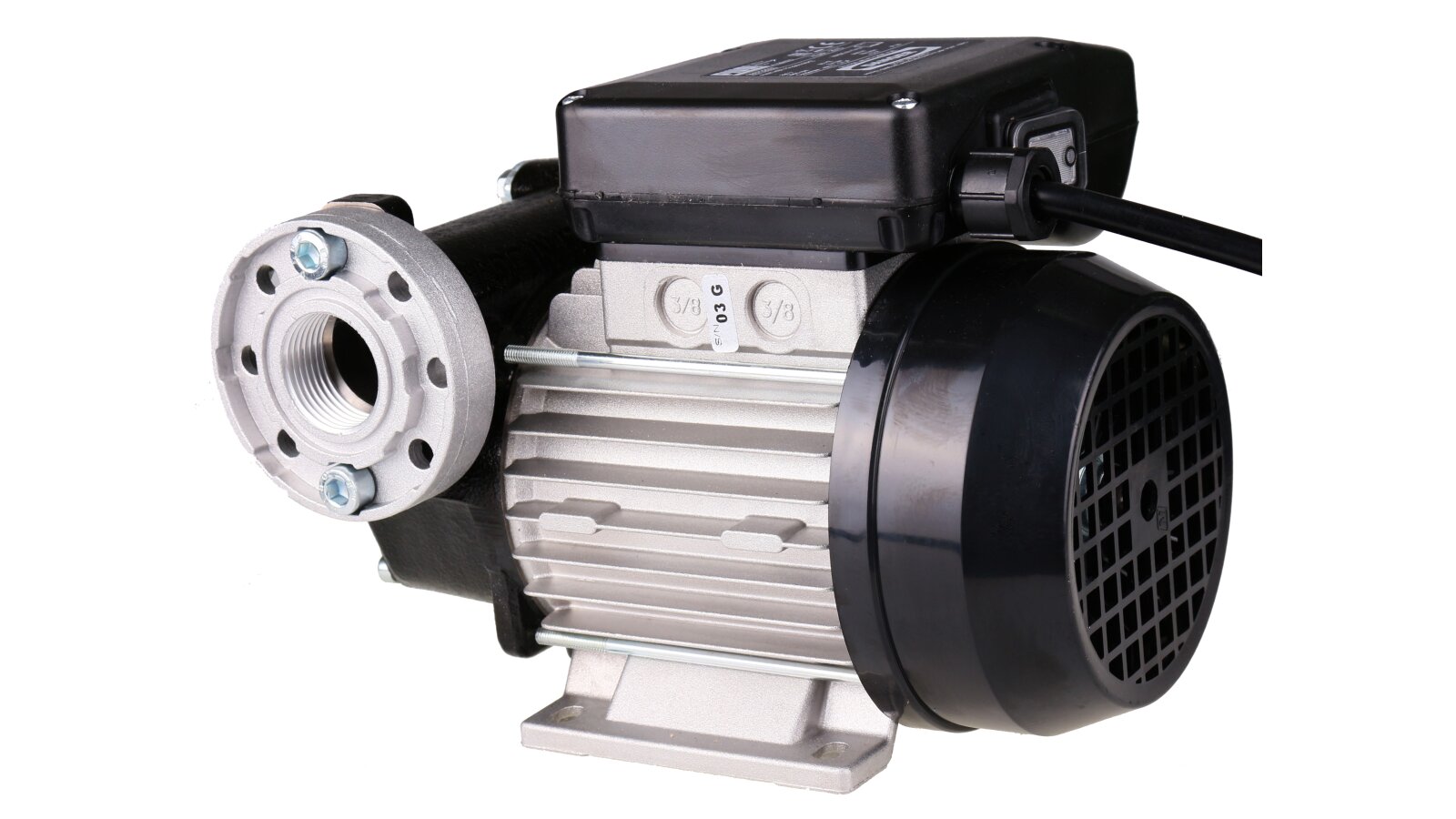

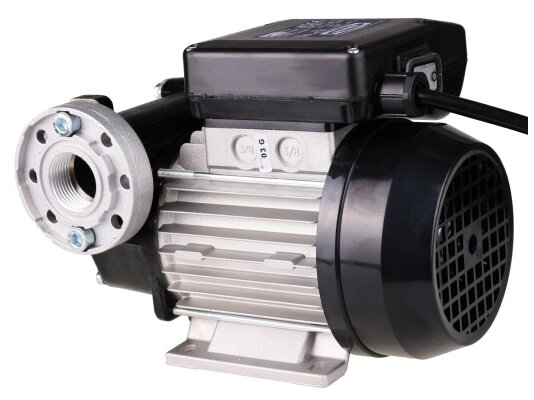

Piusi Panther 72 is a self-priming rotary vane diesel pump. It has a cast iron body with high sealing, a steel rotor and polyacetal vanes. The motor is induction, in an aluminum body. Reliable overheating protection allows the pump to be used for a long time.
The built-in bypass valve provides fuel circulation inside for up to 3 minutes from the moment refueling is interrupted to shutdown or the next pumping. This design prevents premature wear of the vanes.
The inlet and outlet openings are threaded, with a diameter of 25 mm (1 inch). Flanged connection is possible. Flanges are included in the delivery set.
Model advantages
The main advantages of the Panther 72 diesel pump are high performance, reliability, and long service life. The built-in filter cleans diesel fuel from large fractions, thereby extending the service life of the equipment.
The pump is all-weather and has a high degree of dust and moisture protection, and does not lose performance at low temperatures. It operates reliably at temperatures down to -40 degrees.
Additional options
Flow meter, hoses of the required length, fuel tap, fine filter – all this can be ordered additionally to assemble a complete diesel fuel refueling unit.
