Description

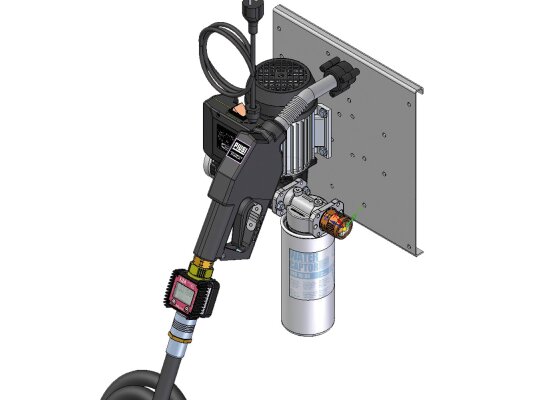

The Piusi ST Panther 72 Filter universal fuel dispensing unit with an automatic refueling nozzle and a holder for it has been developed by the Italian company — a leader in innovative technologies.
The mini-fueling station is widely used for pumping diesel fuel in fuel warehouses and is designed to be completed with underground tanks, as well as mobile distribution units. It requires a 220 V electrical network to operate.
Design elements:
- induction motor with a power of 500 W and a maximum load of 4.2 A;
- self-priming centrifugal pump Panther 72 with a bypass valve in a cast iron housing with a capacity of 70 l/min;
- turbine meter Meter K24 AL with a digital display;
- automatic fuel dispensing nozzle with a holder and a 6 m high-pressure hose;
- fine filter with water separation function.
Thermal protection will protect the electrical part from overload when the fueling column operates in a maximum performance mode.
The impeller made of acetal resin and the steel shaft contribute to the reliable operation of the pump for a long time.
The Meter K24 AL flow meter has a 5-digit resettable scale, a measurement error of ±1% and a sealed housing, which will allow the device to be used outdoors in any weather conditions.
Advantages of Piusi ST Panther 72 Filter:
- high reliability and functionality of the device;
- wear resistance of structural elements;
- rotating coupling, preventing twisting of the dispensing hose;
- reliable flanged connection of the Panther 72 pump with structural elements using gaskets will allow the module to operate at low ambient temperatures;
- standard thread for connecting the hose — ¾".
The self-priming pump model does not need forced filling with working fluid and has an increased margin of safety.
The ST Panther 72 Filter + K24 meter fuel distribution unit is a functional mini-fueling station that meets international fire safety requirements. The column is intended for non-commercial use only.
