Characteristics

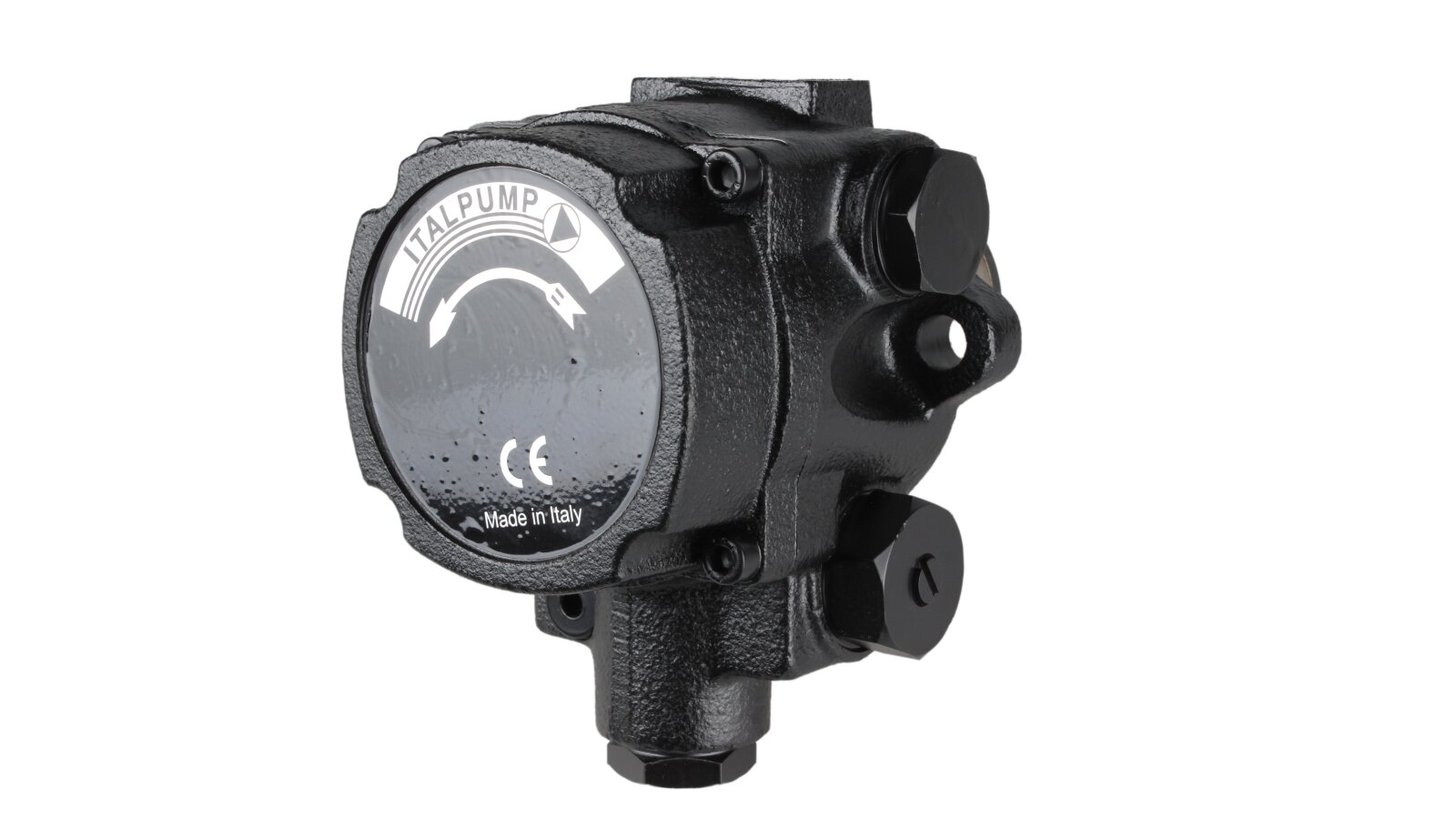

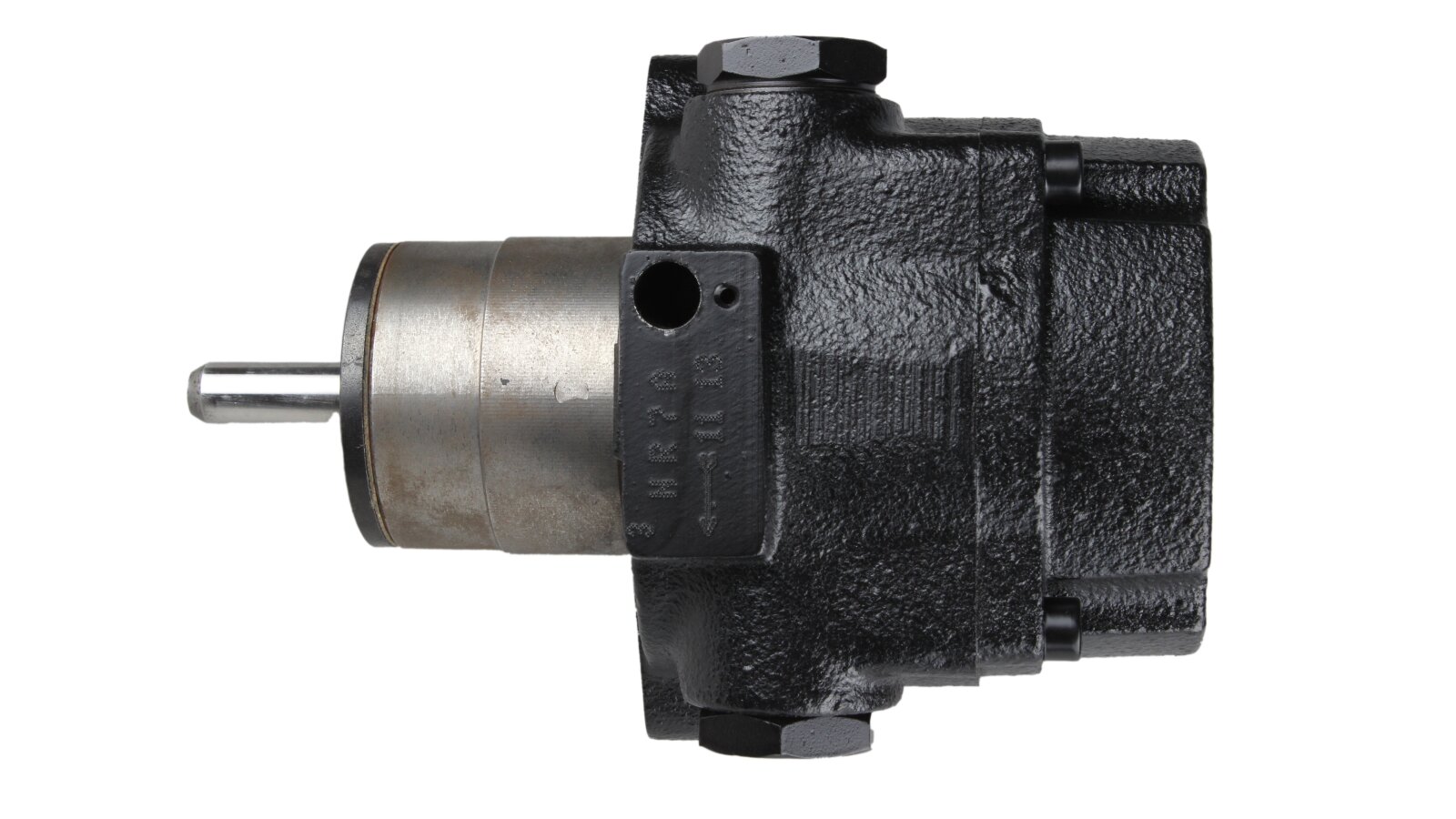

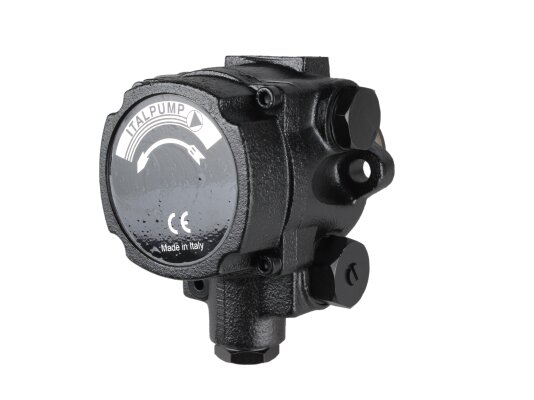

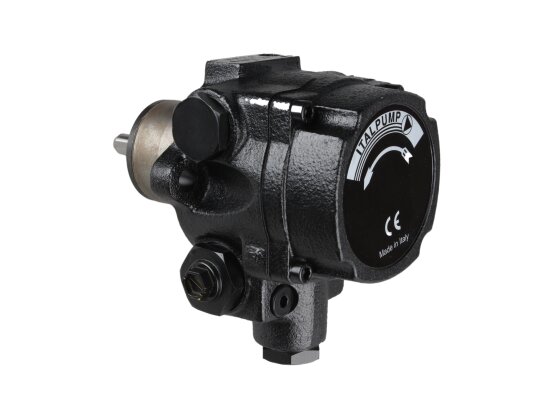

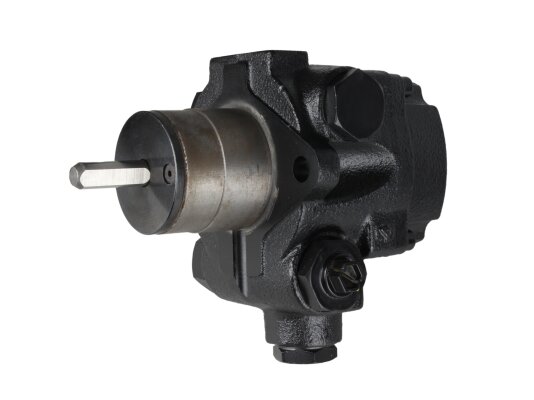

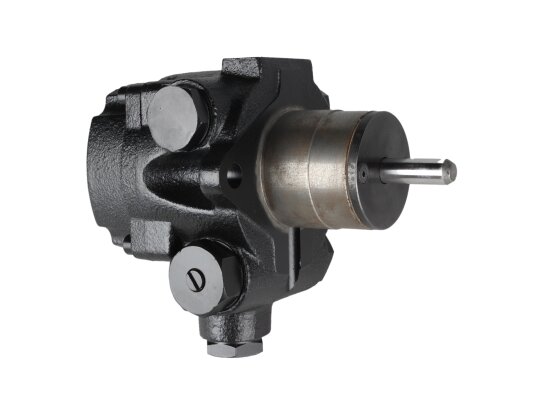

Manufacturer Part Number: 3012577Installing the bypass plug: P: bypass plug installed in return line for two-pipe systemPerformance at 20 bar pressure and 20 cSt viscosity: 390 l/hFuel consumption: 390 l/hSolenoid valve voltage: 220-240V~, 50-60HzVacuum gauge port: ½ inchPressure gauge port: ⅛ inchTorque: 0.35 N·mMaximum rotation speed: 3,480 rpmNominal rotation speed: 2,800 rpmStrainer: Open area: 142 cm²Strainer: Opening size: 400 µmModel type: without electromagnetic valveOil temperature: from 70 to 120 °C in the pumpFactory pressure setting: 20 barNozzle pressure range: from 7 to 28 barSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ½ inchNozzle outlet: ¼ inchInstallation method: flange ⌀54 mmType of pumped liquid: sea waterConnection type: G 1/2"Direction of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the right
Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication
