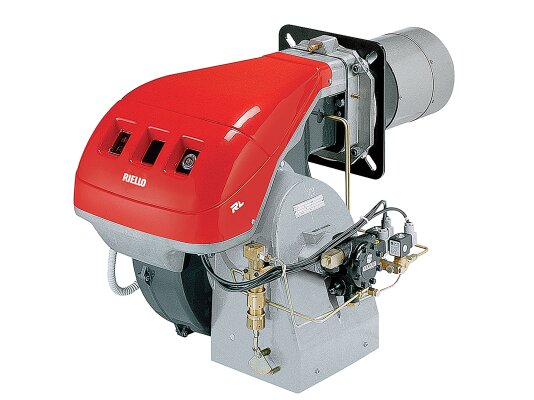

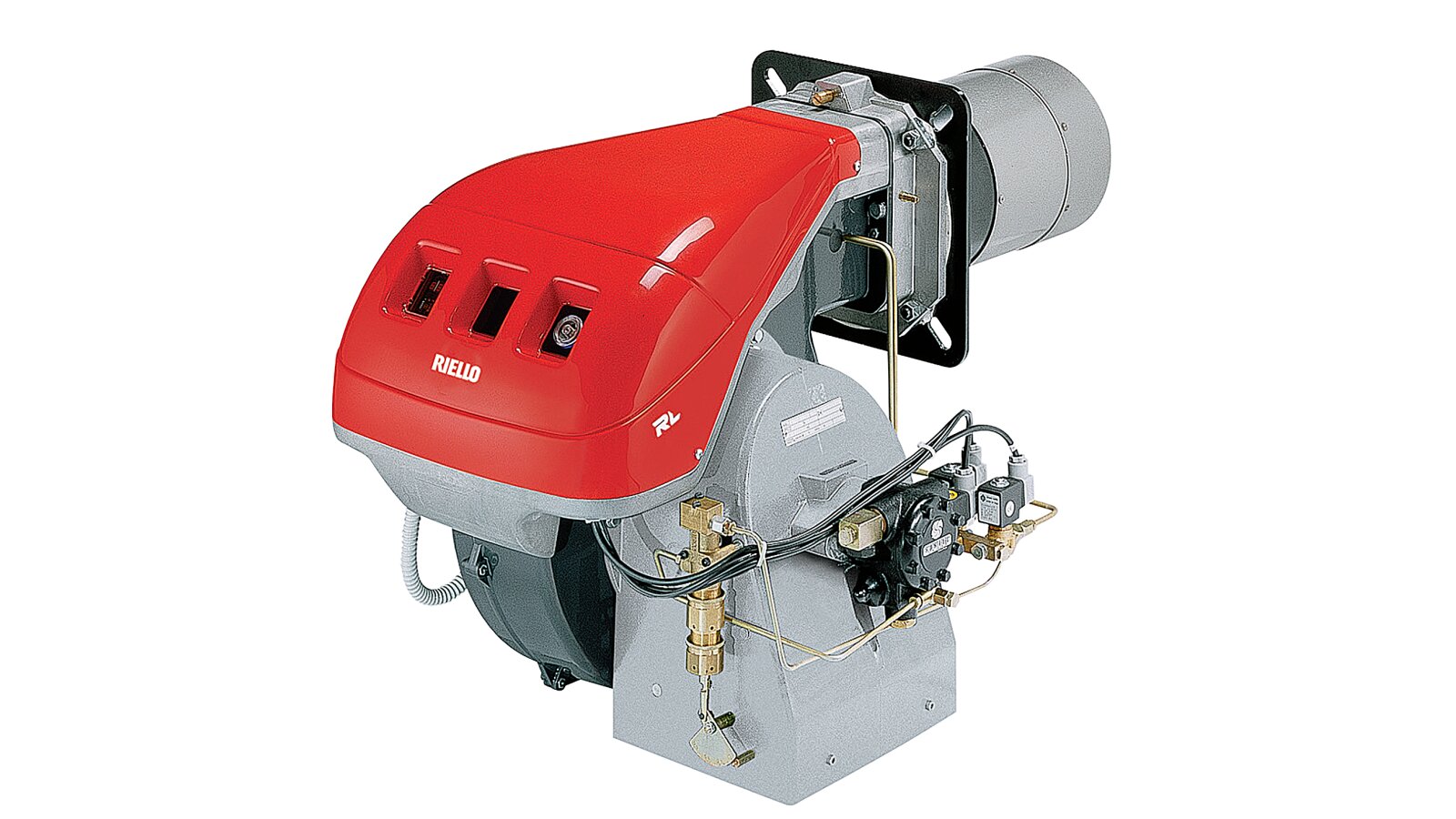

Riello RL 190 TC FS1 diesel burner

Riello3475613

Alternative Part Number

Riello 3475612

Riello RL 190 TC FS1 diesel burner, art: 3475613

About product

Fuel type dieselElectrical protection class IP44Fuel consumption 64 - 206 kg/hFlame pipe diameter 222 mmCounterpressure from -0.9 to 17 mbarThe length of the flame pipe 370 mm

Burners for heating boilers

Characteristics

Manufacturer Part Number: 3475613Fuel type: dieselElectrical protection class: IP44Fuel consumption: 64 - 206 kg/hFlame pipe diameter: 222 mmCounterpressure: from -0.9 to 17 mbarThe length of the flame pipe: 370 mmBurner power: from 759 to 2,443 kWOperating temperature: from 0 to 40 °CNoise level: 83.9 dBElectrical power consumption: 5,870 WBurner type: two-stageIncluded accessories: with a combustion headFlame pipe type: standardVoltage: 380 V

Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication

Accessories and spare parts

This product is from the collections

Burners for heating boilers

Riello

Brand

Italy — home of the brand

Packaging information

Weight, kg:: 70
Width, cm:: 75.6
Height, cm:: 55.5
Length, cm:: 108.2
