Description

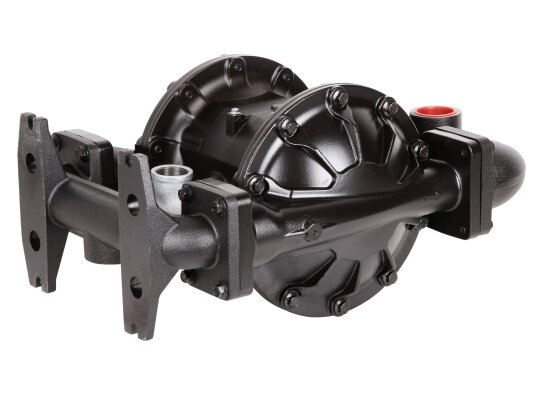

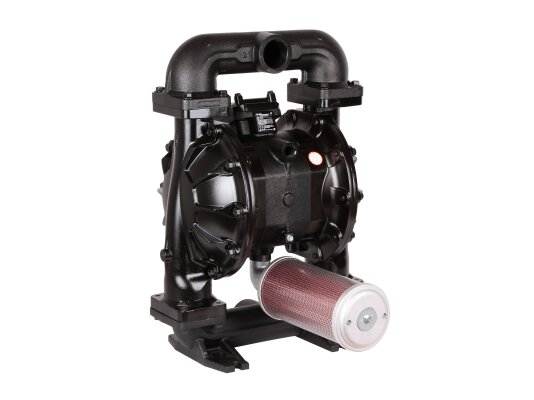

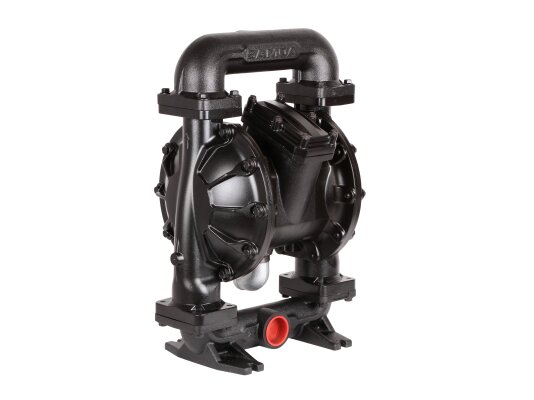

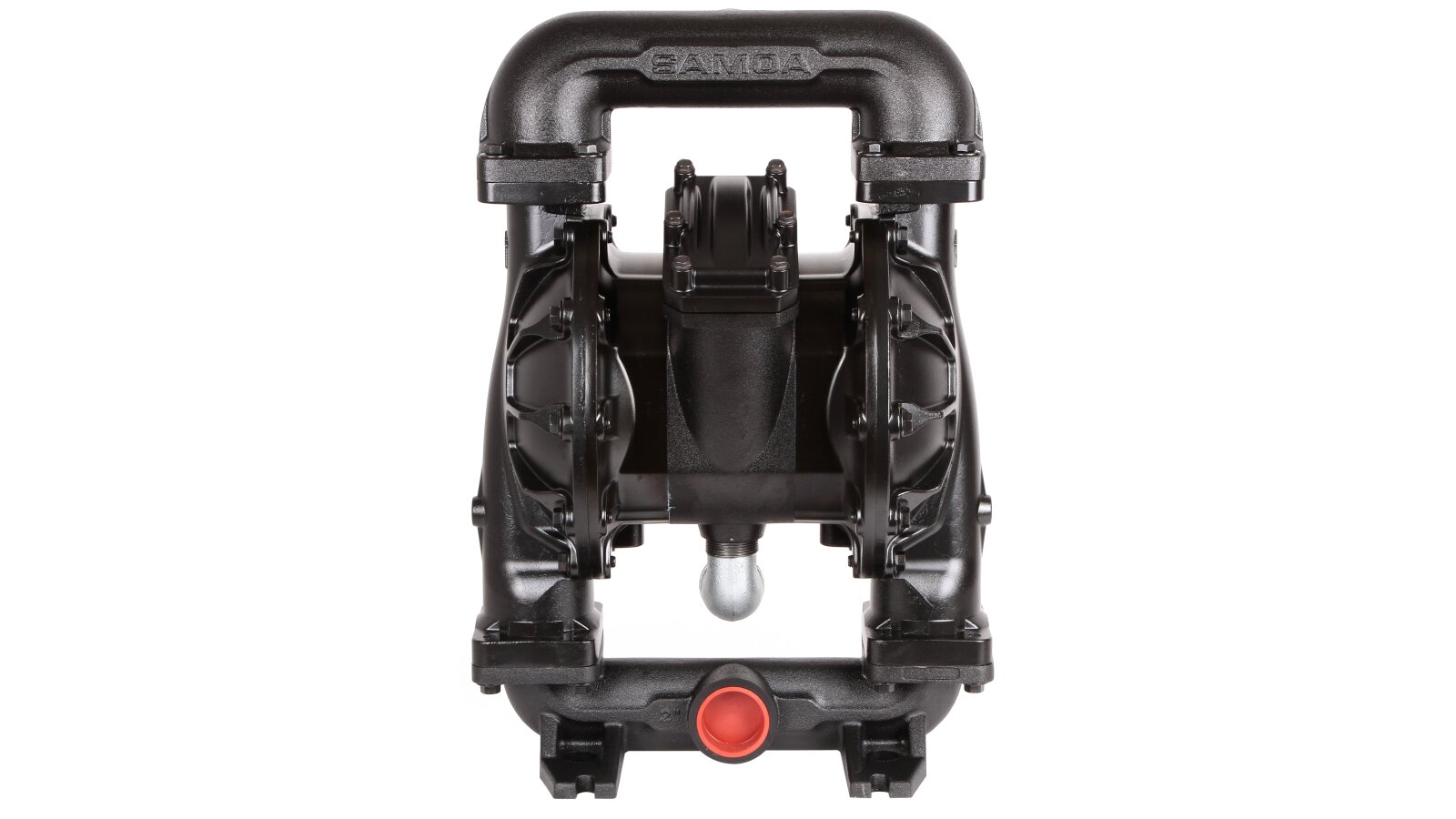

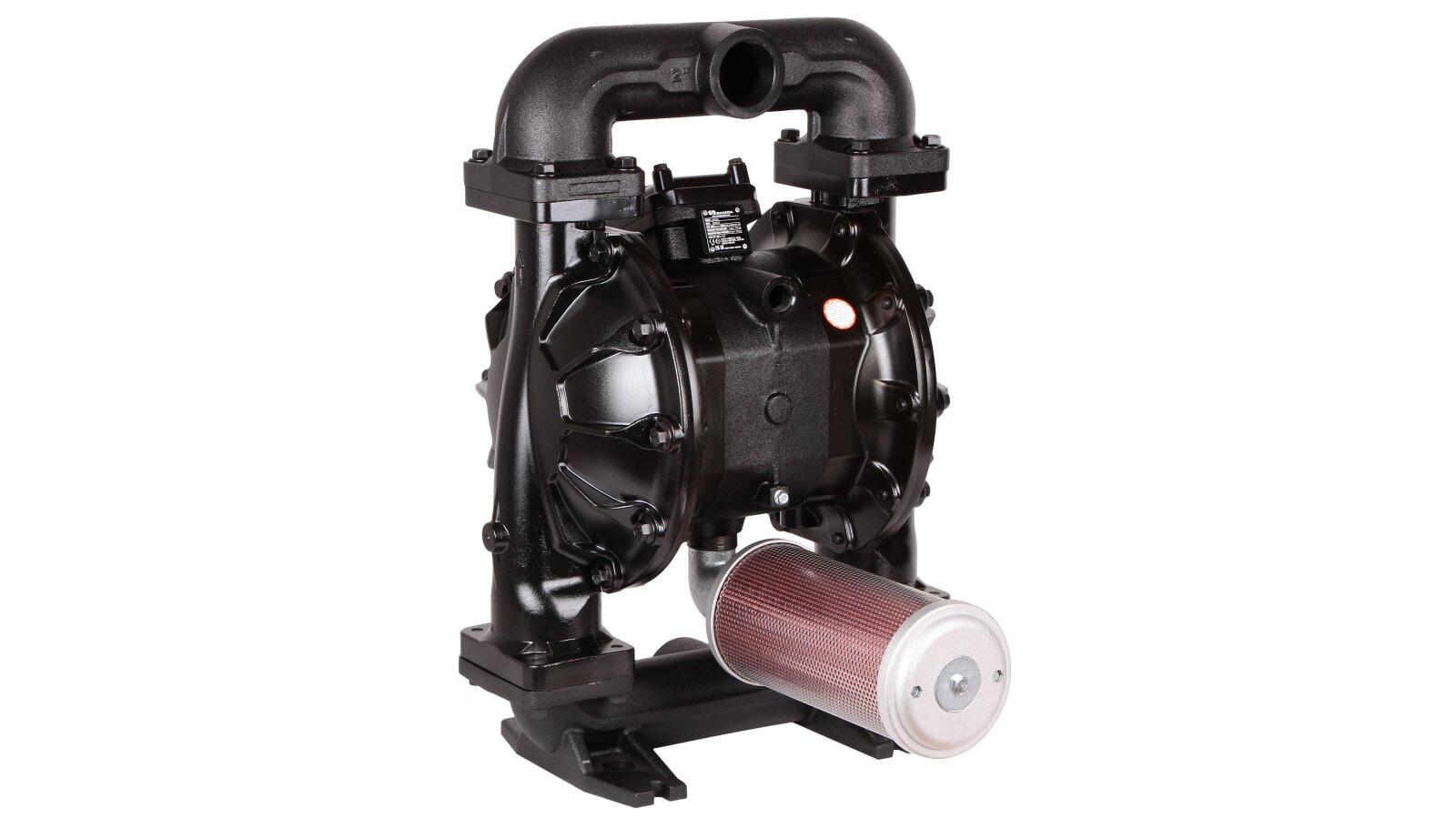

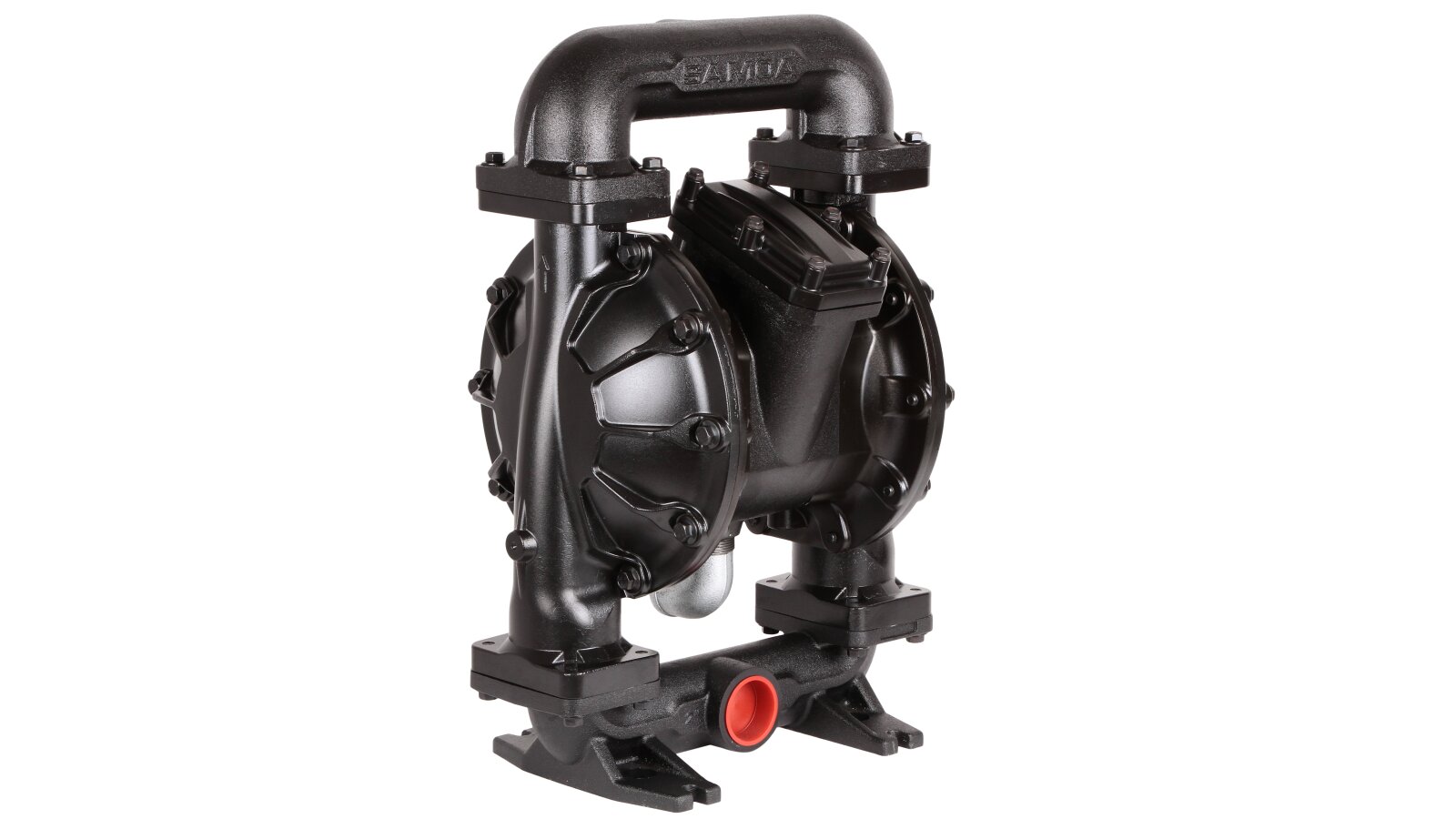

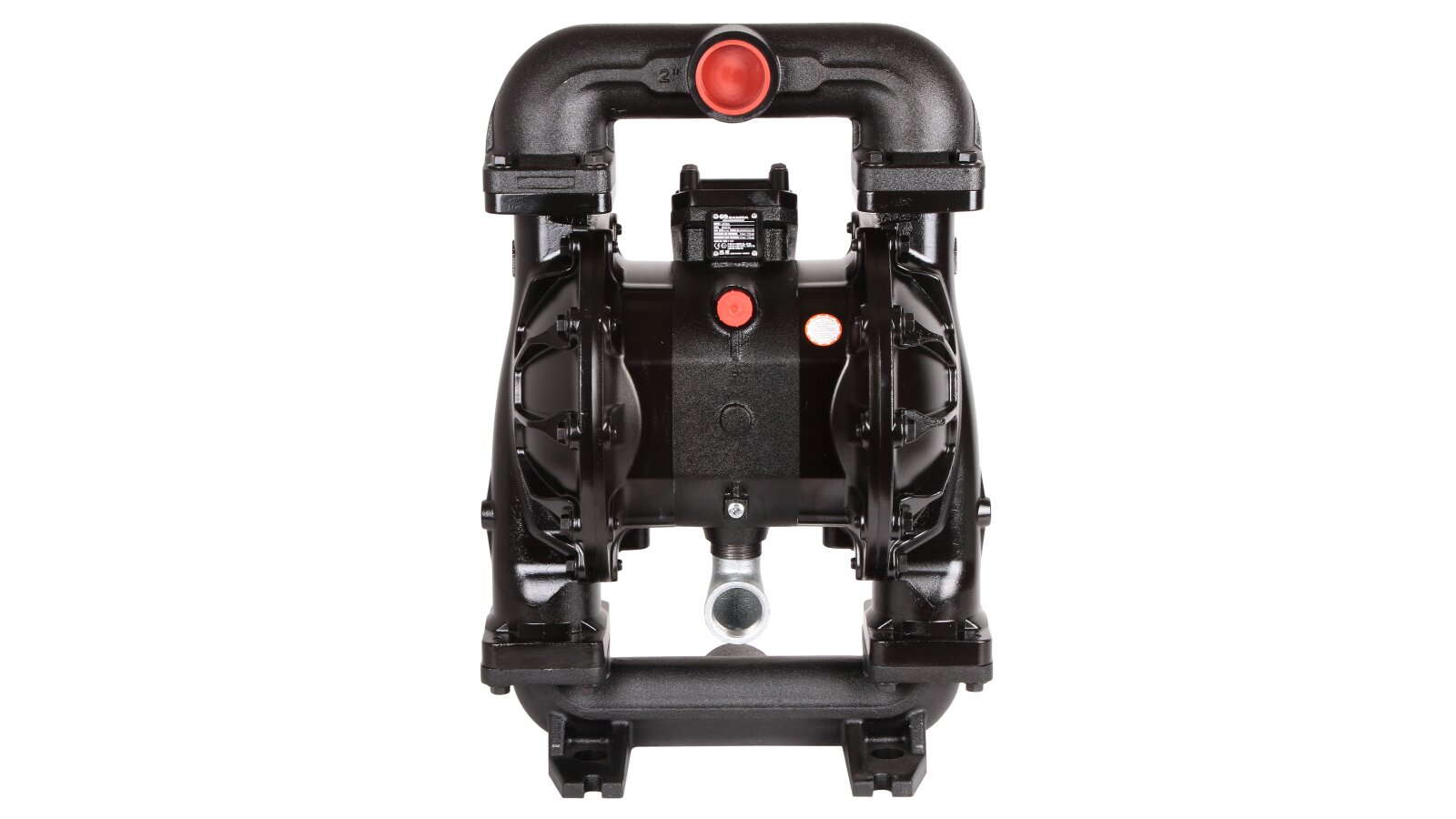

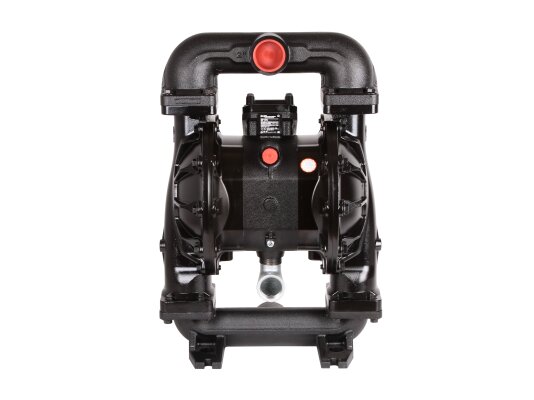

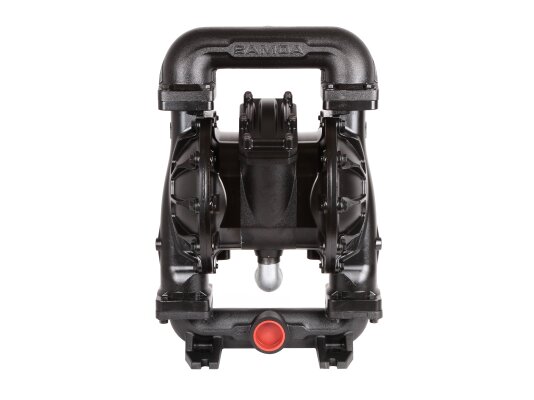

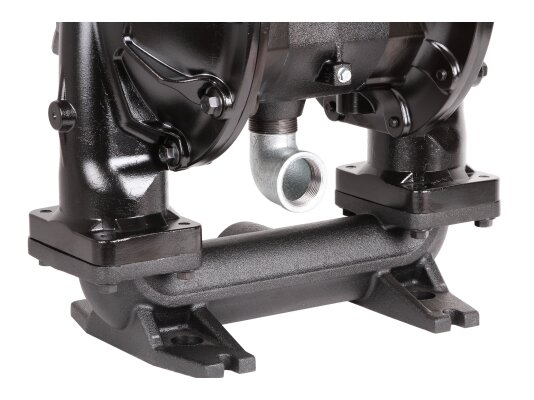

Samoa UP20A double diaphragm pump, art.: 554510.
Reciprocating positive displacement pump with pneumatic control and two working chambers. It can be installed for submerged operation, for self-priming operation. It is also possible to mount it for immersion in liquid.
Characteristics
Manufacturer Part Number: 554510Type of pumped liquid: AdBlue, diesel, oil, biodiesel fuel blend B10, biodiesel fuel blend B20, biodiesel fuel blend B5, gasoline, biodiesel, kerosenePump type: pneumaticInstallation location: into the suction line, in the main pipeline, to the tankBuilt-in coarse filter: yesRecommended liquid temperature: from 10 to 90 °CMaximum working pressure: 8 barMembrane material: high трелMaximum air pressure: 8 barScope of application: fuel, oilAir consumption at the inlet at a pressure of 7-8 bar: 80 - 110 l/minOperating pressure range: from 1.5 to 8 barNoise level: 85 dBOperating temperature range: from 0 to 70 °CMaximum performance: 650 l/minExplosion-proof design: is missingAir outlet thread: 1 1/2 inch NPT (F)Feature of the working mechanism: diaphragmaticContinuous operating time: unlimited timeCounter: missingAir intake threading: 3/4 inch NPT (F)Maximum particle size: 6.4Air inlet connection: 3/4 inch NPT (F)Suction height: 5 m - 8 mMaterial type: aluminiumOutput connection: 2" BSP (F) / 2 inch NPT (F)Input connection: 2" BSP (F) / 2 inch NPT (F)
Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication
